Brother DCP-L2512D User Manual

2-108
Confidential

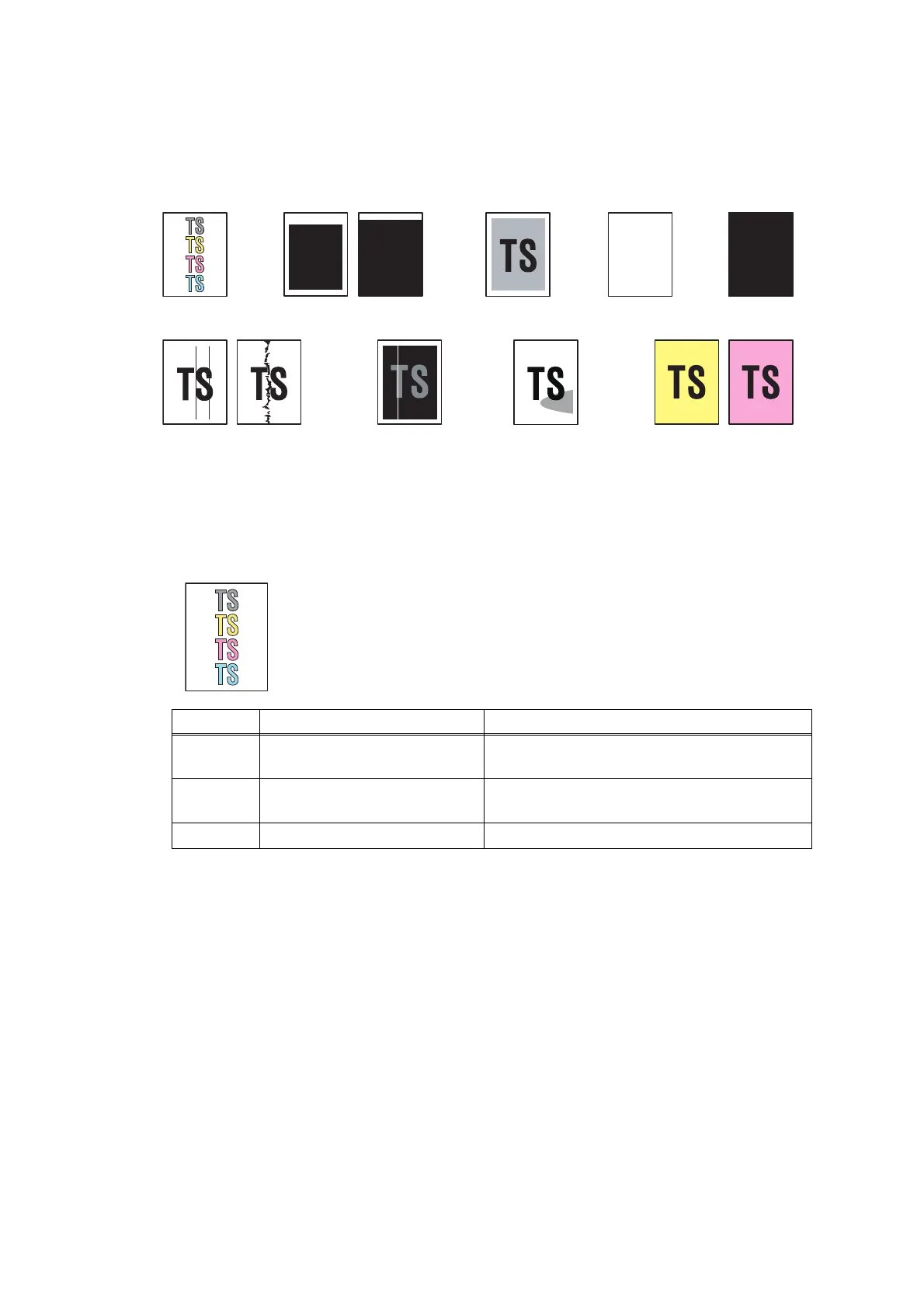

4.12 Troubleshooting for Scanning Image Defect
4.12.1Defect examples
Fig. 2-24
4.12.2Troubleshooting according to image defect
 Light
<User Check>
• Check that the contrast setting is not too light.
• Clean the scanner glass or first side/second side scanner glass strip.
• Clean the document hold.
Step Cause Remedy
1
Incorrect white level
correction data
Execute “Acquire white level data (Function
code 55)”.
2
First or second side CIS unit
failure
Replace the first or second side CIS unit.
3 Main PCB failure Replace the main PCB ASSY.
Light
(2-108)
Faulty registration
(2-109)
Dark
(2-109)
Completely blank
(2-110)
All black
(2-110)
Vertical streaks
(2-111)
White streaks
(2-111)
Fully tinged
(2-112)
Partially shaded
(2-112)

Brother DCP-L2512D Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Duplex Printing	Automatic
Scanner Type	Flatbed
Copy Resolution	Up to 600 x 600 dpi
Interface	USB 2.0
Processor	600 MHz
Memory	64 MB
Print Speed	Up to 30 ppm
Print Resolution	2400 x 600 dpi
Paper Input	250 sheets
Paper Output	100 sheets
Scan Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
