Brother DCP-L2512D User Manual

3-73
Confidential

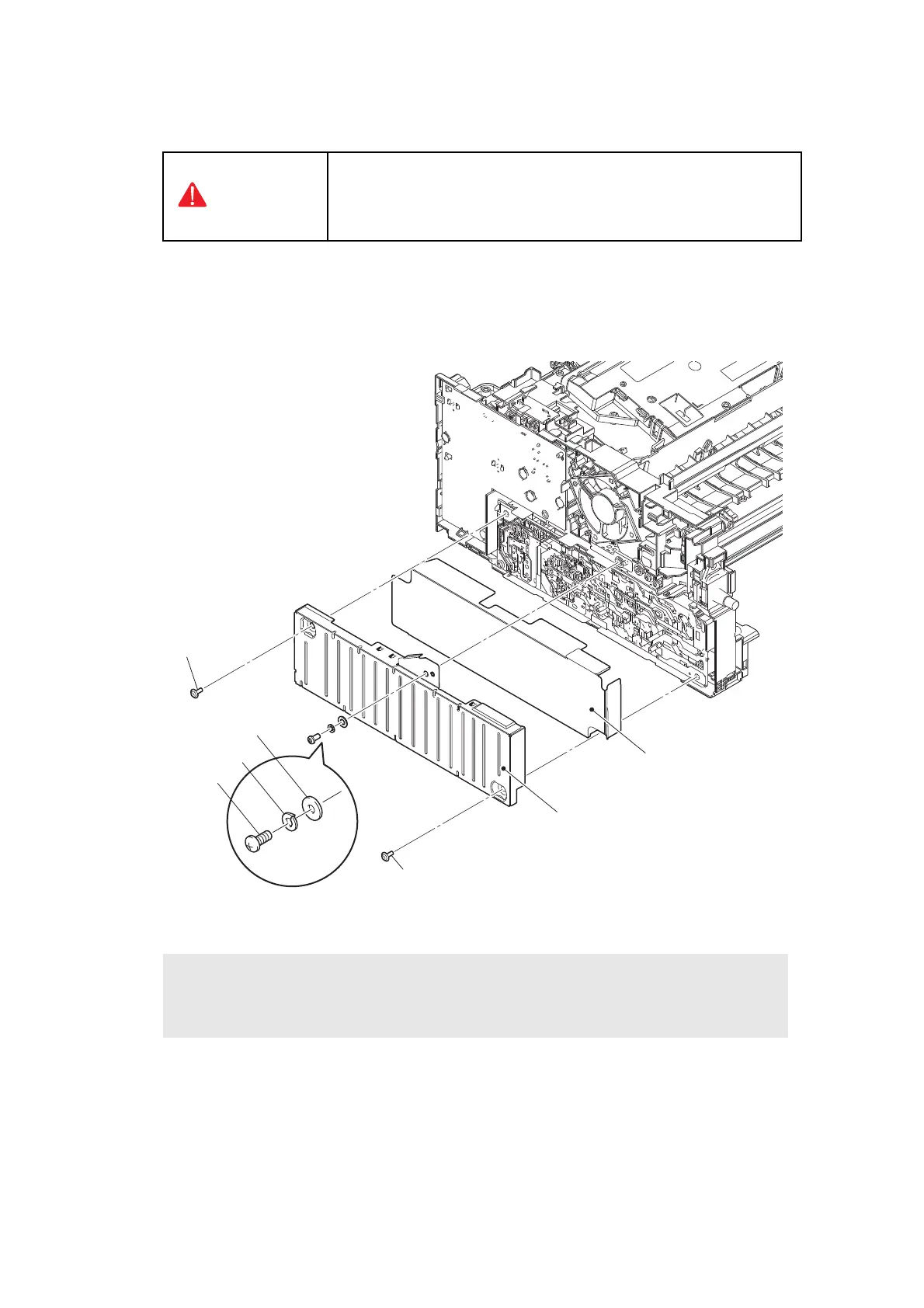

9.19 Low-voltage power supply PCB ASSY
(1) Remove the two Screw cup M3x8 (black) screws, the Screw pan M4x8 screw, the Washer
spring 2-4, and the Washer 5, and remove the LVPS shield plate cover and the LVPS
insulation sheet.
Fig. 3-68
WARNING
When removing the Low-voltage power supply, DO NOT touch it
within 3 minutes after disconnecting the AC cord as it may cause
an electric shock due to the electric charge accumulated in the
capacitor.
Assembling Note:
• Make sure to attach the LVPS insulation sheet. Failure to attach the insulation sheet
can result in fire or electrical shock.
Screw pan M4x8
Screw cup M3x8 (black)
LVPS insulation sheet
LVPS shield plate cover
Screw cup M3x8 (black)
<Back side>
Washer spring 2-4
Washer 5

Brother DCP-L2512D Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Duplex Printing	Automatic
Scanner Type	Flatbed
Copy Resolution	Up to 600 x 600 dpi
Interface	USB 2.0
Processor	600 MHz
Memory	64 MB
Print Speed	Up to 30 ppm
Print Resolution	2400 x 600 dpi
Paper Input	250 sheets
Paper Output	100 sheets
Scan Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
