9.37 Paper feed roller ASSY / Paper feed sensor PCB ASSY
(1) Release each Hook of the Paper feed sensor cover to remove the Paper feed sensor
cover.
(2) Remove the Paper feed actuator spring from the Hook of the Paper feed actuator and the
Hook of the Paper feed frame ASSY.
(3) Release the Hook of the Separation R shaft bearing to remove the Separation R shaft and
the Paper feed actuator.
(4) Release each Hook of the two Feed roller bushings, and remove the Paper feed roller
ASSY from the Paper feed frame ASSY in the direction of the arrow. Remove the two Feed
roller bushings from the Paper feed roller ASSY.
(5) Release the Hook A to remove the Paper feed sensor PCB ASSY. Release the Paper feed
sensor harness from the securing fixtures.

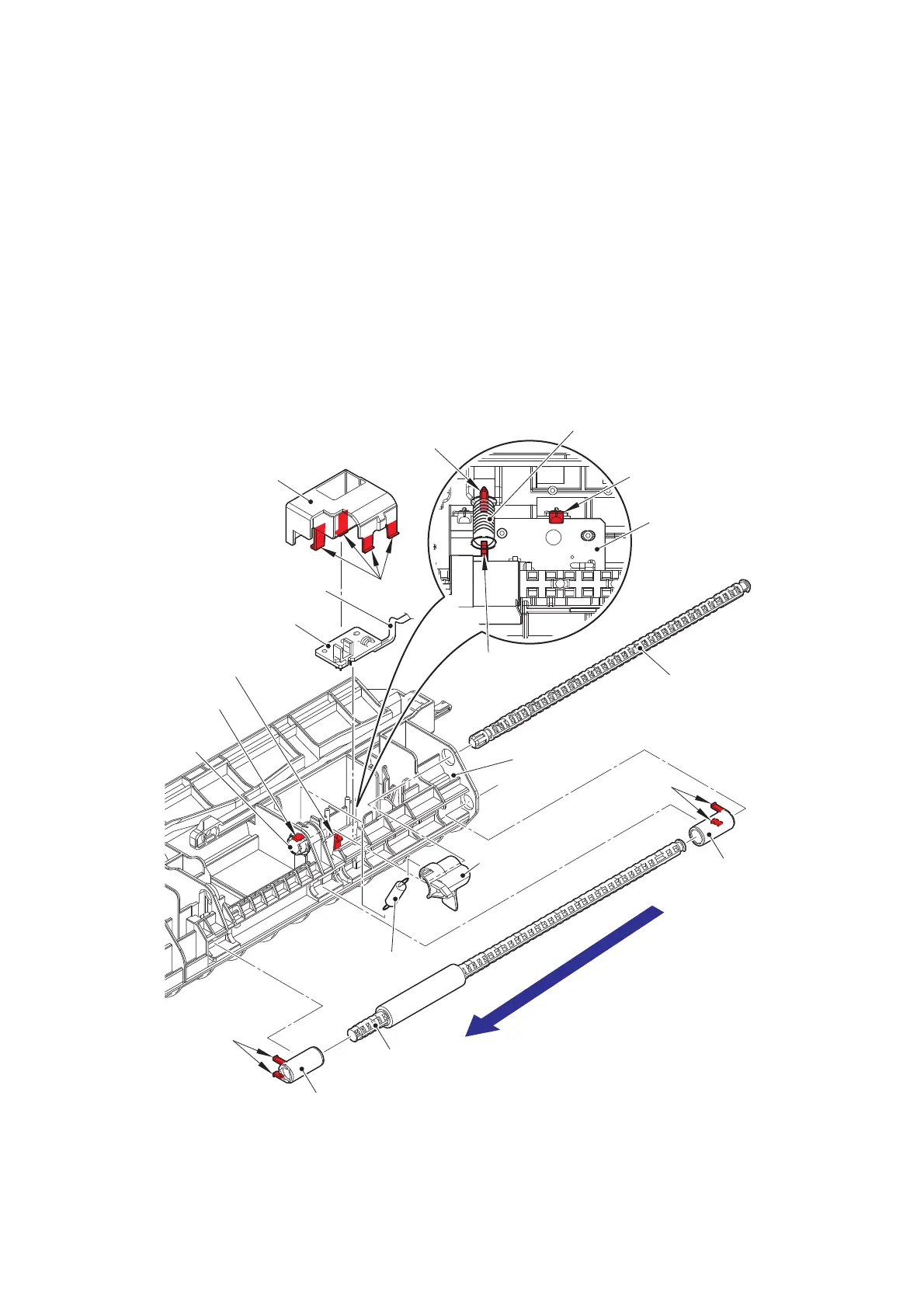

Fig. 3-104
Paper feed actuator spring
Hook A
Paper feed sensor
PCB ASSY
Separation R shaft
Feed roller bushing
Paper feed roller ASSY
Feed roller bushing
Paper feed sensor cover
Hooks
Paper feed sensor harness
Paper feed sensor PCB ASSY
Hook
Paper feed actuator spring
Paper feed
actuator
Hooks
Hooks
Hook A
Separation R
shaft bearing
Hook of Paper feed frame ASSY
Hook of Paper feed
actuator
Paper feed
frame ASSY

Brother DCP-L2512D Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Duplex Printing	Automatic
Scanner Type	Flatbed
Copy Resolution	Up to 600 x 600 dpi
Interface	USB 2.0
Processor	600 MHz
Memory	64 MB
Print Speed	Up to 30 ppm
Print Resolution	2400 x 600 dpi
Paper Input	250 sheets
Paper Output	100 sheets
Scan Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
