Brother DCP-L2512D User Manual

3-58
Confidential
9.14 Panel unit (For Non-touch panel models)
9.14.1 Panel unit
(1) Remove the four Taptite cup B M3x10 screws.
(2) Release each Hook to remove the Panel unit. Disconnect the Panel flat cable from the
Panel PCB ASSY.

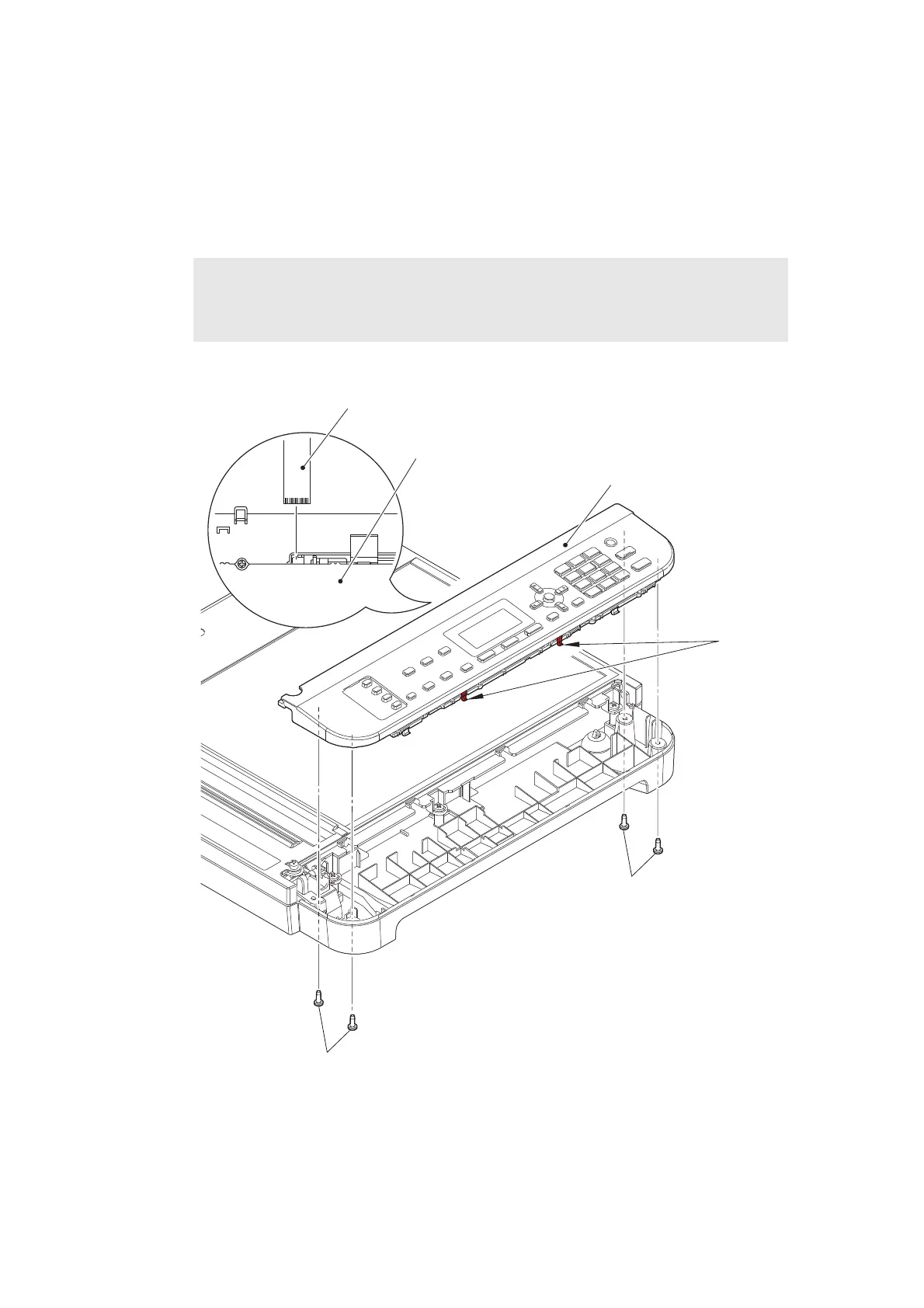

Fig. 3-50
Harness routing: Refer to “3. Document scanner unit”.
Note:
• When removing the Panel unit, DO NOT pull the Panel unit strongly because it is
connected to the Panel flat cable.
Taptite cup B M3x10
Taptite cup B M3x10
Hooks
Panel unit
Panel PCB ASSY
Panel flat cable

Brother DCP-L2512D Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Duplex Printing	Automatic
Scanner Type	Flatbed
Copy Resolution	Up to 600 x 600 dpi
Interface	USB 2.0
Processor	600 MHz
Memory	64 MB
Print Speed	Up to 30 ppm
Print Resolution	2400 x 600 dpi
Paper Input	250 sheets
Paper Output	100 sheets
Scan Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
