Brother DCP-L2512D User Manual

3-81
Confidential
9.24 Laser unit flat cable / Laser unit
(1) Disconnect the Laser unit flat cable from the Main PCB ASSY and the Laser unit, and
release it from the securing fixtures.
(2) Disconnect the Polygon motor harness from the Main PCB ASSY, and release it from the
securing fixtures.
(3) Remove the four Taptite cup S M3x8 SR screws to remove the Laser unit.

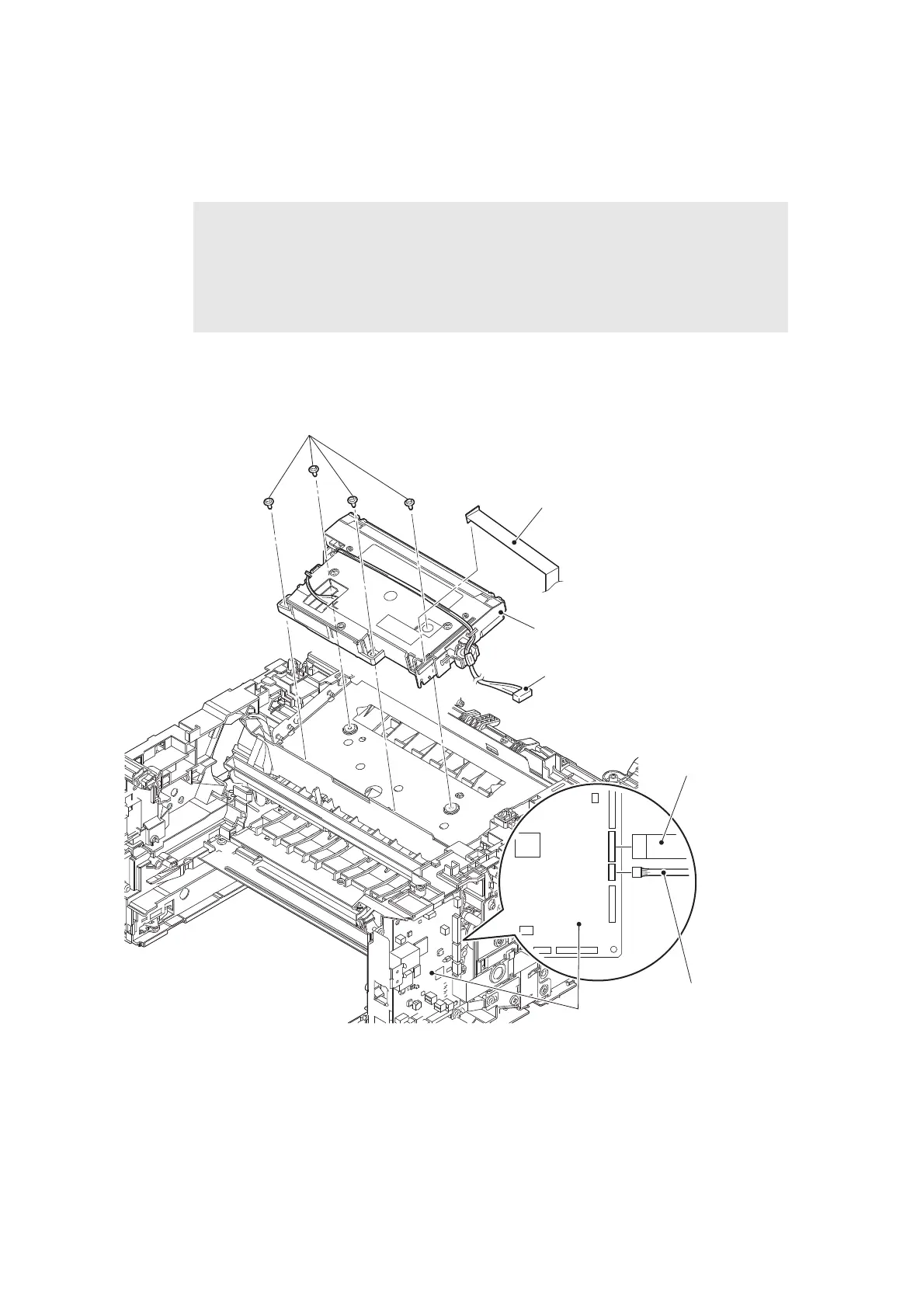

Fig. 3-76
Harness routing: Refer to “9. Top side of the machine”, “10. Frame L unit (Manual feed
models)”.
Note:
• After disconnecting flat cables, check that each cable is not damaged at its end or
short-circuited.
• When connecting flat cables, do not insert them at an angle. After insertion, check
that the cables are not at an angle.
Taptite cup S M3x8 SR
Main PCB ASSY
Laser unit
<Back side>
Laser unit flat cable
Polygon motor harness
Laser unit flat cable
Polygon motor harness

Brother DCP-L2512D Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Duplex Printing	Automatic
Scanner Type	Flatbed
Copy Resolution	Up to 600 x 600 dpi
Interface	USB 2.0
Processor	600 MHz
Memory	64 MB
Print Speed	Up to 30 ppm
Print Resolution	2400 x 600 dpi
Paper Input	250 sheets
Paper Output	100 sheets
Scan Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
