Brother DCP-L2512D User Manual

3-82
Confidential

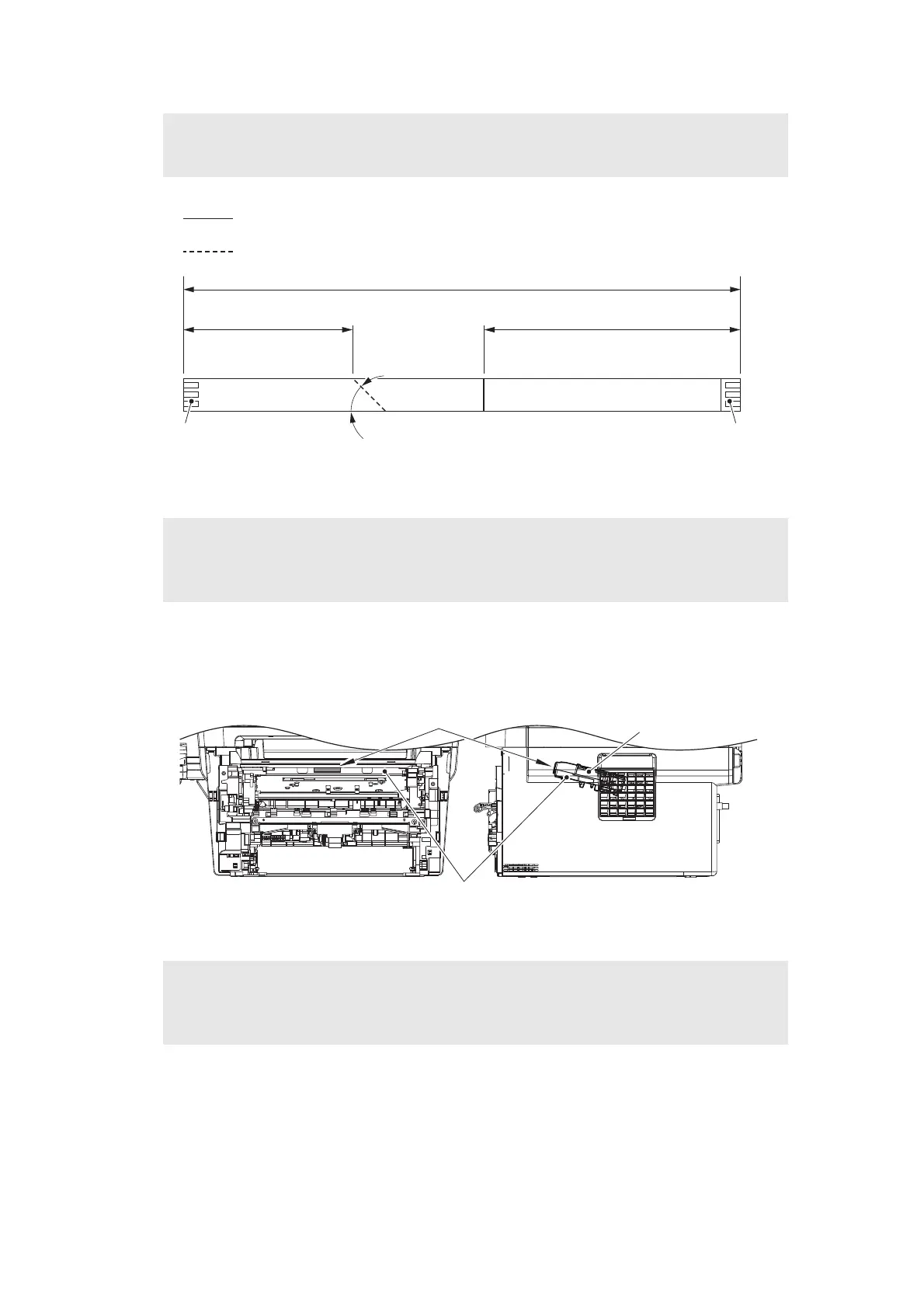

Fig. 3-77
<How to identify the type of Laser unit and the position of the laser serial number label>
Fig. 3-78
Assembling Note:
• Fold the Laser unit flat cable at the positions described below.
Assembling Note:
• After the replacement, refer to “3. IF YOU REPLACE THE LASER UNIT” in Chapter 4
to enter the adjusted value of the Laser unit.
Assembling Note:
• Attach the laser serial number label as shown in the figure above (on the Scanner
plate) after replacing the Laser unit.
45°
<Main
PCB side>
71±1 108±1
234±5
Mountain fold
Valley fold
<Laser
unit side>
Electrode Electrode
Laser unit
Laser serial number label
Scanner plate

Brother DCP-L2512D Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Duplex Printing	Automatic
Scanner Type	Flatbed
Copy Resolution	Up to 600 x 600 dpi
Interface	USB 2.0
Processor	600 MHz
Memory	64 MB
Print Speed	Up to 30 ppm
Print Resolution	2400 x 600 dpi
Paper Input	250 sheets
Paper Output	100 sheets
Scan Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
