Brother DCP-L2512D User Manual

3-100
Confidential
9.36 Registration front/rear actuator holder ASSY
(1) Release the Hook part of the Under R FG wire from the LVPS shield plate.
(2) Raise the Laser R FG plate slightly to remove it from the Pin.
(3) Remove the Taptite cup S M3x8 SR screw and the Taptite bind B M4x12 screw, pull out the
right side of the LVPS shield plate in the direction of the arrow A to remove it from the Pin.
And then pull it out in the direction of the arrow B to remove it from the machine.

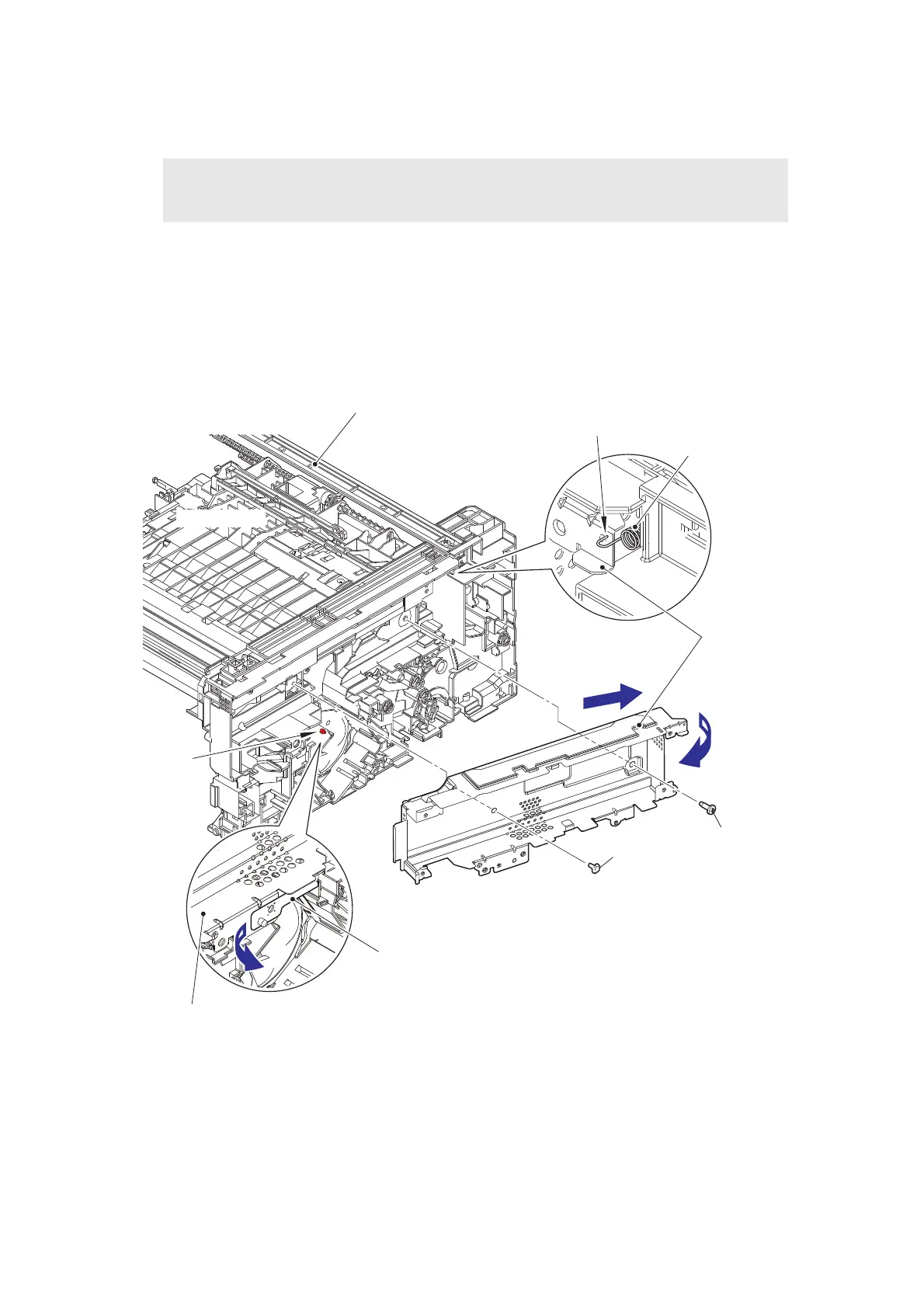

Fig. 3-100
Note:
• As the Under bar is easy to bend, be careful to handle it.
Under R FG wire
Taptite cup S
M3x8 SR
LVPS shield
plate
Taptite bind B
M4x12
Laser R FG plate
Hook part
<Back side>
<Rear view of
Frame R>
A
B
Under bar
<Bottom side>
Pin
LVPS shield plate

Brother DCP-L2512D Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Duplex Printing	Automatic
Scanner Type	Flatbed
Copy Resolution	Up to 600 x 600 dpi
Interface	USB 2.0
Processor	600 MHz
Memory	64 MB
Print Speed	Up to 30 ppm
Print Resolution	2400 x 600 dpi
Paper Input	250 sheets
Paper Output	100 sheets
Scan Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
