3-14

Confidential

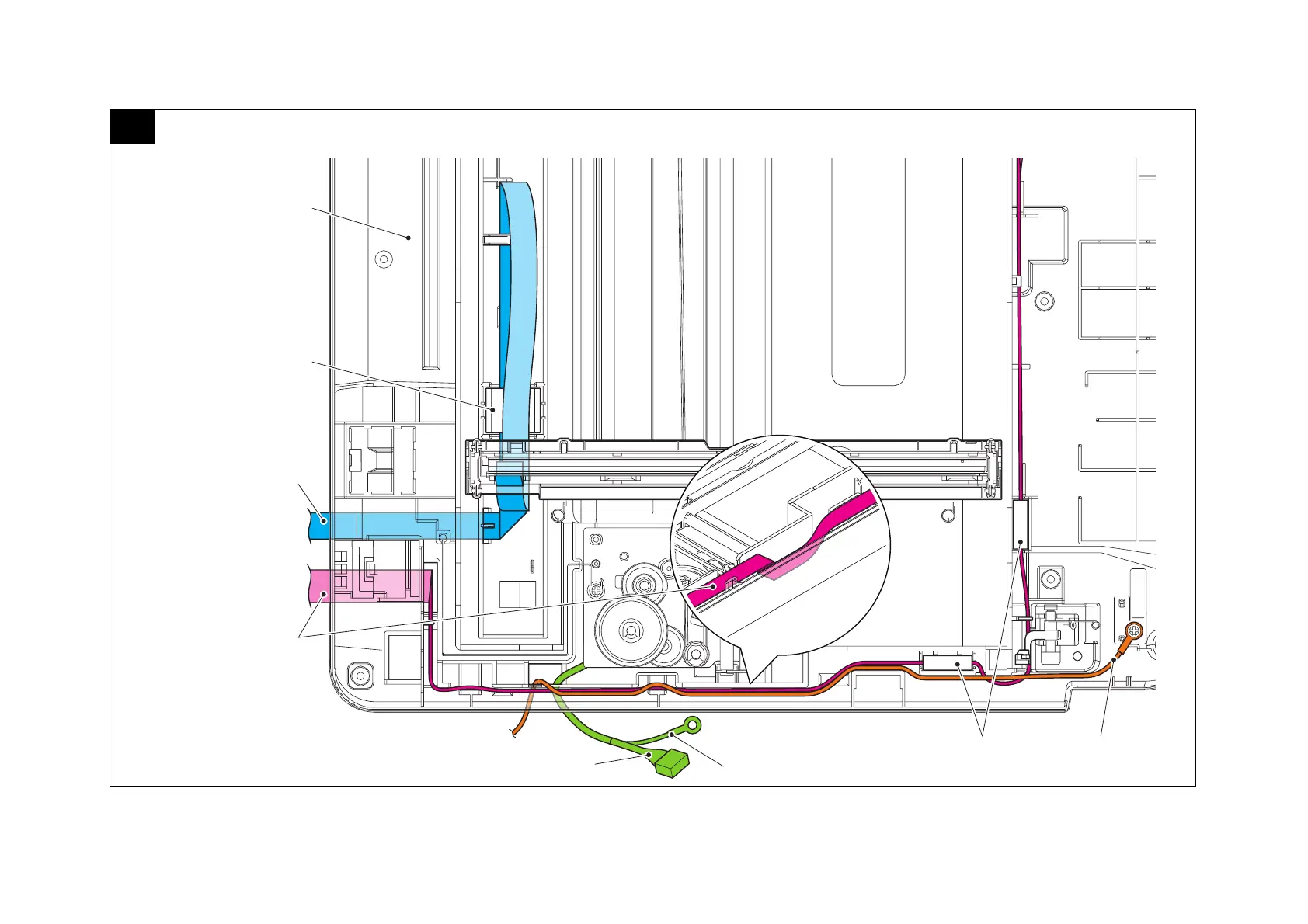

6 First side CIS unit, Panel

Harness colors are subject to change for some reason.

Flat core

Flat core

First side CIS flat cable

Panel flat cable

FB ground harness (BK)

Document scanner motor harness (WH)

Document scanner

bottom cover ASSY

Panel ground harness

(BK)
