3-20

Confidential

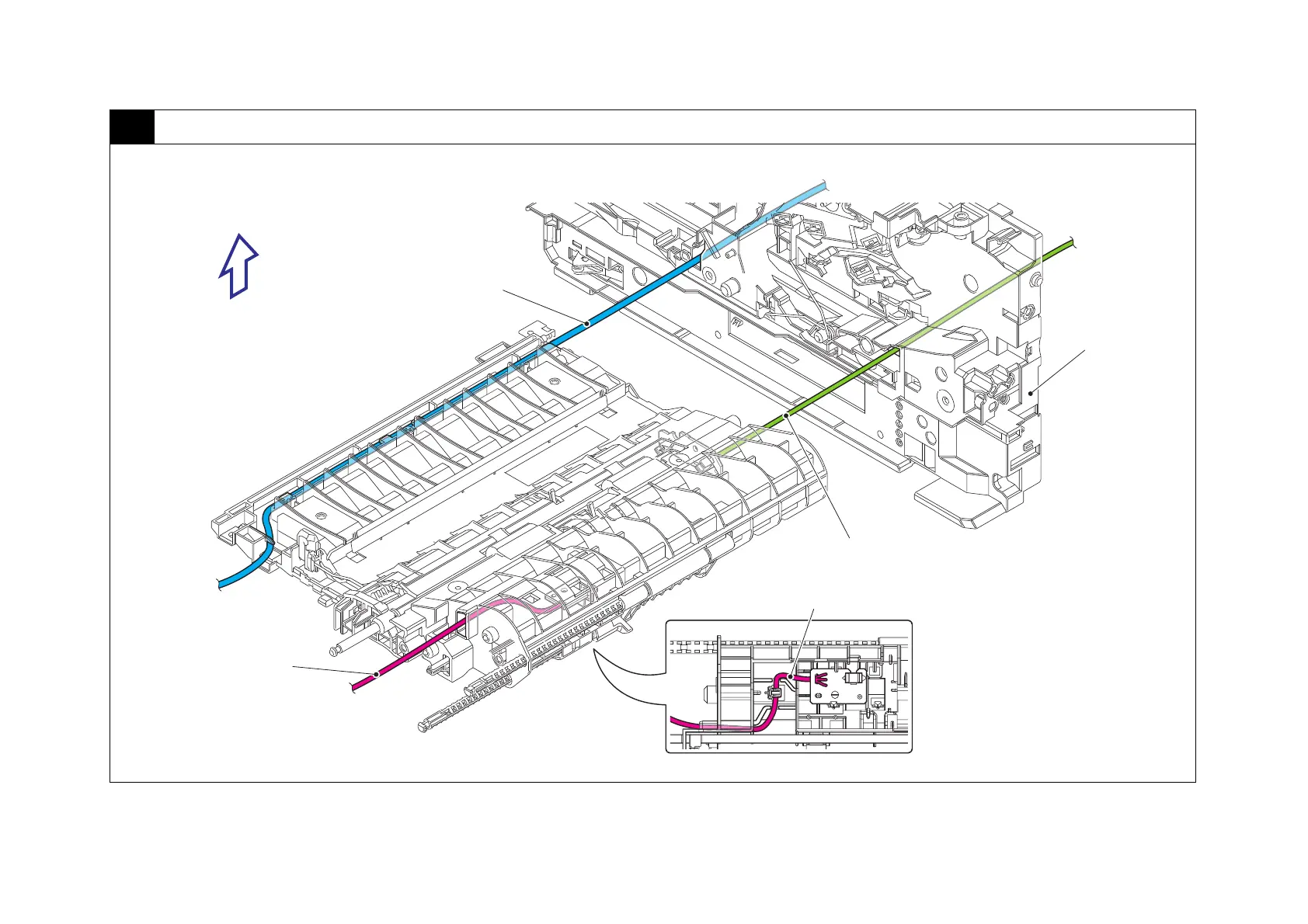

12 Top side of the registration chute

Harness colors are subject to change for some reason.

Registration front/rear sensor harness (GR, WH, BL, RD)

Paper feed sensor harness

(RD, BL, WH)

LVPS harness (WH, BK)

Top side

Frame R unit

Paper feed sensor harness

(RD, BL, WH)
