Brother DCP-L2512D User Manual

3-77
Confidential
Fig. 3-72

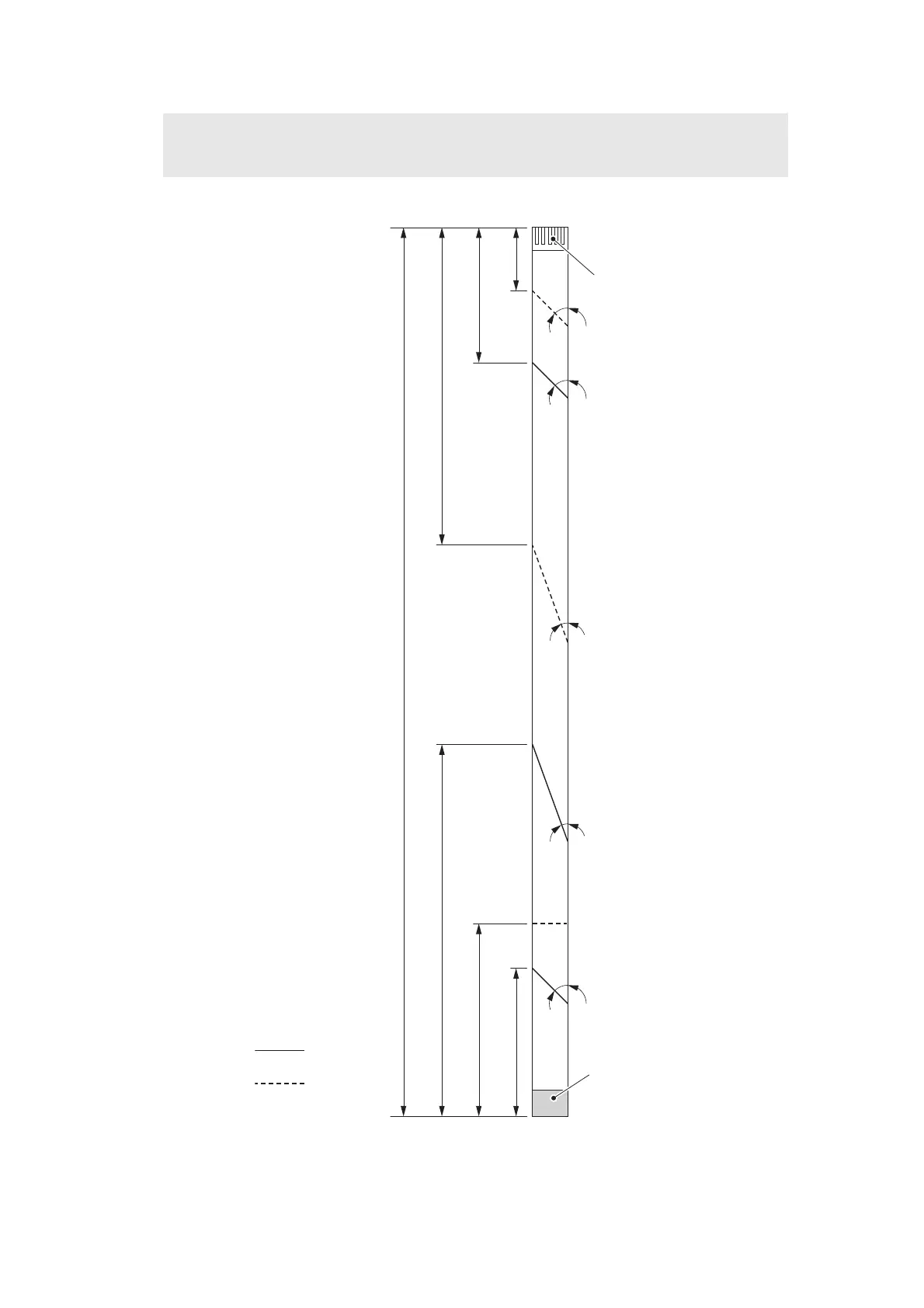

Assembling Note:
• Fold the HVPS flat cable at the positions described below.
Electrode
20°
Mountain fold
Valley fold
Reinforcing tape
45°
20°
45°
<Main PCB side>
<High-voltage power supply PCB side>
45°
38±1
81±1
191±1
536±10
224±1
89±1
116±1

Brother DCP-L2512D Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Duplex Printing	Automatic
Scanner Type	Flatbed
Copy Resolution	Up to 600 x 600 dpi
Interface	USB 2.0
Processor	600 MHz
Memory	64 MB
Print Speed	Up to 30 ppm
Print Resolution	2400 x 600 dpi
Paper Input	250 sheets
Paper Output	100 sheets
Scan Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
