HL-5130/5140/5150D/5150DN Service Manual
4-3
3. DISASSEMBLY PROCEDURE
3.1 AC Cord
(1) Disconnect the AC cord from the printer.

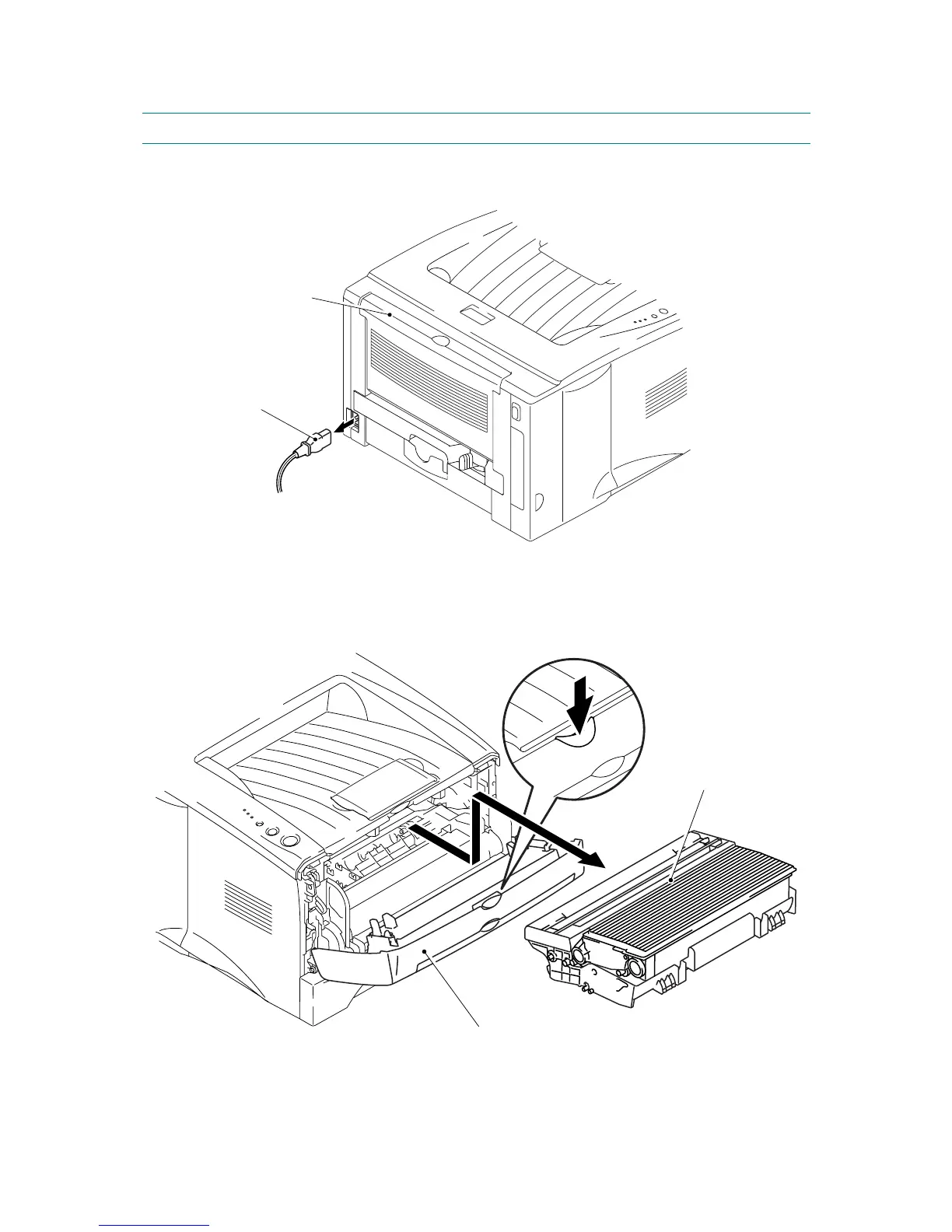

Fig. 4-1
3.2 Drum Unit
(1) Open the front cover and remove the drum unit.
Fig. 4-2
A
C cord
Printer
Drum unit
Front cover
