HL-5130/5140/5150D/5150DN Service Manual
4-41

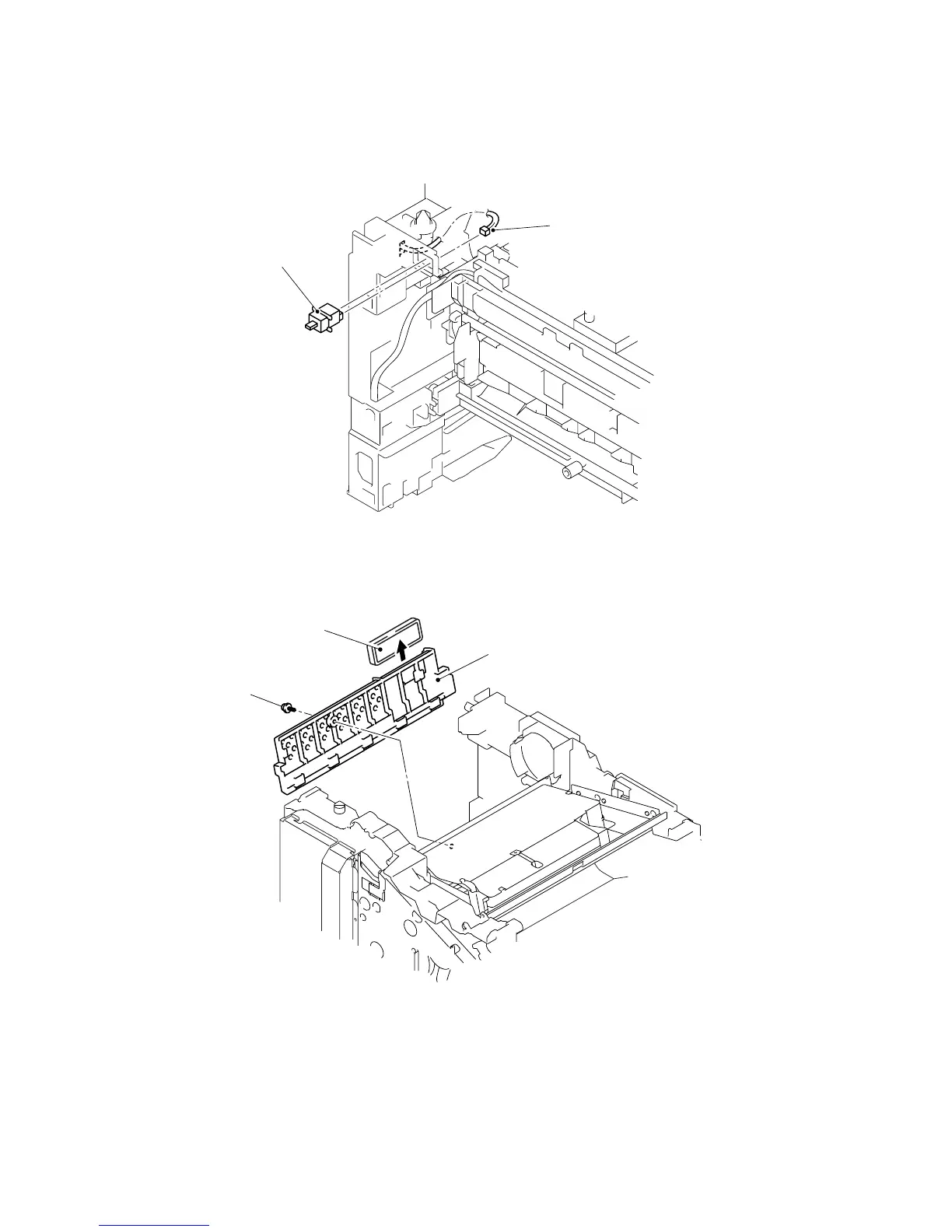

3.15 Rear Cover Sensor (HL-5150D/5170DN)
(1) Disconnect the connector, and then remove the rear cover sensor.

Fig. 4-72
3.16 Laser Unit
(1) Remove the filter, and then remove the cup S M3x8 Taptite screw and the air duct.
Fig. 4-73
Rear cover sensor
Connector
Filter
A
ir duct
Taptite, cup S M3x6
