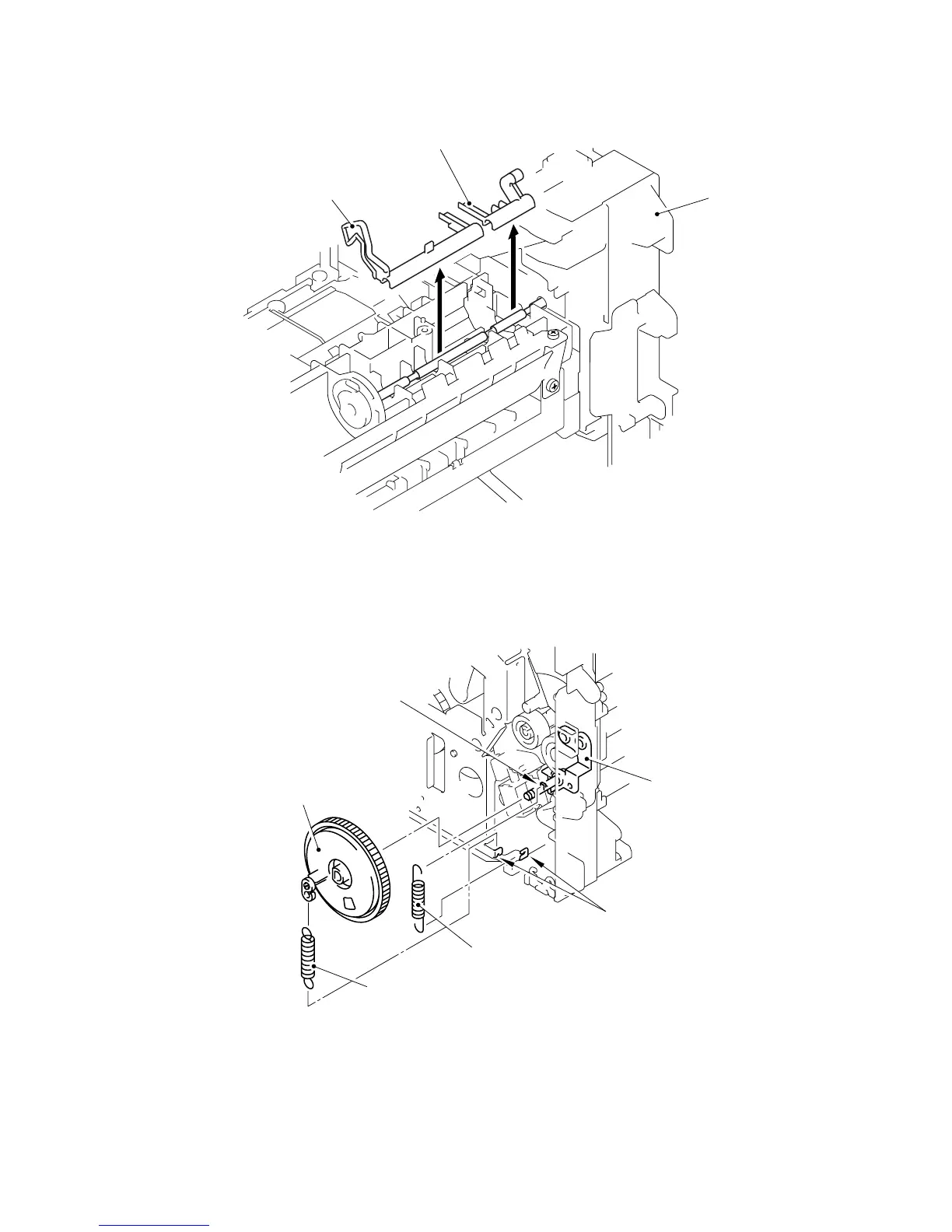

(6) Remove the PE actuator and the CA actuator from the frame.
Fig. 4-89
(7) Remove the spring, extension P/R from the gear 63P/R.
(8) Remove the gear 63P/R.
(9) Remove the ground wire from the conductor bearing.
Fig. 4-90
Gear 63P/R
Spring, extension P/R
Ground wire
PE actuator
CA actuator
Frame
Hooks
Conductor Bearing
Hooks
