3-28

Confidential

 Top cover ASSY <LED models>

(5) Release each Hook to remove the Panel PCB ASSY from the Top cover ASSY.

Release the Panel flat cable from the securing fixtures.

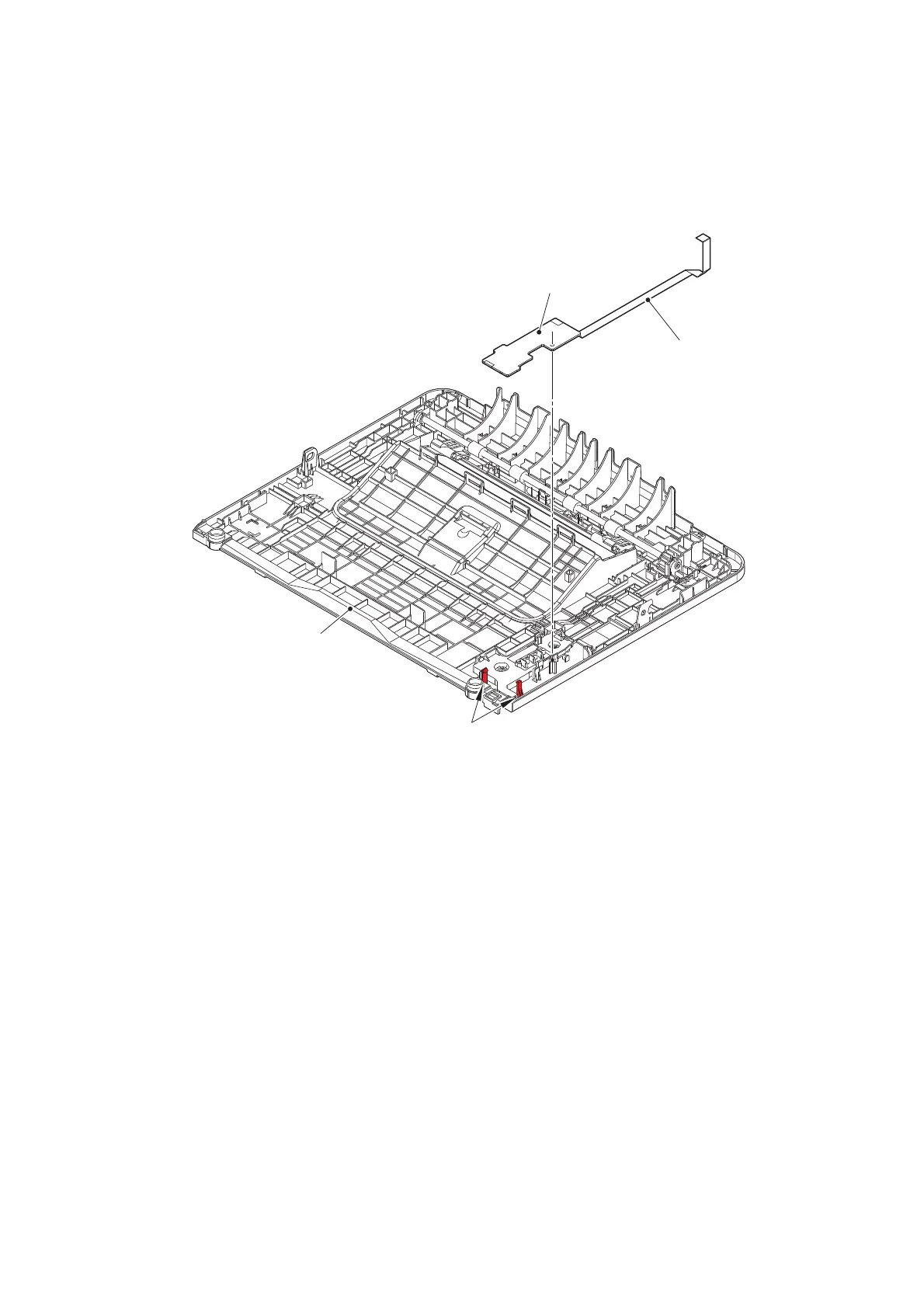

Fig. 3-20

Harness routing: Refer to “1. Top cover ASSY”.

Panel flat cable

Panel PCB ASSY

Top cover ASSY

Hooks
