Top cover ASSY <LCD models>
(5) Disconnect the LCD flat cable from the LCD PCB ASSY.
(6) Release each Hook to remove the LCD PCB ASSY from the Top cover ASSY.
Release the Panel flat cable from the securing fixtures.

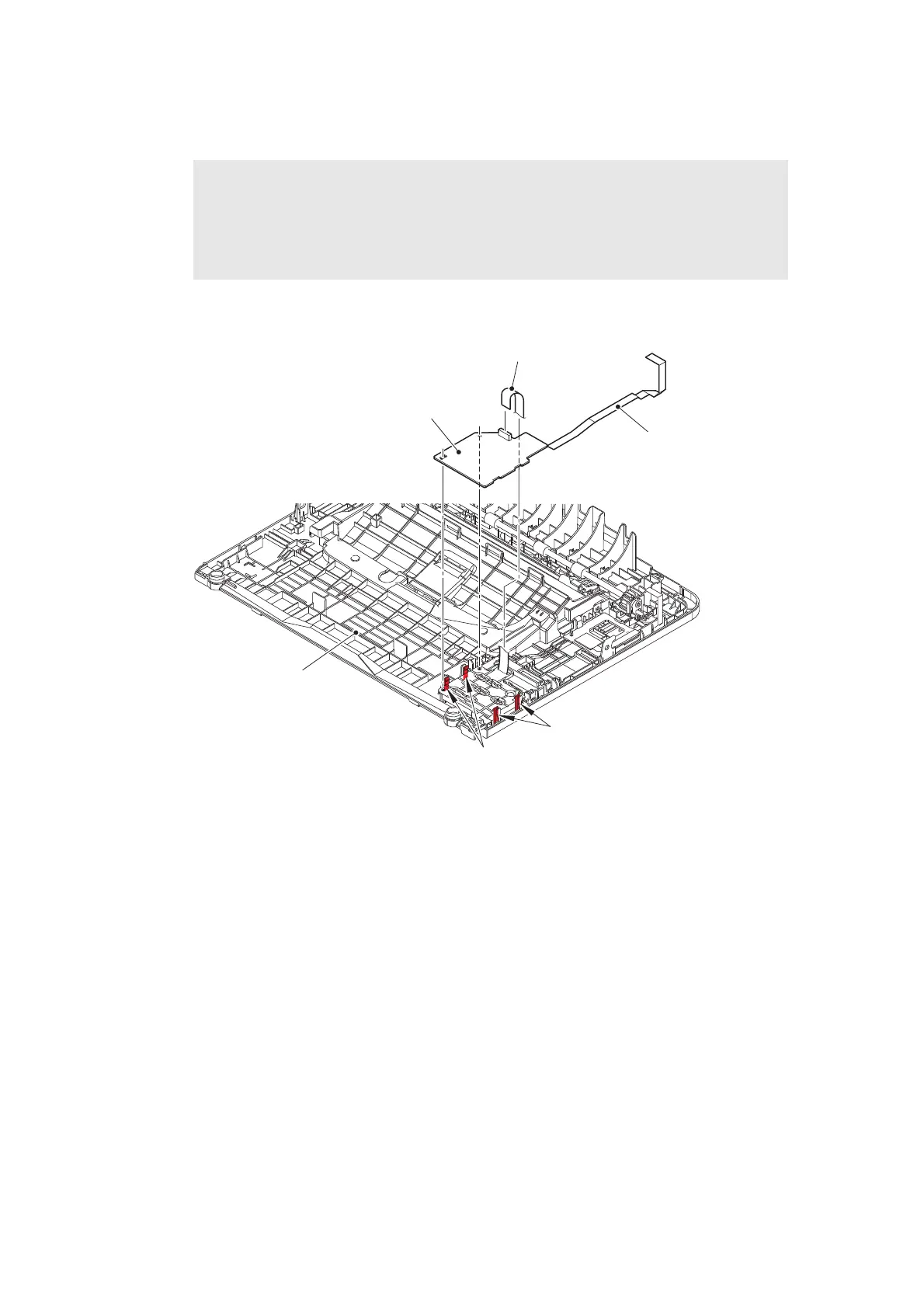

Fig. 3-21
Harness routing: Refer to “1. Top cover ASSY”.
Note:
• After disconnecting flat cables, check that each cable is not damaged at its end or
short-circuited.
• When connecting flat cables, do not insert them at an angle. After insertion, check
that the cables are not at an angle.
Panel flat cable
LCD flat cable
Top cover ASSY
LCD PCB ASSY
Hooks
Hooks
<Bottom side of Top cover ASSY>
