3-30

Confidential

(7) Remove the Rubber key from the Top cover ASSY.

(8) Release each Hook A to remove the LCD cover from the Top cover ASSY.

(9) Release the Hook B to remove the LCD ASSY from the LCD cover.

(10) Release the Hook C to remove the NFC PCB ASSY from the Top cover ASSY. (Only for

models with NFC)

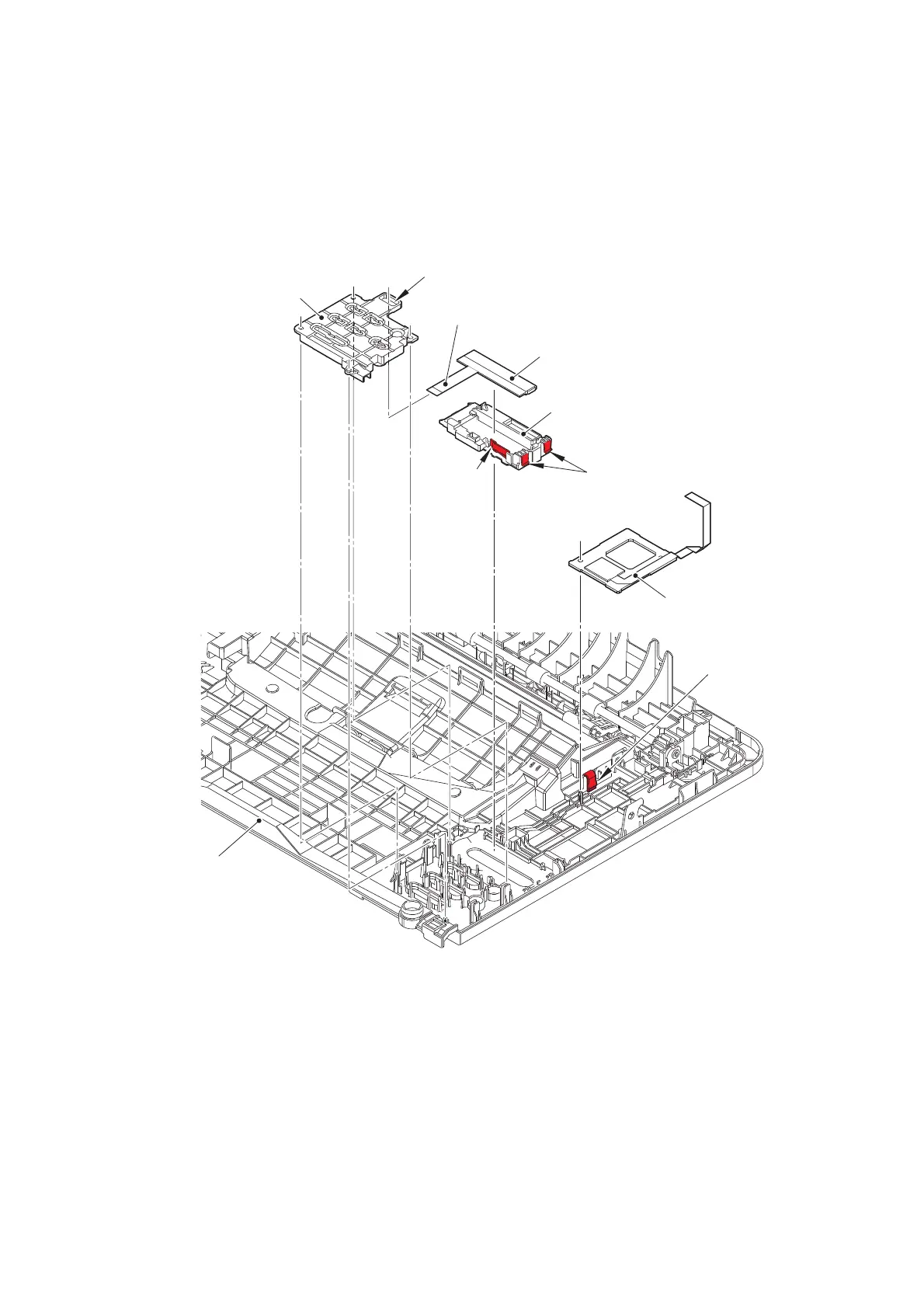

Fig. 3-22

LCD cover

Hole

Top cover ASSY

Hooks A

Hook B

LCD ASSY

LCD flat cable

Rubber key

NFC PCB ASSY

(Only for models

with NFC)

Hook C
