3-8
Confidential

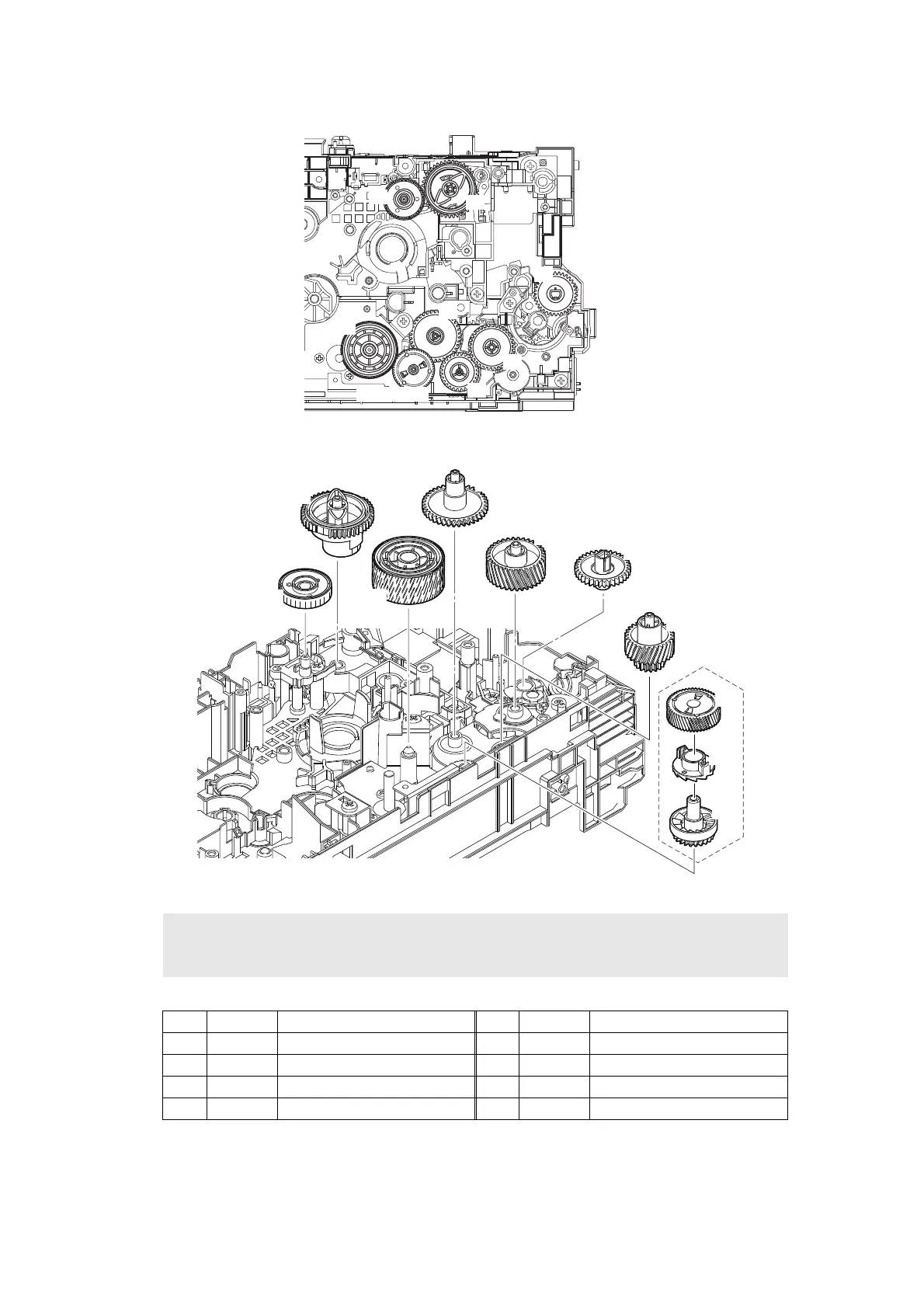

<Layout view>
Fig. 3-7
<Development view>
Fig. 3-8
<Name of gears>
* These parts are subject to change without notice.
Note:
• When handling gears, make sure that frame L faces up. Otherwise all gears come off.
14 D00EGI Gear toner box idle 32 19 D00CXT Gear 23R PF
15 D00CUB Sector gear toner box 20 D00AK9 Gear 38L PF
16 D00AM4 Gear 68R drum idle 21 D00AK8 Gear 28R/18 PF
17 D00AKA Gear 50L PF 22 D00AK7 Gear 34L PF
18 D00CXU Clutch PF 23 LY9088 Feeder gear 34
17,18,19
16
15
14
20
21
22
23
17
16
15
14
18
19
20
21
23
22
