9.6 Side cover R

(1) Remove the Taptite bind B M4x12 screw.

(2) Release the Hooks A, B, and the Hook C on the Side cover R in order of the arrow A to C,

and remove the Side cover R.

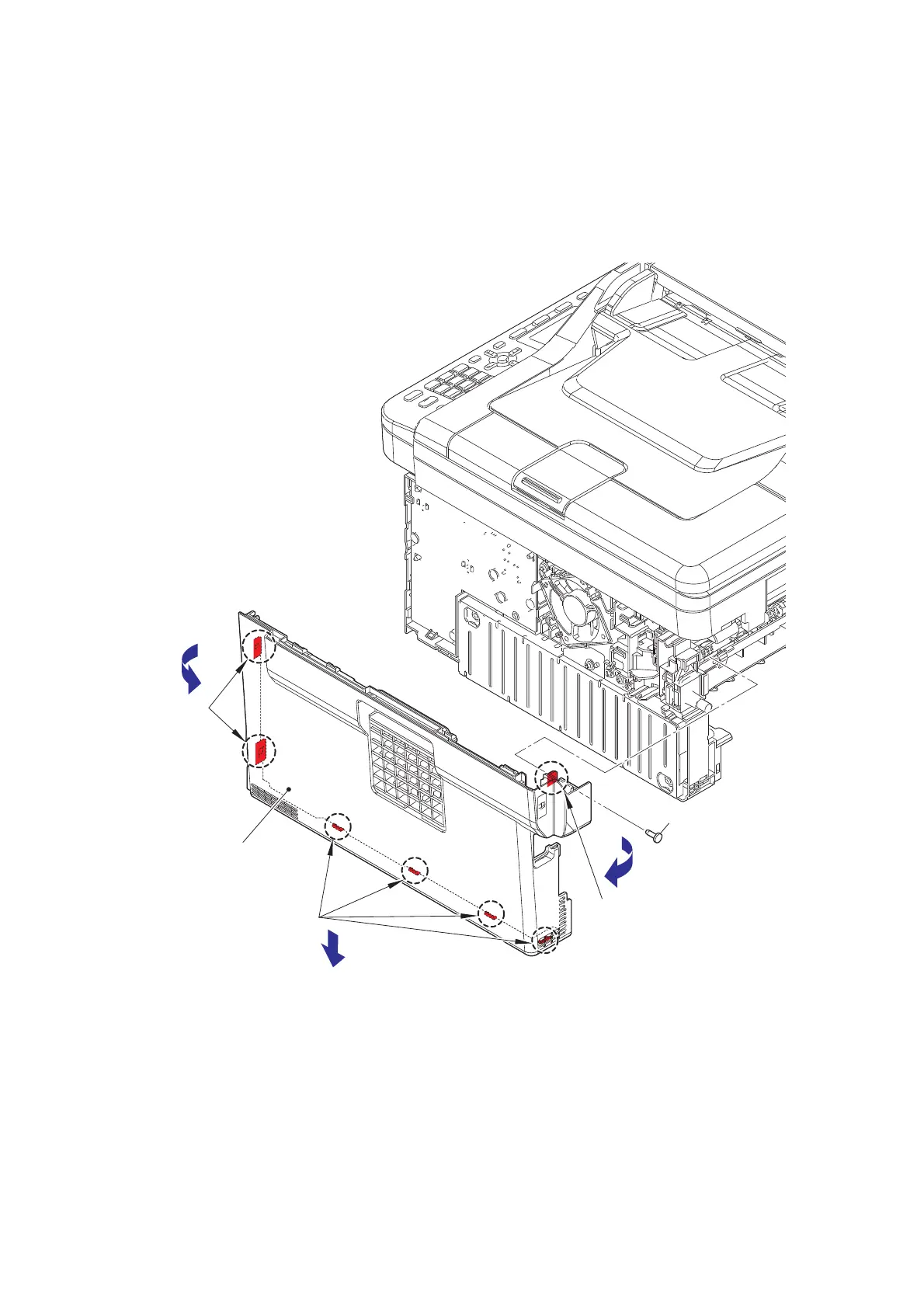

Fig. 3-18

Hook C

Hooks B

Side cover R

Hooks A

Taptite bind B M4x12
