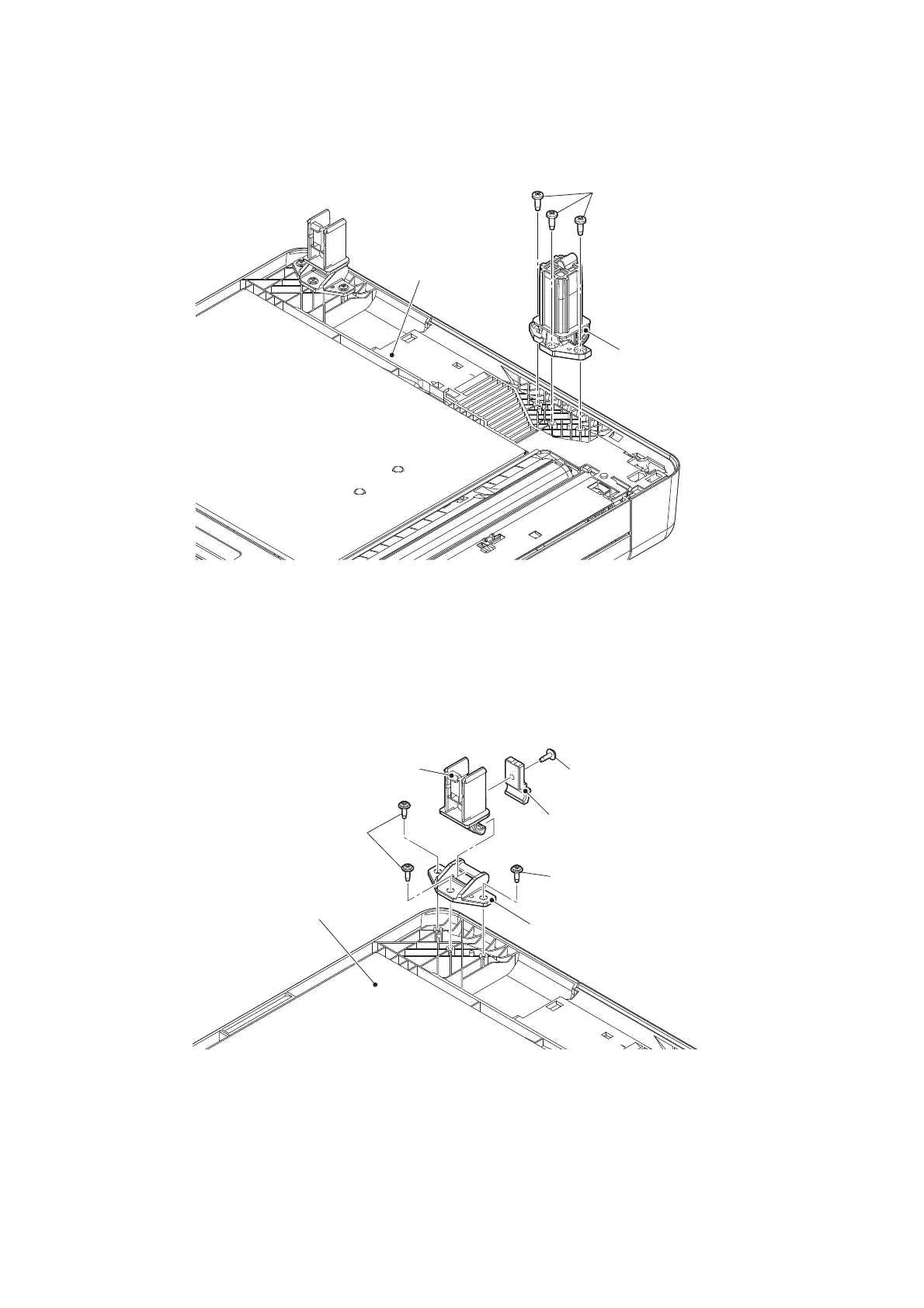

(6) Remove the three Taptite bind B M4x12 screws to remove the Hinge ASSY L from the ADF

unit.

Fig. 3-32

(7) Remove the Taptite cup B M3x10 screw to remove the Hinge R support and the Hinge R

from the Hinge arm R.

(8) Remove the three Taptite cup B M3x10 screws to remove the Hinge arm R from the ADF

unit.

Fig. 3-33

Hinge ASSY L

Taptite bind B M4x12

ADF unit

Hinge R

Taptite cup B M3x10

Hinge R support

Taptite cup B M3x10

Hinge arm R

ADF unit

Default Chapter4
