3-52

Confidential

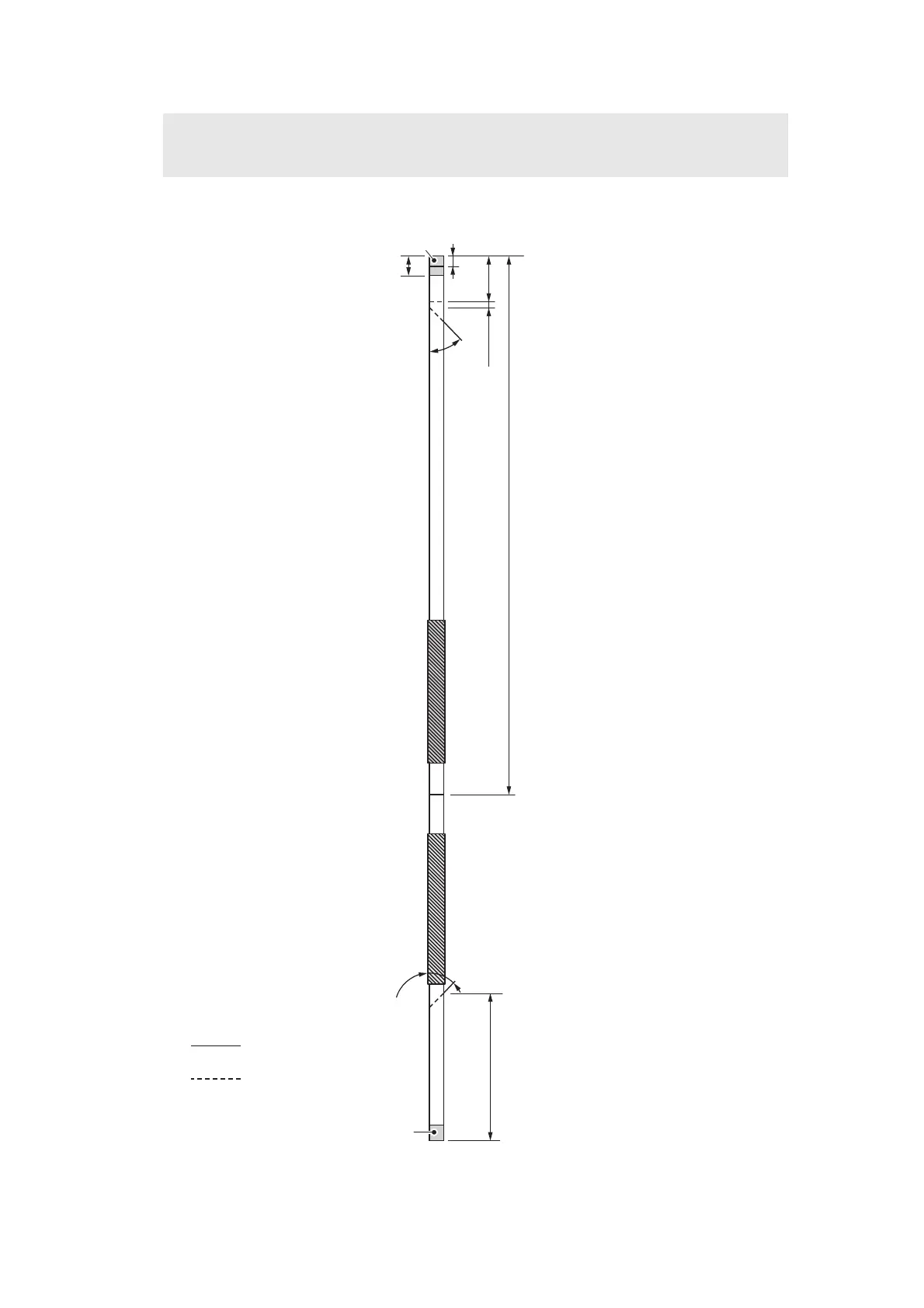

Fig. 3-44

Assembling Note:

• Fold the Second side CIS flat cable at the positions described below.

45°

35±1

Mountain fold

Valley fold

8 (The adhesive range on Reinforcing plate)

Reinforcing plate

45°

426±2

<Main PCB side>

<Second side CIS side>

Reinforcing plate

15 (Reinforcing plate)

4±1

113±1
