3-72

Confidential

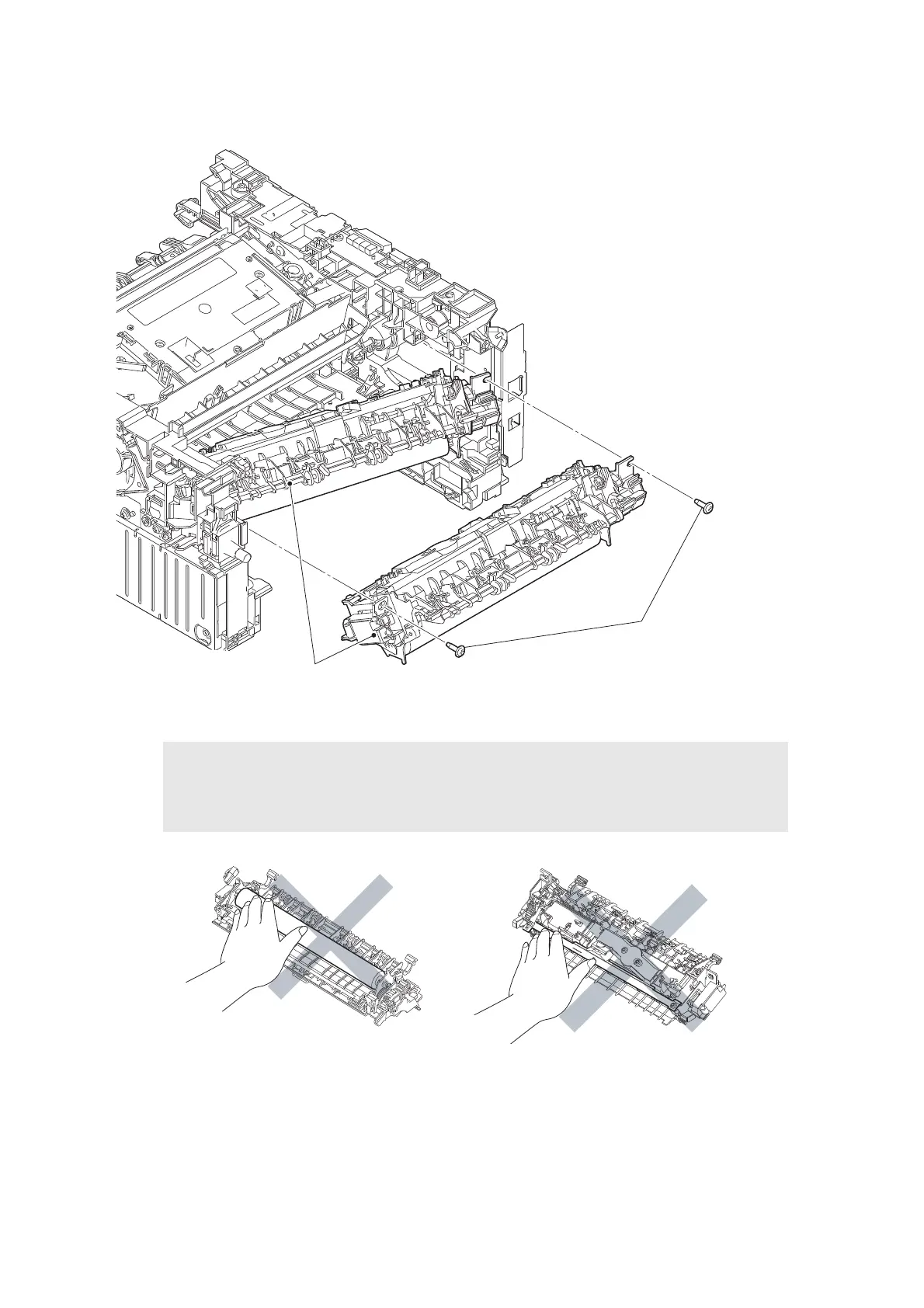

(4) Remove the two Taptite pan B M4x14 screws, and remove the Fuser unit.

Fig. 3-66

Fig. 3-67

Note:

• DO NOT apply a physical impact or vibration to the Fuser unit.

• DO NOT touch the roller and the electrodes to prevent breakage of the Fuser unit.

Taptite pan B M4x14

Fuser unit

Default Chapter4
