3-88
Confidential
MP models

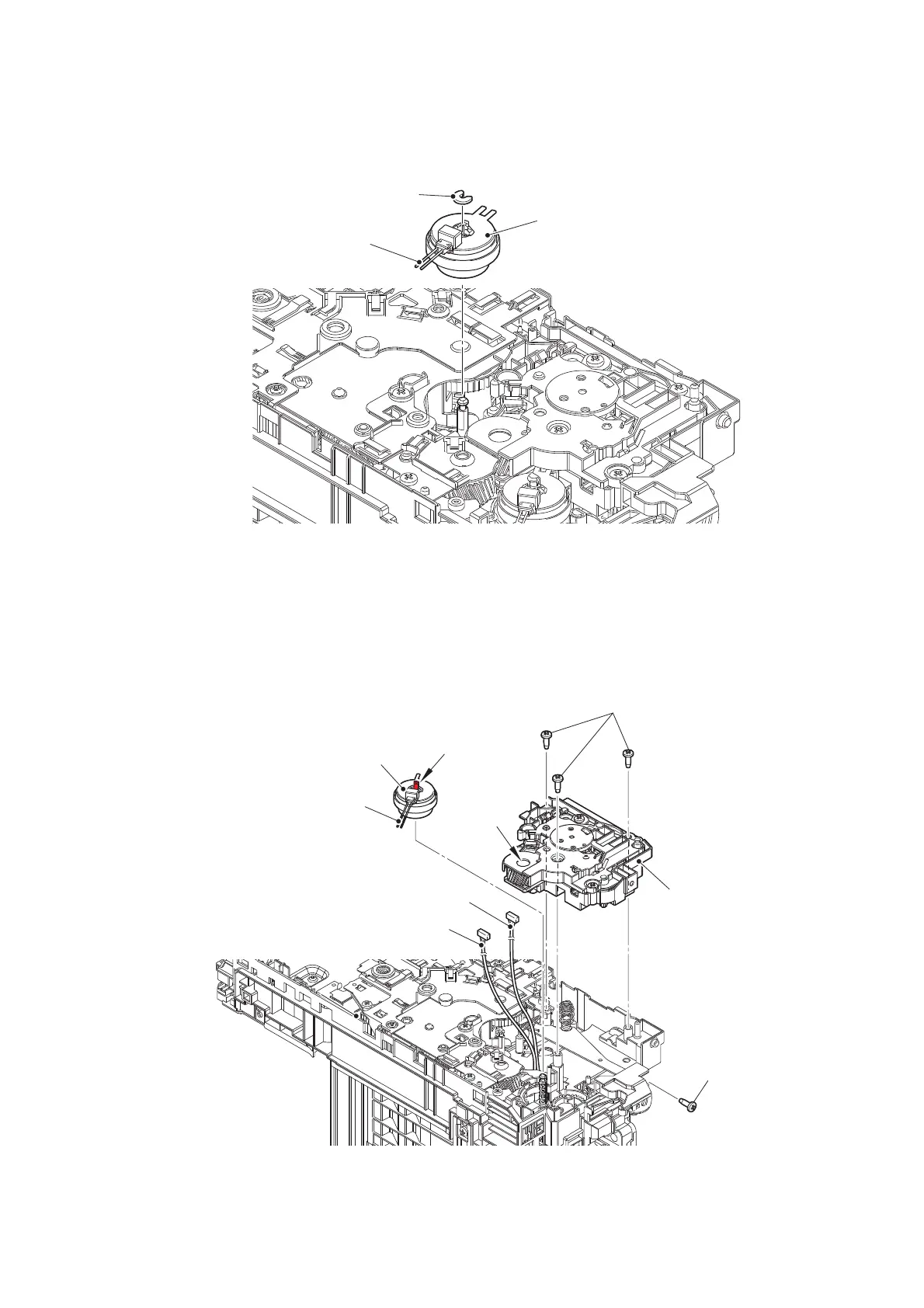

(1) Release the Registration clutch harness from the securing fixtures.
(2) Remove the Collar 4 to remove the Registration clutch.
Fig. 3-86
(3) Release the T1 clutch harness and the Paper feed sensor harness from the securing
fixtures.
(4)
Remove the three Taptite bind B M4x12 screws and the Taptite pan B M4x14 screw to remove
the MP frame parts. Pull out the Paper feed sensor harness and the MP paper empty sensor
harness from the hole of the MP frame parts.
(5) Release the Hook, and remove the T1 clutch.
Fig. 3-87
Harness routing: Refer to “11. Frame L unit (MP models)”.
Registration clutch
Collar 4
Registration clutch harness
T1 clutch
Taptite pan B
M4x14
Hook
MP frame parts
Taptite bind B M4x12
T1 clutch harness
Hole
Paper feed sensor harness
MP paper empty sensor harness
