3-49
Confidential
9.10.5
ADF Cover ASSY
(1) Open the ADF cover ASSY.
(2) Release the pins to remove the ADF cover ASSY.

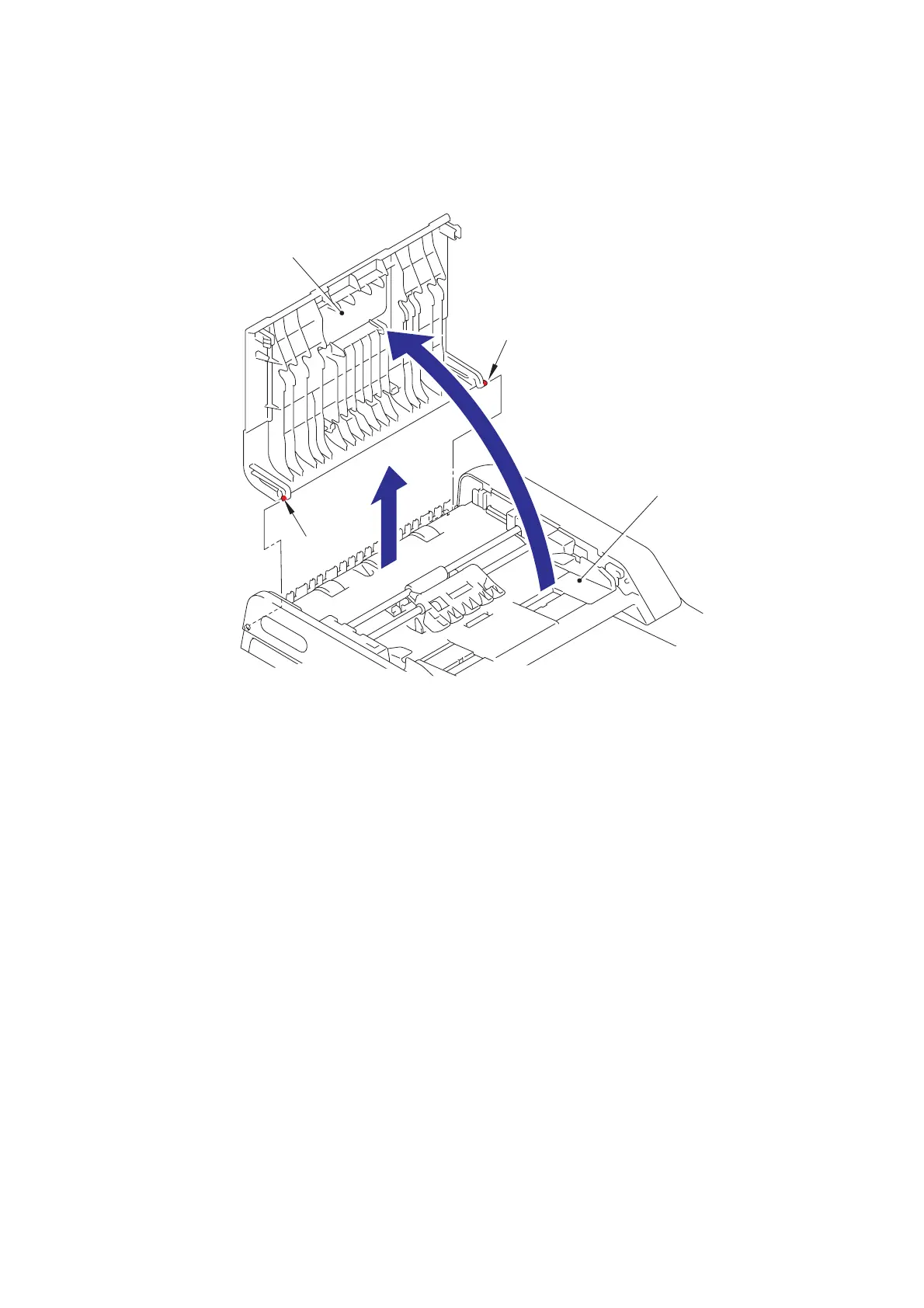

Fig. 3-33
ADF cover ASSY
ADF unit
Pin
1
2
Pin
