Brother MFC-7860DW

3-88
Confidential
9.22 Fuser Fan
(1) Disconnect the connector of the fuser fan from the high voltage power supply PCB
ASSY.
(2) Remove the harness of the fuser fan from the guides of the main frame R ASSY.
(3) Release the hooks to remove the fuser fan.

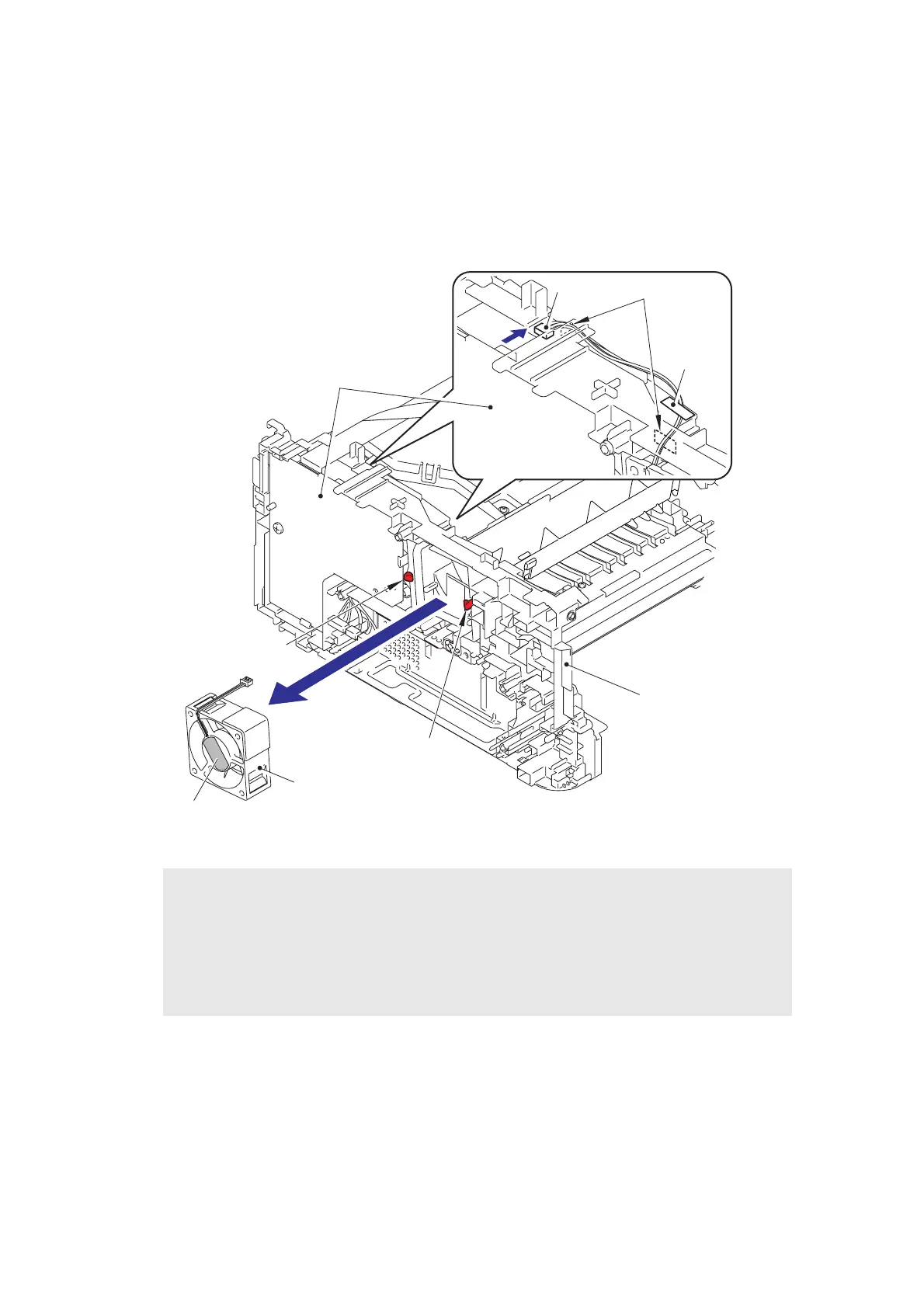

Fig. 3-76
Assembling Note:
• When assembling the fan motor 60 ASSY, attach the fuser fan after inserting the
harness into the guides of the main frame R ASSY.
• When assembling the fuser fan, place it so that the attached label faces outwards.
• When assembling the fuser fan, secure the harness to the position of figure above with
the tape.
Main frame R ASSY
Fan motor 60 ASSY
Label
Guides
Hook
Hook
Connector
Tape
High voltage power supply PCB ASSY
