Brother MFC-7860DW

3-66
Confidential
9.13 Document Scanner Unit
(1) Open the document scanner unit, and remove the harness from the hole, and remove
the CIS flat cable from the hole.
(2) Change the angle of the document scanner unit as shown in the figure to remove it
upward.

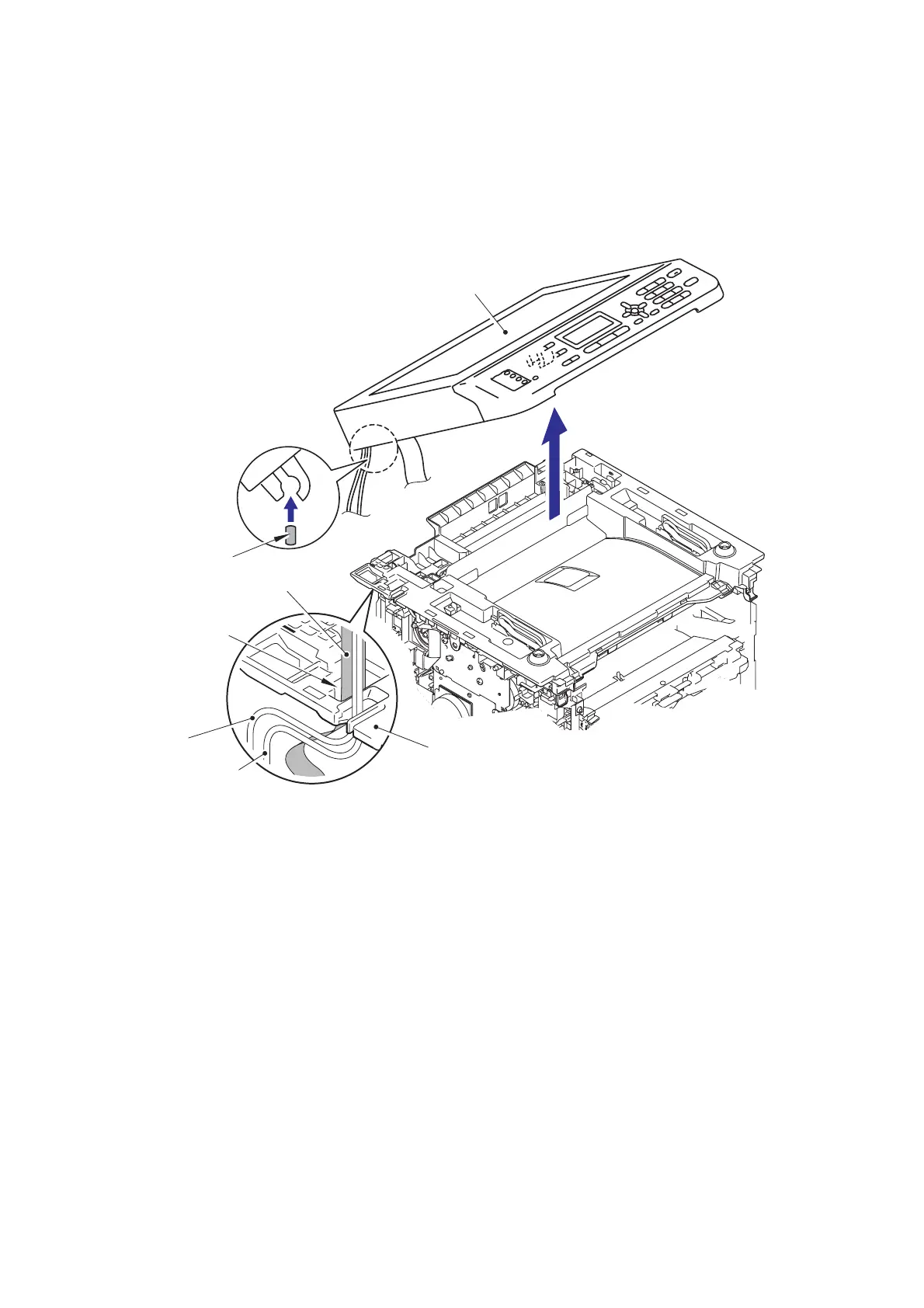

Fig. 3-51
Document scanner unit
Joint cover
CIS flat cable
Hole
Joint cover
FB FG /
FB motor harness
Panel harness
