9.27 Wireless LAN PCB ASSY (Wireless LAN model only)
(1) Remove the harness of the wireless LAN PCB ASSY from the guides of the main frame
L ASSY.
(2) Disconnect the connector of the wireless LAN PCB ASSY from the main PCB ASSY.
(3) Release the hooks to remove the wireless LAN PCB ASSY.

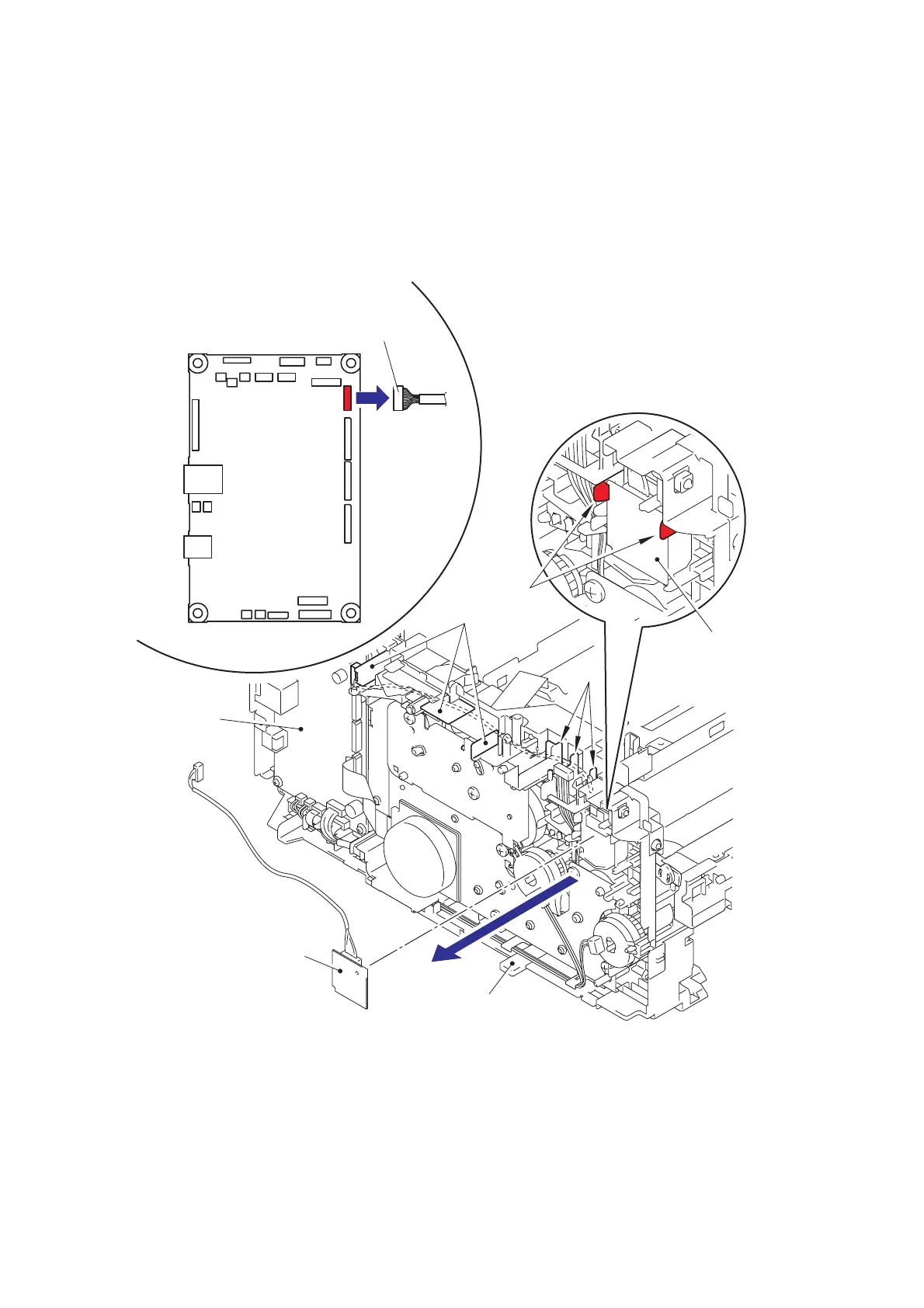

Fig. 3-83
Main PCB ASSY
CN24
Connector
(Wireless LAN PCB ASSY)
Hooks
Main frame L ASSY
Wireless LAN PCB ASSY
Wireless LAN PCB ASSY
Main PCB ASSY
Guides
Guides
