Chapter 1
6
Control panel overview 1

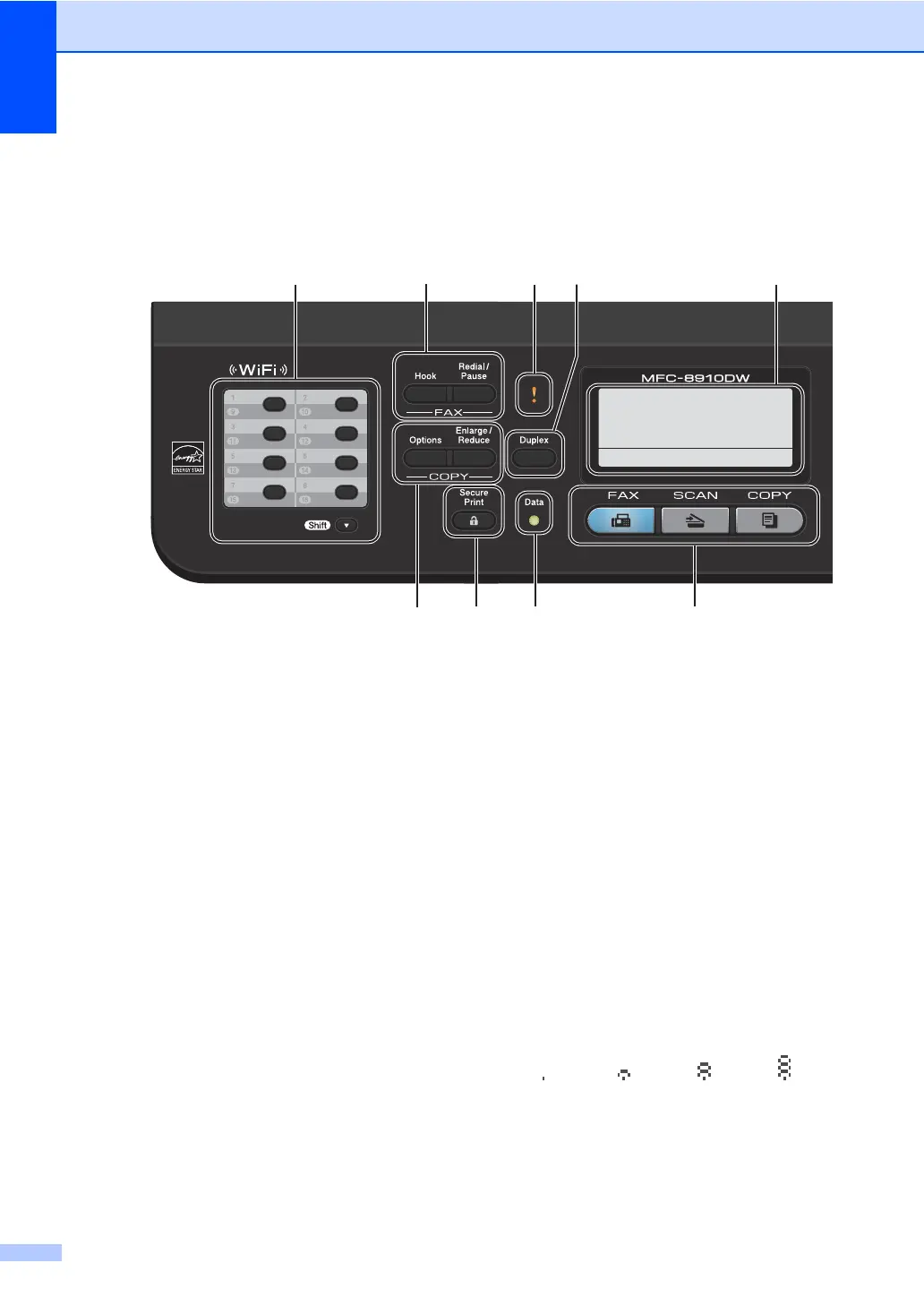

MFC-8510DN, MFC-8710DW and MFC-8910DW have the same keys. The illustration is based
on the MFC-8910DW.
1 One Touch keys
These 8 keys give you instant access to 16
previously stored numbers.
Shift
Lets you access One Touch numbers 9 to 16
when held down.
2 FAX keys:
Hook
Press before dialing if you want to make sure a
fax machine will answer, and then press Start.
Also, press this key after you pick up the
handset of an external telephone during the
F/T ring (pseudo/double-rings).
Redial/Pause
Redials the last number called. It also inserts a
pause when programming quick dial numbers
or when dialing a number manually.
3 Error LED
Blinks in orange when the LCD displays an
error or an important status message.
4 Duplex
You can choose Duplex to copy or print on both
sides of the paper.
(MFC-8910DW) Also, this key enables
automatic 2-sided (Duplex) fax sending when
the machine is in FAX mode.
5LCD
Displays messages to help you set up and use
your machine.
(MFC-8710DW and MFC-8910DW) In FAX
mode and SCAN mode a four level indicator
shows the current wireless signal strength if
you are using a wireless connection or Wi-Fi
Direct™.
15
10
234
13 1112
01/01/2012 03:00PM
Fax
Res:Standard
b
Press b or Dial
0Max
To Next Page
