Brother MFC-8520DN User Manual

Chapter 7
40

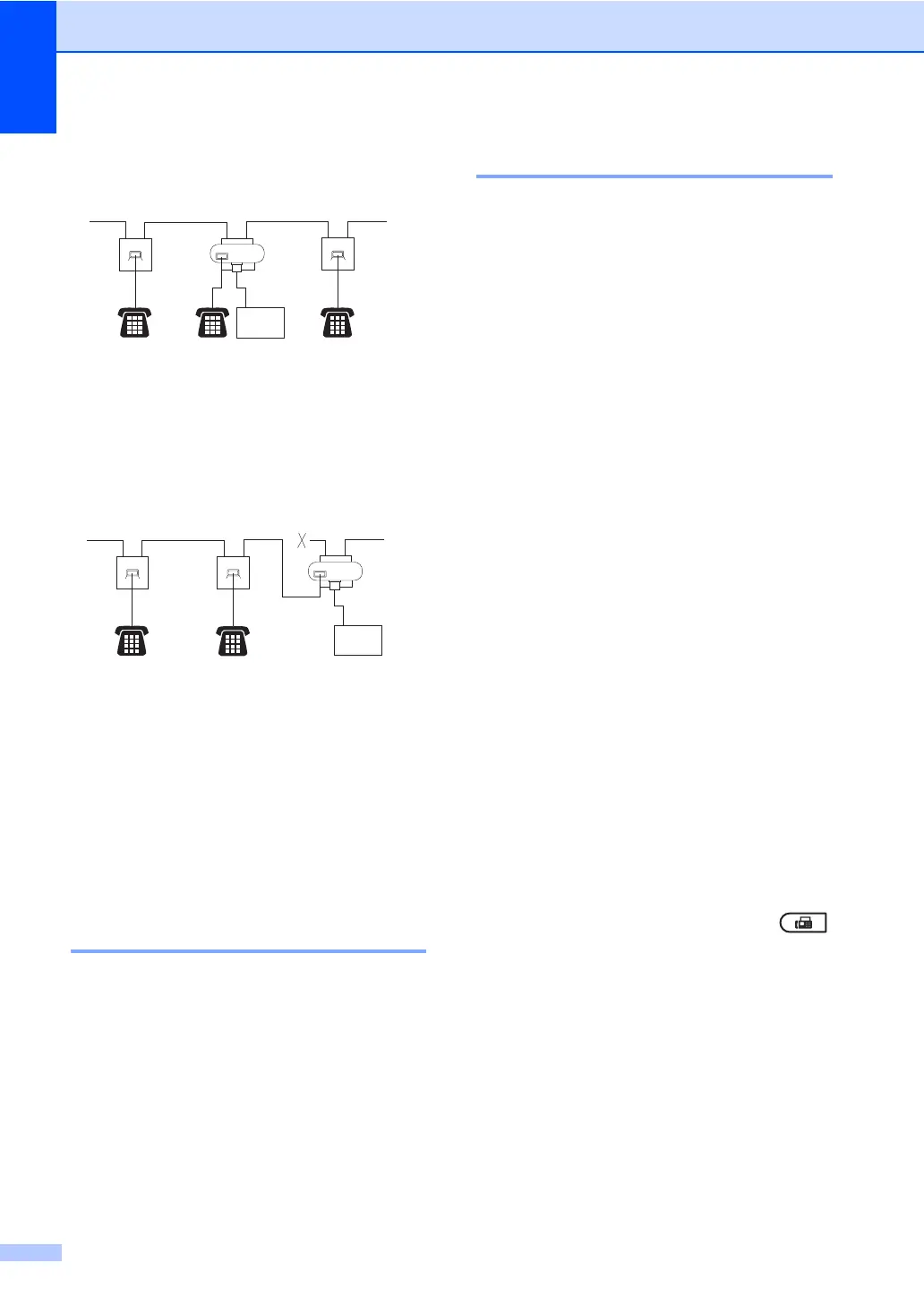

Figure 1: Inadvisable connection of
extension sockets
7
1 Extension socket
2 Master socket
3 Incoming line
Figure 2: Recommended connection of
extension sockets
7
1 Extension socket
2 Master socket
3 Incoming line
These phones are now connected as external
devices as shown on page 38, because they
are connected to the fax machine via the
T-connector.
Using a non-Brother cordless
external handset 7
If your non-Brother cordless telephone is
connected to the telephone line cord (see
page 38) and you typically carry the cordless
handset elsewhere, it is easier to answer
calls during the Ring Delay.
If you let the machine answer first, you will
have to go to the machine so you can press
Tel/R to transfer the call to the cordless
handset.
Using Remote Codes 7
Remote Activation Code 7
If you answer a fax call on an external or
extension telephone, you can tell your
machine to receive it by pressing the Remote
Activation Code l51. Wait for the chirping
sounds then replace the handset. (See Fax
Detect uu page 33.) Your caller will have to
press start to send the fax.
If you answer a fax call at the external
telephone, you can make the machine
receive the fax by pressing Start.
Remote Deactivation Code 7
If you receive a voice call and the machine is
in F/T mode, it will start to sound the F/T ring
(fast double-ring) after the initial ring delay. If
you pick up the call on an extension
telephone you can turn the F/T ring off by
pressing #51 (make sure you press this
between the rings).
If the machine answers a voice call and fast
double-rings for you to take over, you can
take the call at the external telephone by
pressing Tel/R.
Turning on the Remote Codes 7
You need to turn the Remote Codes setting to
On to use the Fax Receive Code and
Telephone Answer Code.
a Make sure you are in FAX mode .
b Press Menu 2, 1, 4.
c Press a or b to choose On.
Press OK.
d If you do not want to change the Remote
Activation Code, press OK.
e If you do not want to change the Remote
Deactivation Code, press OK.
f Press Stop/Exit.
FAX
12
3
1
(Example for U.K.)
FAX
12
3
1
(Example for U.K.)

Brother MFC-8520DN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Duplex print speed (black, normal quality, A4/US Letter)	9 ppm
PictBridge	No
Scan speed	2.68 sec/page
Dimensions (WxDxH)	405 x 415 x 423 mm
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	Scan
Printing colors	Black
Maximum duty cycle	- pages per month
Recommended duty cycle	500 - 3500 pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter, PCL 6
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 9, 16, 25
Time to first copy (black, normal)	10.5 s
Copy speed (black, normal quality, A4)	36 cpm
Scan to	E-mail, E-mail Server, File, FTP, Image, OCR, USB
Scan drivers	ICA, ISIS, TWAIN
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	48 bit
Maximum scan area	Legal (216 x 356) mm
Output color depth	24 bit
Image formats supported	BMP, JPG
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, JPEG, MH, MMR (Fax coding method), MR
Fax speed dialing (max numbers)	300
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	850 sheets
Maximum number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	35 sheets
Custom media width	76.2 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Auto Document Feeder (ADF) media weight	64 - 90 g/m²
Display	LCD
Market positioning	Home & office
Display number of lines	5 lines
Display number of characters	22
Standard interfaces	Ethernet, USB 2.0
Security algorithms	802.1x RADIUS, EAP, EAP-TLS, EAP-TTLS, MD5, PEAP
Processor family	Star Sapphire
Maximum internal memory	384 MB
Sound power level (standby)	37 dB
Sound pressure level (printing)	59 dB
Sound pressure level (quiet mode)	54 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	1.2 W
Power consumption (standby)	8.1 W
Power consumption (PowerSave)	336 W
Power consumption (average operating)	651 W
Package weight	20.100 g
Sustainability certificates	ENERGY STAR
