Brother MFC-9440CN Service Reference Manual

Confidential
Ref. 2-17
3.3.3 New Toner Detection
When a toner cartridge is changed, discrimination between new and secondhand toner
cartridges is performed by means of the new toner detection mechanism shown below.

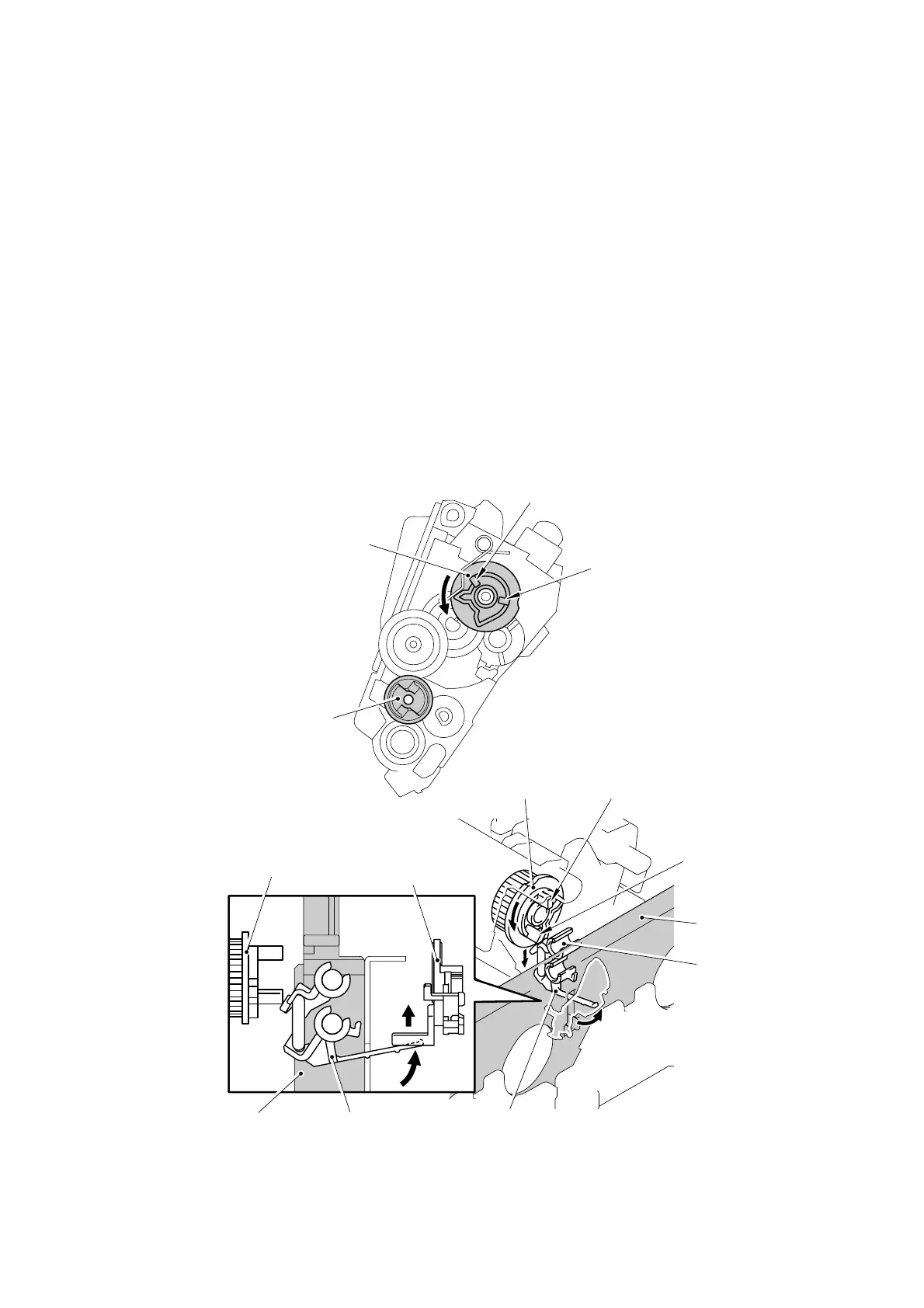

<New Toner Detection Mechanism>
The rotation of the gear (1) of the toner cartridge is transmitted to the reset gear, and the rib of
the gear pushes down the reset upper lever attached to the drum unit.
By pushing down the reset upper lever, the linked reset lever turns and pushes up the new
toner actuator with its lever fitted on the main body. The detection mechanism detects that
new toner is provided.
- For high-capacity toner cartridges
The reset gear has two ribs. The new toner actuator is pushed up twice by these ribs,
allowing the presence of a high-capacity toner cartridge to be detected.
- For standard toner cartridges
The reset gear has one rib. The new toner actuator is pushed up once by this rib, allowing
the presence of a standard toner cartridge to be detected.
Fig. Ref2-13
Reset gear
Reset lever
Rib
Rib
Reset gear
Gear (1)
Rib
Rib
Reset gear
New toner actuator
Reset upper lever
Reset lever
* The figure shows a high-capacity toner cartridge.
Drum unit
Drum unit

Brother MFC-9440CN Specifications

General

Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (color, normal)	16 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Scan to	e-mail, file, image, OCR
Input color depth	48 bit
Copier resize	25 - 400 %
PC free copying	Yes
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 9, 16
Copy speed (black, normal quality, A4)	16 cpm
Faxing	Color faxing
Fax memory	400 pages
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	300
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	35 sheets
Internal memory	64 MB
Maximum internal memory	576 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	54.5 dB
Display	LCD
Market positioning	Business
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, 12 Bitmap fonts, 13 Barcodes
Dimensions (WxDxH)	432 x 487 x 482 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	copy, fax, print, scan
Compatible operating systems	Windows Vista/XP/Home/2003/2000 Mac OS X 10.2.4 or greater Linux
Standard interfaces	USB 2.0
Power consumption (standby)	95 W
Power consumption (PowerSave)	28 W
Power consumption (average operating)	495 W
Package weight	38600 g
Sustainability certificates	ENERGY STAR
Digital sender	No
