2.7"(67.5 mm) Touchscreen
LCD 1

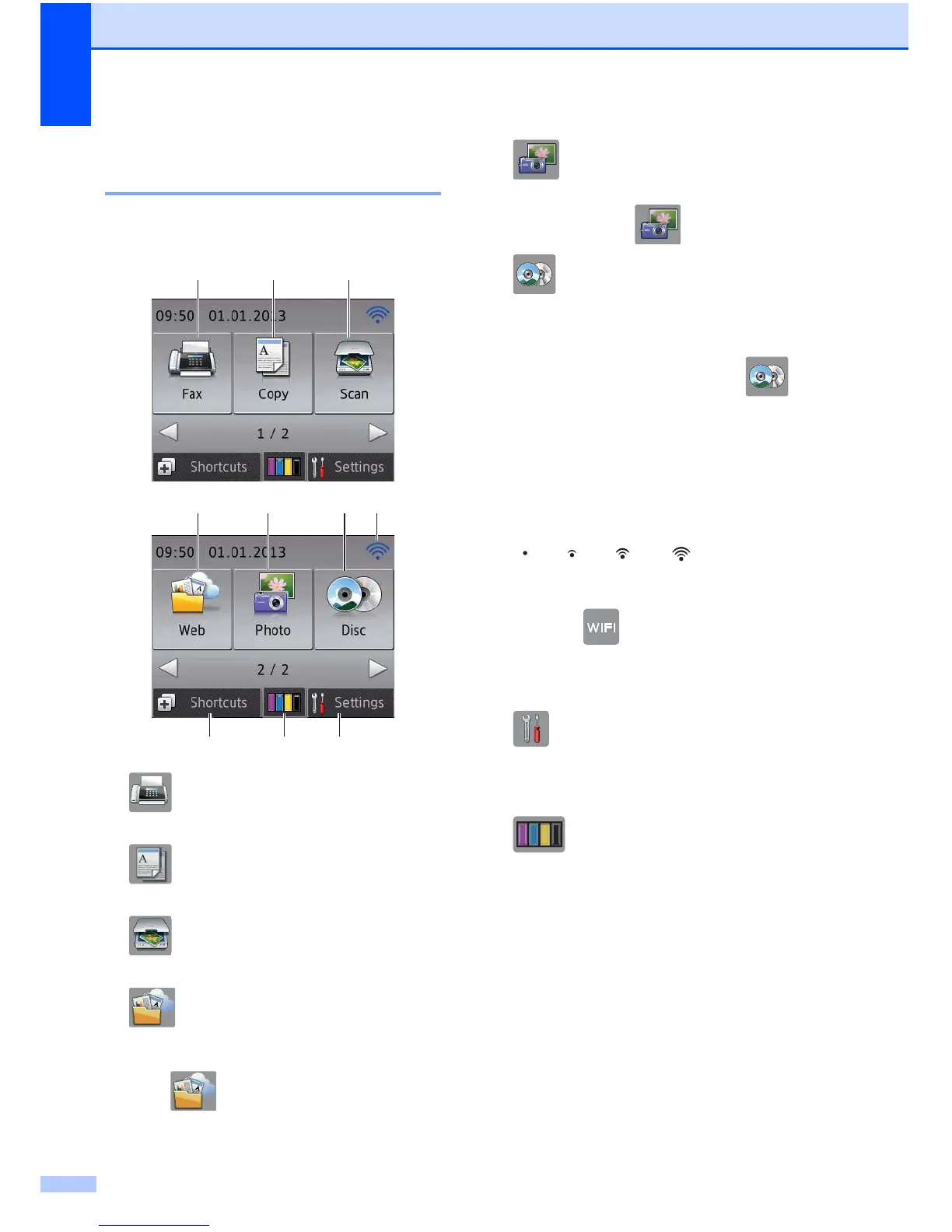

The Touchscreen LCD shows the machine’s
status when the machine is idle.
1 Fax
Lets you access the Fax mode.
2 Copy
Lets you access the Copy mode.
3 Scan
Lets you access the Scan mode.
4 Web
Lets you connect the Brother machine to an
Internet service when you press c, and then
press .
For more information, see Web Connect
Guide.
5 Photo
Lets you access Photo mode when you press
c, and then press .
6 Disc
(MFC-J870DW)
Lets you print on printable media, including
CD-R/RW, DVD-R/RW and Blu-ray Disc™
when you press c, and then press .
For more information, see Software and
Network User’s Guide.
7 Wireless Status
A four-level indicator on the Ready mode
screen shows the current wireless signal
strength if you are using a wireless connection.
If you see at the top of the screen, you
can easily configure the wireless settings by
pressing it. For more information, see Quick
Setup Guide.
8 Settings
Lets you access the main settings.
For more information, see Settings screen
on page 10.
9 Ink
Lets you see the available ink volume and also
lets you access the Ink menu.
When the ink cartridge is near the end of life or
having a problem, an error icon is displayed on
each affected ink colour. For more information,
see Advanced User’s Guide: Checking the ink
volume.
