Brother MFC-T4500DW - Fax

3-87
Confidential

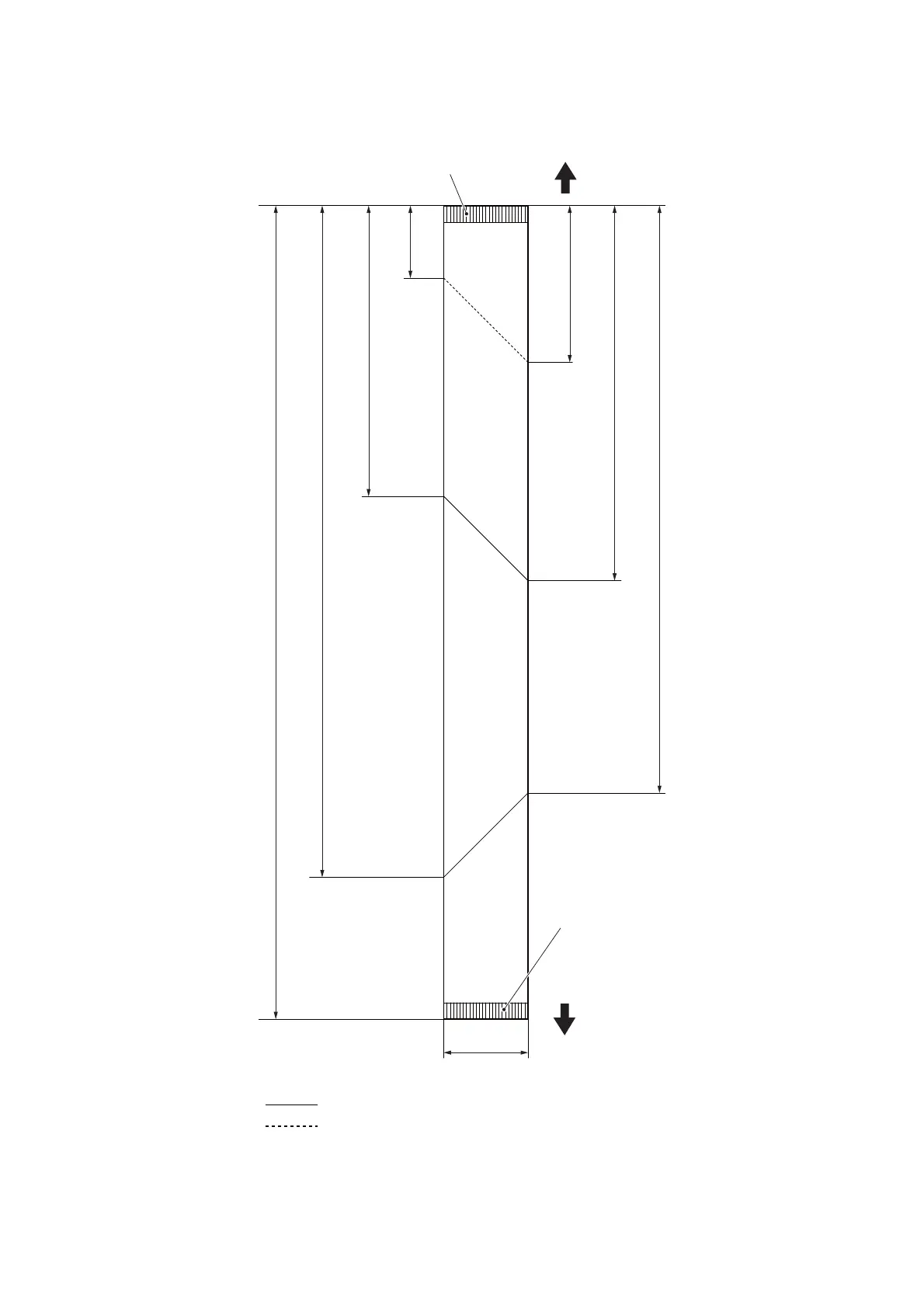

Assembling Note: See the figure below for the Panel flat cable folding position.
Fig. 3-94
177.6
Mountain fold
Valley fold
To LCD PCB
To Main PCB
113.4
47.4
21.9
87.9
203.1
246
Term inal
Terminal
25.5 mm
mm
mm
mm
mm
mm
mm
mm
