Brother MFC-T4500DW Service Manual

Confidential
2-49
■ Error Code 8900
Paper width sensor cannot detect origin specified on the paper feed roller.

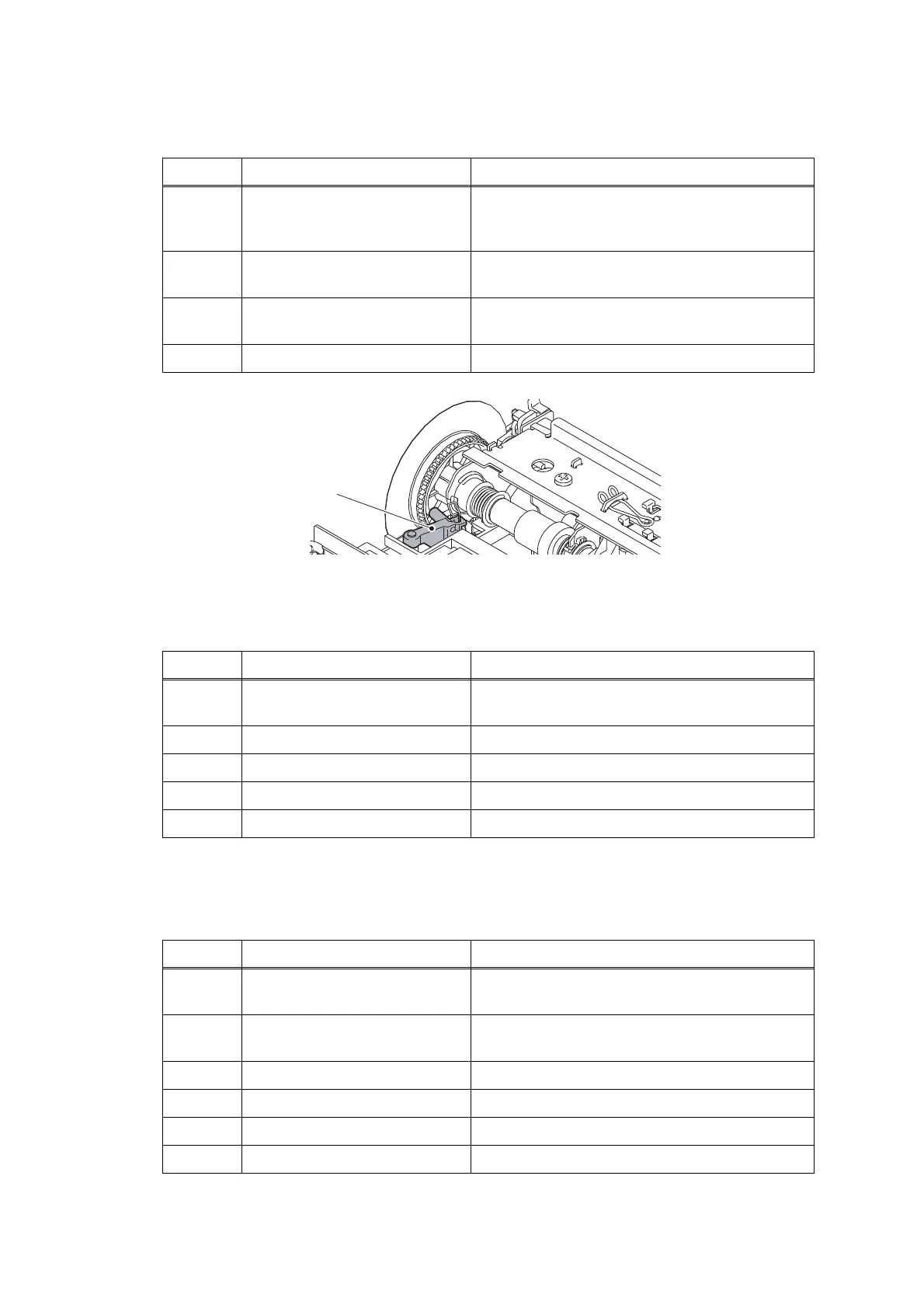

Fig. 2-7
■ Error Code 8F00
Paper feed motor cannot stop.
■ Error Code 8F01
PF encoder sensor cannot detect rotation of the paper feed motor.
Step Cause Solution
1 PF encoder disk stained Clean the PF encoder disk and flushing guide.
(refer to "Precautions for Troubleshooting and/
or Disassembly/Assembly")
2 PF home position detection
lever out of place
Set the PF home position detection lever into
place.
3 Paper width sensor or carriage
PCB defective
Replace the carriage PCB ASSY.
4 Main PCB defective Replace the main PCB.
Step Cause Solution
1 Paper feed roller belt out of
place
Set the paper feed roller belt into place.
2 PF encoder sensor defective Replace the PF encoder sensor.
3 PF encoder disk defective Replace the PF encoder disk.
4 Paper feed motor defective Replace the paper feed motor.
5 Main PCB defective Replace the main PCB.
Step Cause Solution
1 PF encoder sensor harness
connection failure
Reconnect the PF encoder sensor harness.
2 PF motor harness connection
failure
Reconnect the PF motor harness.
3 PF encoder sensor defective Replace the PF encoder sensor PCB.
4 PF encoder disk defective Replace the PF encoder disk.
5 Paper feed motor defective Replace the paper feed motor.
6 Main PCB defective Replace the main PCB.
PF home position detection lever

Brother MFC-T4500DW Specifications

General

Copier resize	25 - 400 %
N-in-1 copy function	Yes
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A3)	15 cpm
Copy speed (color, normal quality, A3)	11 cpm
Faxing	Mono faxing
Fax memory	180 pages
Modem speed	33.6 Kbit/s
Fax transmission speed	3 sec/page
Fax speed dialing (max numbers)	2
Standard interfaces	Ethernet, USB, Wireless LAN
Scan to	E-mail, FTP, File, HTTP, Image, OCR, USB
Scanner type	Flatbed scanner
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	1200 x 2400 DPI
Display	TFT
Product color	Black
Display diagonal	2.7 \
Market positioning	Home & office
Print technology	Inkjet
Maximum resolution	1200 x 4800 DPI
Print speed (black, normal quality, A3)	22 ppm
Print speed (color, normal quality, A3)	20 ppm
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	SMTP-AUTH, SNMPv3, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP, FTP Server, SNMPv1/v2c/v3, TFTP server, SMTP Client, ICMP, Web Services (Print/Scan), CIFS Client, SNTP Client, LDAP, HTTP Server
Supported network protocols (IPv6)	NDP, RA, mDNS, LLMNR Responder, DNS Resolver, LPR/LPD, Custom Raw Port/Port9100, IPP, FTP Server, SNMPv1/v2c/v3 , TFTP server, Web Services (Print/Scan), SMTP Client, CIFS Client, SNTP Client, LDAP, ICMPv6, HTTP Server
Printer management	BRAdmin Light
Internal memory	128 MB
Card reader integrated	No
Sound pressure level (printing)	50 dB
Power consumption (off)	0.04 W
Power consumption (ready)	6 W
Power consumption (sleep)	1.5 W
Power consumption (copying)	28 W
Power consumption (average operating)	- W
Sustainability certificates	ENERGY STAR
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Envelopes sizes	Com-10, DL, Monarch
Photo paper sizes	9x13 cm
Non-ISO print media sizes	Folio (media size), Index card, Legal (media size)
ISO A-series sizes (A0...A9)	A3, A5
ISO C-series sizes (C0...C9)	C5
JIS B-series sizes (B0...B9)	B5, B6
Photo paper sizes (imperial)	3.5x5, 4x6, 5x7 \
Maximum ISO A-series paper size	A3
Paper input type	Paper tray
Total output capacity	250 sheets
Multi-Purpose tray input capacity	100 sheets
Auto document feeder (ADF) input capacity	50 sheets

Weight and Dimensions

Depth	477 mm
Width	575 mm
Height	310 mm
