Brother MFC-T800W Service Manual

5-23
Confidential
1.4.10 Sensor Operational Check (Maintenance mode 32)
<Function>
This function checks whether sensors work normally.
<Operating Procedure>
(1) Enter [3] and [2] in the initial stage of the maintenance mode.

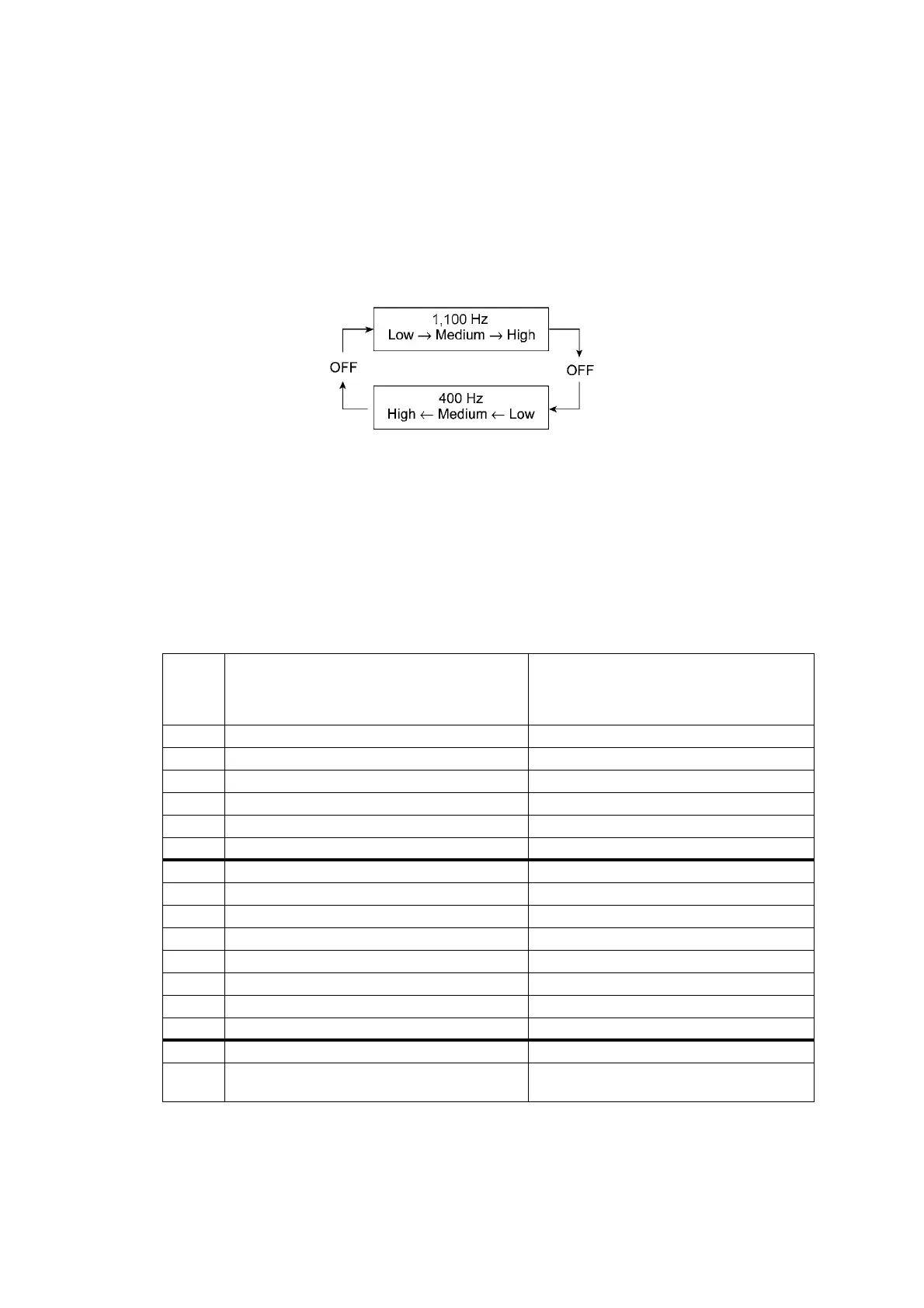

The machine sounds 1,100 Hz and 400 Hz tones cyclically through the following
volumes for testing the speaker.
Note To stop tones from the speaker, press [SET] or [Menu].
If the sensing statuses are as defined below, the LCD shows the 1st sensor group
"DFDRCVRSCCP1****".
(2) Press [Mono Start] to switch to the next sensor group.
If asterisks ("**") appear on the LCD, it means that the corresponding sensor does not
exist on the model.
Given below is the relationship between the LCD indication, sensor name and sensor
status.
*1 For ADF models only
*2 For Ink Cartridge models and MFC-T800W only
*3 For Ink Cartridge models only
Items
shown
on the
LCD
Sensors Sensing status (display/no display)
DF
*1
Document detection sensor No document/Document present
DR
*1
Document scanning position sensor No document/Document present
CV Document scanner sensor Cover closed/Cover opened
RS Registration sensor No recording paper/Recording paper present
CC Ink cartridge cover sensor Cover closed/Cover opened
P1 Purge cam sensor Origin/Out of origin
IK
*2
Black ink cartridge detection sensor Cartridge present/No cartridge
IY
*3
Yellow ink cartridge detection sensor Cartridge present/No cartridge
IC
*3
Cyan ink cartridge detection sensor Cartridge present/No cartridge
IM
*3
Magenta ink cartridge detection sensor Cartridge present/No cartridge
EK Black ink remaining sensor Ink present/No ink
EY Yellow ink remaining sensor Ink present/No ink
EC Cyan ink remaining sensor Ink present/No ink
EM Magenta ink remaining sensor Ink present/No ink
VT Head thermistor Normal temperature/Abnormal temperature
T1 High temperature detector in the complex IC
(for main PCB)
Normal temperature/Abnormal temperature

Brother MFC-T800W Specifications

General

Display	LCD
Product color	Black
Built-in display	Yes
Market positioning	Home & office
Display number of lines	1 lines
Display number of characters	16
Direct printing	-
Standard interfaces	USB 2.0, Wireless LAN
Ethernet LAN	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, SSID, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPS
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS / NetBIOS name resolution, DNS Resolver, mDNS, LLMNR response, LPR / LPD, Custom Raw Port / Port9100, FTP Server, SNMP v1 / v2c, TFTP server, ICMP
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Mobile operating systems supported	Android, Windows Phone, iOS
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Print speed (ISO/IEC 24734) mono	11 ipm
Print speed (ISO/IEC 24734) color	6 ipm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Print speed (color, normal quality, A4/US Letter)	10 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	2500 pages per month
Recommended duty cycle	50 - 1000 pages per month
Envelopes sizes	10, C5, DL, Monarch
Photo paper sizes	10x15, 13x18 cm
Custom media width	98 - 215.9 mm
Custom media length	148 - 355.6 mm
Paper tray media types	Coated paper, Envelopes, Glossy paper, Photo paper, Plain paper
Non-ISO print media sizes	2L, Executive (184 x 267mm), Index card, Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	4x6, 5x7 \
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight (imperial)	17 - 24 lbs
Total input capacity	- sheets
Total output capacity	50 sheets
Maximum input capacity	100 sheets
Auto document feeder (ADF) input capacity	20 sheets
Faxing	Color faxing
Fax memory	170 pages
Modem speed	14.4 Kbit/s
Fax resolution (black)	203 x 98 DPI
Fax transmission speed	7 sec/page
Fax speed dialing (max numbers)	40
Scan to	E-mail, File, Image, OCR
Scan drivers	ICA, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	30 bit
Maximum scan area	A4 (210 x 297) mm
Output color depth	24 bit
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	1200 x 2400 DPI
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Noise level	50 dB
Internal memory	64 MB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.2 W
Power consumption (ready)	3 W
Power consumption (sleep)	1.1 W
Power consumption (copying)	16 W

Weight and Dimensions

Depth	374 mm
Width	435 mm
Height	180 mm
