Brother MFC-T800W Service Manual

5-43
Confidential
1.4.22 Updating of Head Property Data (Maintenance mode 68)
<Function>
To maintain print quality, the machine optimizes the drive conditions of individual Head/
carriage units according to their property data.
Head property data is stored in the EEPROM on the main PCB and its property code is
printed on the head property labels attached to the Head/carriage unit.
If you replace the Head/carriage unit, you need to enter its property code printed on the
new head property label (pasted on the spare part), following the procedure below using
maintenance code 68.
<Operating Procedure>
(1) Enter [6] and [8] in the initial stage of the maintenance mode.
(2) Enter [2], [5], [8], and [0].
The current property data stored in the EEPROM appears on the LCD and the
machine is ready for entry.

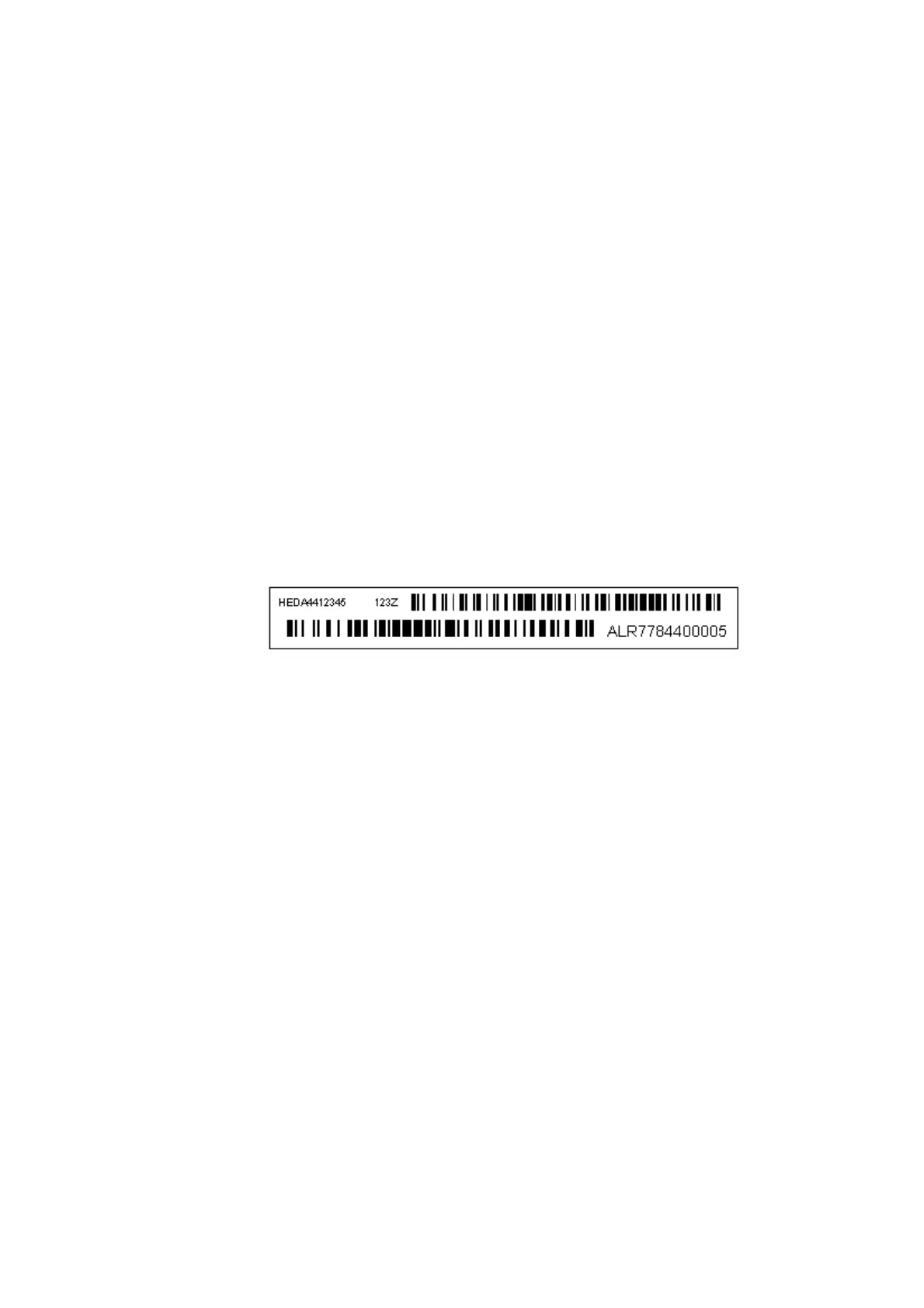

(3) Check the head property label pasted on the Head/carriage unit, and enter the
property code.
The code to be entered is 10 digits excluding the heading "ALR".
Tip In the standby state, open the scanner cover, and then hold down [Stop] or [X] five
seconds or longer; the Head/carriage unit moves to the center. Check the head
property label from the opening.
(4) After entering the 10 digits, press [SET] or [OK].
The machine displays "INPUT ACCEPTED" on the LCD and writes the entered head
property code into the EEPROM.
It then returns to the initial stage of the maintenance mode.
Note If the entered data contains any checksum error, the machine shows "Input
Error" and becomes ready to accept entry. Go back to step (3) and re-enter.

Brother MFC-T800W Specifications

General

Display	LCD
Product color	Black
Built-in display	Yes
Market positioning	Home & office
Display number of lines	1 lines
Display number of characters	16
Direct printing	-
Standard interfaces	USB 2.0, Wireless LAN
Ethernet LAN	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, SSID, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPS
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS / NetBIOS name resolution, DNS Resolver, mDNS, LLMNR response, LPR / LPD, Custom Raw Port / Port9100, FTP Server, SNMP v1 / v2c, TFTP server, ICMP
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Mobile operating systems supported	Android, Windows Phone, iOS
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Print speed (ISO/IEC 24734) mono	11 ipm
Print speed (ISO/IEC 24734) color	6 ipm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Print speed (color, normal quality, A4/US Letter)	10 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	2500 pages per month
Recommended duty cycle	50 - 1000 pages per month
Envelopes sizes	10, C5, DL, Monarch
Photo paper sizes	10x15, 13x18 cm
Custom media width	98 - 215.9 mm
Custom media length	148 - 355.6 mm
Paper tray media types	Coated paper, Envelopes, Glossy paper, Photo paper, Plain paper
Non-ISO print media sizes	2L, Executive (184 x 267mm), Index card, Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	4x6, 5x7 \
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight (imperial)	17 - 24 lbs
Total input capacity	- sheets
Total output capacity	50 sheets
Maximum input capacity	100 sheets
Auto document feeder (ADF) input capacity	20 sheets
Faxing	Color faxing
Fax memory	170 pages
Modem speed	14.4 Kbit/s
Fax resolution (black)	203 x 98 DPI
Fax transmission speed	7 sec/page
Fax speed dialing (max numbers)	40
Scan to	E-mail, File, Image, OCR
Scan drivers	ICA, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	30 bit
Maximum scan area	A4 (210 x 297) mm
Output color depth	24 bit
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	1200 x 2400 DPI
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Noise level	50 dB
Internal memory	64 MB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.2 W
Power consumption (ready)	3 W
Power consumption (sleep)	1.1 W
Power consumption (copying)	16 W

Weight and Dimensions

Depth	374 mm
Width	435 mm
Height	180 mm
