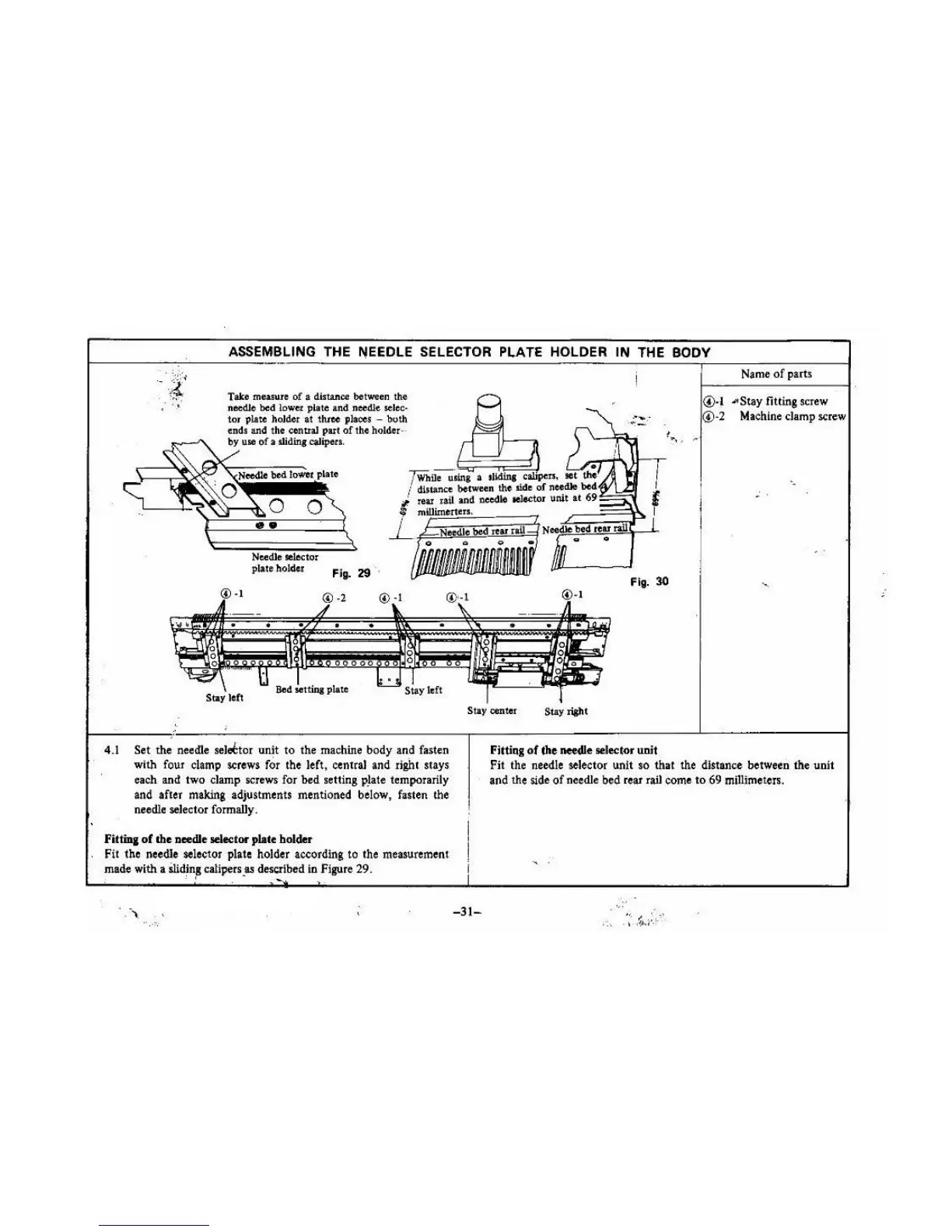

ASSEMBLING
THE
NEEDLE
SELECTOR
PLATE HOLDER IN
THE
BODY
...
Take
measu1e
of
a distance between
the
needle bed lower plate
and
needlf. selec·
tor
pl.\te holder
at
thtee
pl.\ces - buth
ends
and
the centnl
part
of
the
holder·-
by
use of a
slidint
calipers.
pl.\te
holcler
Fig.
29
4J
Set
the
needle selettor unit
to
the
machine
body
and fasten
with four clamp screws for the left, central and right stays
each and
two
clamp screws for
bed
setting
p_late
temporarily
and after making adjustments mentioned below, fasten the
needle selector formally.
FittiD&
of
lhe needle selectOI' plate bolder
Fit the needle selector plate holder according
to
the measurement
made with a Sliding calipers as described
io
Figure
29
_
. ' -
--
-,
. '
Name
of
parts
(!).!
.o~~
·
Stay
fitting screw
.
;:
::.:
4
-2
Machine clamp screw
I
:':
•'
,..
--
Fig.
30
Stay
center
Stay
risftt
-31-
Fitting
of
Che
needle
selector uoit
Fit the needle selector unit so that the distance between the uoit
and
the side
of
needle bed reat rail come
to
69 millimeters.
' .
