Using the Touch Panel Display (Optional:PA-TDU-001) (TD-2120N/2130N only)
85
10
Creating a One-Touch Panel 10
A one-touch panel can be created using any
of the following methods.
 Using stickers or in handwriting, note the
names of keys directly on the included
one-touch panel.
 The actual panel figure can be found on
the last page before the back cover in the
Quick Setup Guide for the touch panel
display. This figure can be used by
copying it onto plain paper.
Panel size: 5.213" (length)  3.634"
(width) (132.4 mm (length)  92.3 mm
(width))
 A panel format can be downloaded from
the following website.
http://solutions.brother.com
[Select your region/country] - Choose
your product - [Downloads]
This can be used by typing in the key
names, then printing out the data on plain
paper.
Printing the Label 10
A label layout transferred to the printer can
easily be printed or edited using the touch
panel display, without a computer
connection.

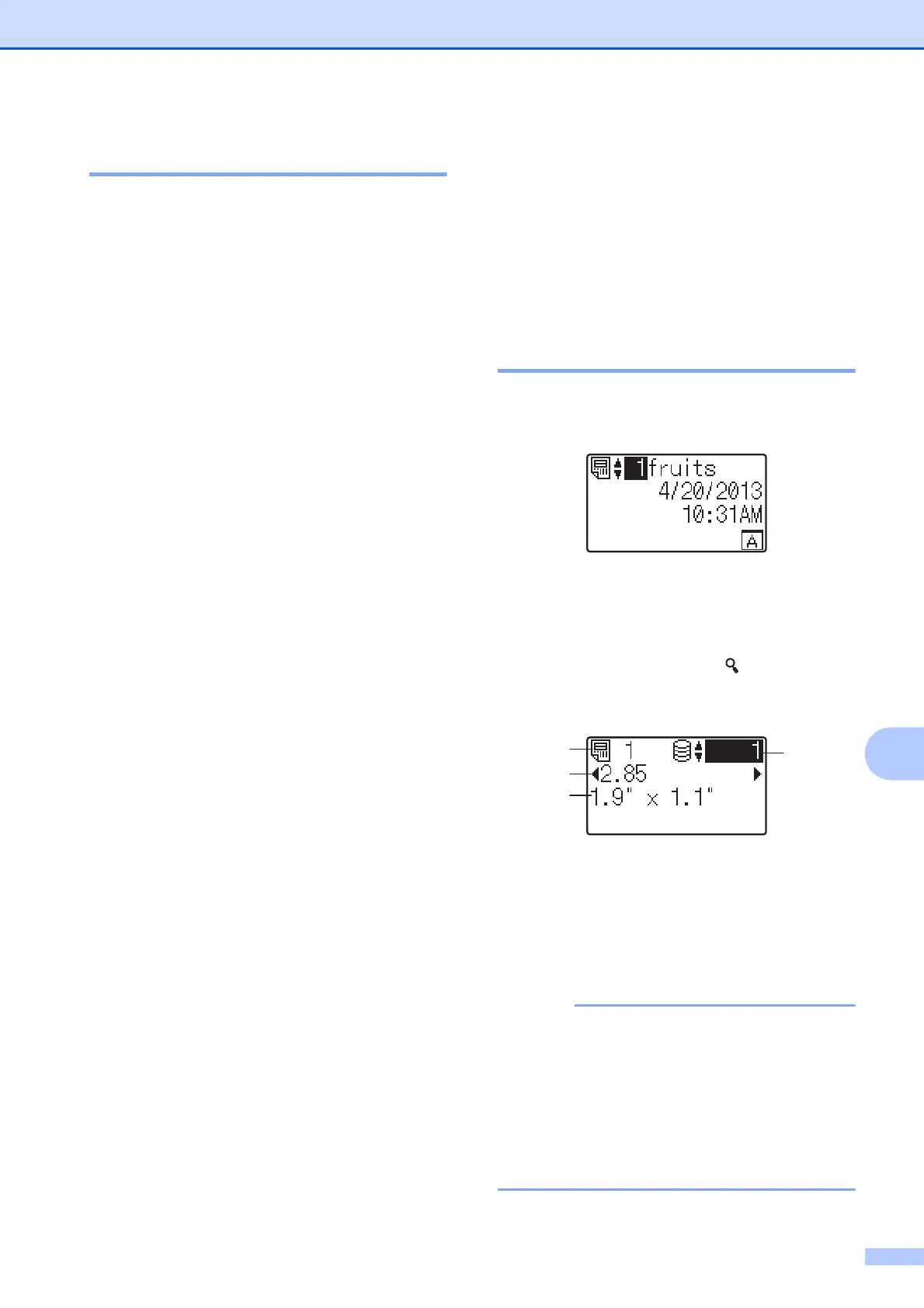

Printing Using the Basic
Control Panel 10
a Turn on the printer. The main screen
appears.
b Press [a] or [b] to select the number of
the template to be printed, or press the
number keys to type in the number, and
then press [OK]. Press [ ] (search key)
to display the template details in the
screen.
1 Template number
2 Text in template
3 Paper size
4 Database record number (only if a
database is linked)
NOTE
• All text in the template can be checked by
pressing [d] or [c].
• The text displayed on the LCD and its
display order are set by using P-touch
Editor 5.0. For details, see Setting the
Text and Order for Displaying on the LCD
on page 79.
4
1
2
3

Brother TD-2020 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	98.6 mm
Maximum printing width	56 mm
Product color	White
USB port	Yes
Ethernet LAN	No
Optional connectivity	Serial (RS-232), USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Tape cutting	Automatic
Internal memory	6 MB
Number of fonts	7
Built-in barcodes	QR Code
Page description languages	ESC P
Maximum label length	1 m
Cables included	USB
Character sets	Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8
Minimum RAM	128 MB
Minimum storage drive space	70 MB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Harmonized System (HS) code	84433210
Package weight	2833 g
AC adapter output current	6 A
AC adapter output voltage	25 V

Weight and Dimensions

Depth	215 mm
Width	110 mm
Height	172 mm
Weight	1320 g
