OPERATION

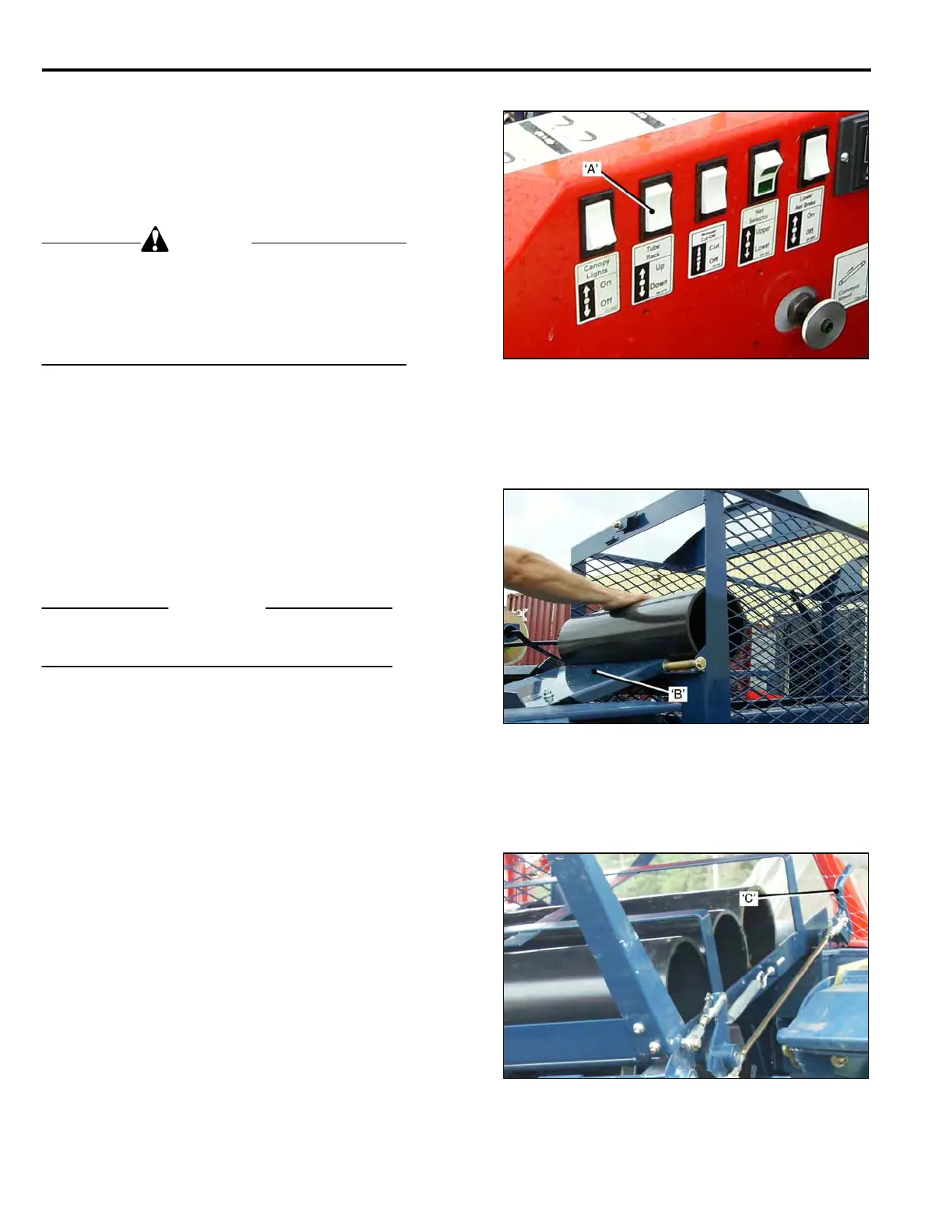

TUBE LIFT- RACK CONTROL SWITCH.
The Tube Lift-Rack Control Switch ‘A’.
• To raise the Tube Rack, press the top of the
switch - ‘UP’.
• To lower the Tube Rack, press the bottom of
the switch - ‘LOWER’.
WARNING
Before removing tubes from the Tube Rack, to load
the Tube Dispenser, or when loading the Tube Rack:
• The operator must stop the harvester and
switch the tractor engine ‘OFF ’.
• Failure to observe this precaution could result
in serious injury.
TUBE LIFT RACK.
Loading the Tube Lift Rack.
• Open the Access Door ‘B’, to Load the Tubes,
IMPORTANT
Do not overload and jam the tubes against the Lift
Rack top lifting brackets.
TUBE DISPENSER.
The Tube Dispenser Lever.
• To dispense a Tube into the Roll-Up Conveyor
pull the Dispenser Lever ‘C’, ‘FORWARD’,
only when Roll-Up Conveyor is correctly
positioned on the return swing.
• The Tube Dispenser can hold five tubes. It is
loaded manually From the Tube Rack.
3-08
