Brouwer ROLLMAX 2400 - Fine Adjust Control Adjustment; Shoe Arm Adjustment

AUTO-STEER

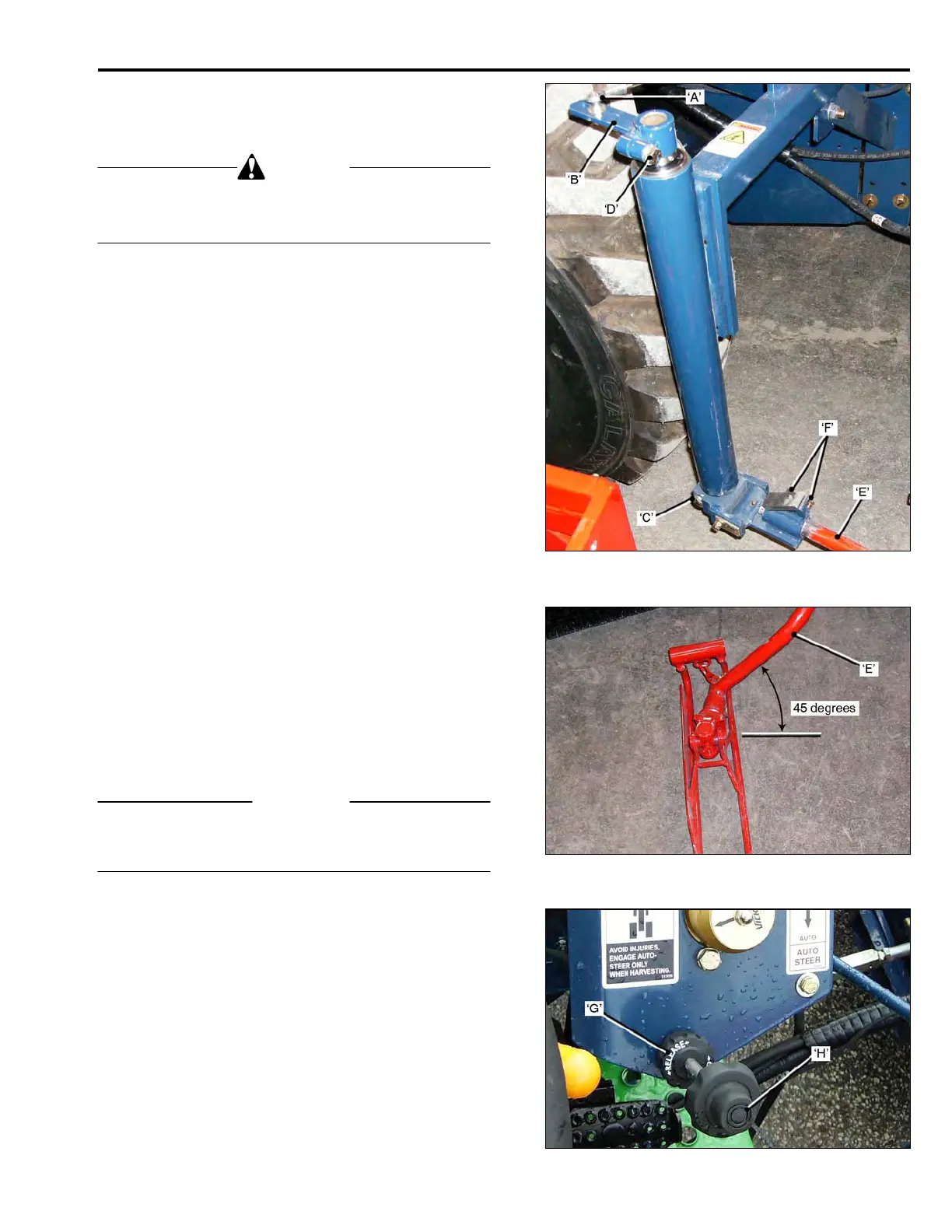

Actuator Spring Column.
Spring Tension Adjustment.
CAUTION
The Top Lever is under heavy spring tension.
Exercise care when releasing the spring tension, or when
removing the Cable Clevis End from the Top Lever Arm.
• Position the Guide Shoe against the cut edge of
the turf:
• Remove Clevis End ‘A’, from Top Lever Arm ‘B’.
• Loosen the Shoe Arm Clamp Bolt ‘C’.
As the tension releases, the Top Lever Arm should rotate
‘clockwise’ 90 to 95 degrees.(parallel to the Spring Column
Support Arm), If it releases less than specified, re-set it by :
• Loosening the Clamp Bolt ‘D’, and turning the
Lever Arm to the required position.
• Re-tighten the Clamp Bolt.
• Fit a suitable wrench on the Lever Arm ‘B’ and
rotate the Lever Arm back, against spring pressure,
sufficient to re-attach the Clevis End.
Shoe Arm Adjustment.
The Guide Shoe Arm ‘E’, should be approximately at a
45 degree angle to the ground.
To set the correct angle ;
• Loosen two Clamp Bolts ‘F’, in the Mounting Pivot.
• Rotate the Shoe Arm ‘E’, to the correct angle.
• Re-tighten the Clamp Bolts.
IMPORTANT
The Guide Shoe Lift Chain should be adjusted to allow the
Guide Shoe approximately 2 inches of travel on each side
of the cut edge of the turf.
Fine Adjust Control.
As noted on page 5-1, the Fine Adjust Control allows
the operator to trim the waste strip. The Fine Adjust
cable must be set-up as follows :
Set the Fine Adjust Control to its ‘Mid-Point’ by ;
• Release the Control Lock ’G’.
• Press the End Button ‘H’, and slide the Control
Knob ‘IN’ or ‘OUT’, to find the Mid-Point of travel.
• Tighten the Control Lock.
Continued on page 5-04
5-03
