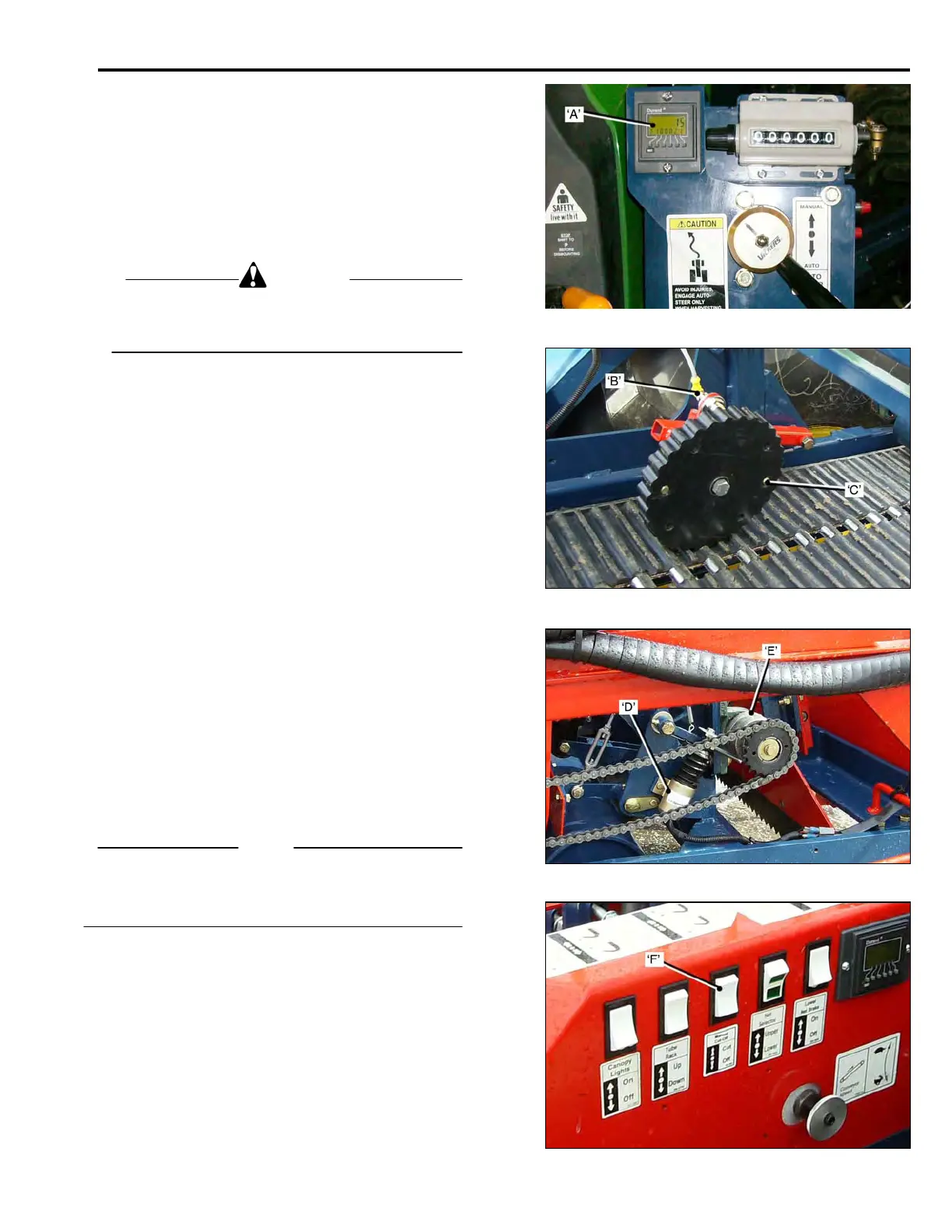

AUTOMATIC CUT-OFF.
CUT-OFF DIGITAL COUNTER.
The Digital Cut-Off Counter ‘A’.
• Allows the length of the roll to be selected,
with the buttons on the front of the counter.
• The roll length can be adjusted from 0 feet to
120 feet. The Counter indicates the length that
is pre-set and shows the count ‘down’ to zero.
CAUTION
The 120 feet length is the maximum that must
be selected. Longer lengths of turf will jam the
Roll-Up Unit.
• When the length of turf is cut, the warning
‘buzzer’ sounds and the Counter resets to the
pre-selected length.
• If the Manual Cut-Off , (see below),is activated
in mid-count, to produce a ‘short roll’, the
Counter will reset to the pre-selected length.
There is also a reset button on the Counter.
CUT-OFF LENGTH SENSOR.
The Cut-Off length Sensor ‘B’.
• The Counter Sensor targets two bolts in the
Sensor Wheel ‘C’, as it rotates with the
conveyor, each revolution equals one foot.
• The Sensor signals the Counter until the pre-
selected length is reached, starting the Cut-Off
sequence.
CUT-OFF SOLENOID
The Cut–Off Solenoid ‘D’.
• The Counter signal activates the Cut-Off
Solenoid, when the selected length of turf is
reached, this engages the Cam Shaft Clutch
‘E’, operating the cut-off.
NOTE
Chain Guard, (with Tensioner), removed for clarity.
Do not operate the machine with the guard
removed.
MANUAL CUT-OFF.
The Manual Cut-Off Selector Switch ‘F’.
• To cut the roll before the selected length has
been cut, activate the Cut-Off Switch, (up or
down). This is done if some smaller rolls are
required.
• After the ‘short’ rolls have been cut the cut-off
length will reset to the pre-selected length.
OPERATION
3-07
