ELECTRICAL
Main Electrical Control Box

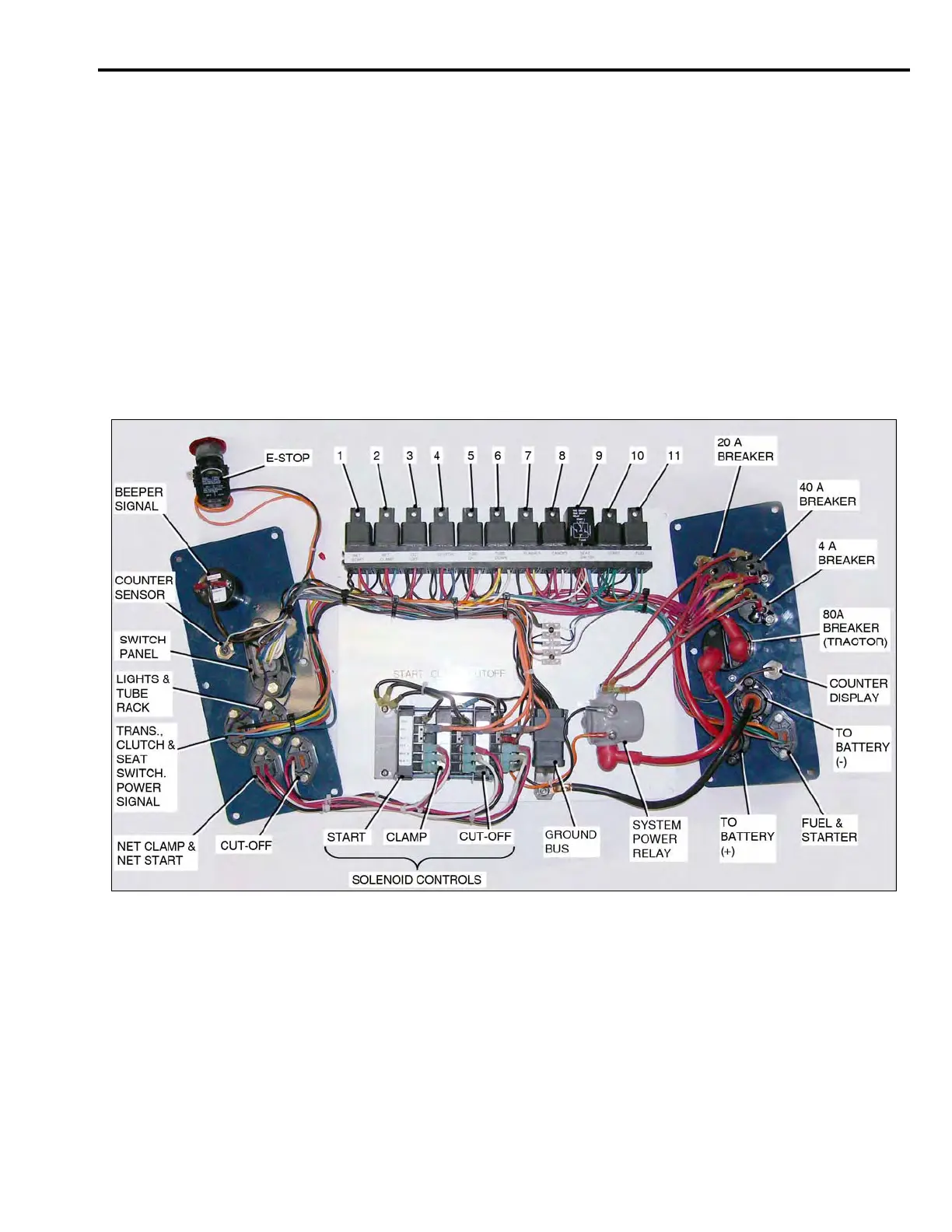

Fig.6-01
Main Electrical Control Box. Internal Wiring Connections and Components.
Relays
1. Net Start
2. Net Clamp
3. Cut-Off
4. Clutch
5. Tube Up
6. Tube Down
7. Flasher
8. Canopy
9. Seat Switch
10. Start
11. Fuel
Fig. 6-01
6-01
