ENGINE MANAGEMENT MODULE (EMM)
EMM SERVICING
EMM SERVICING
IMPORTANT: If a new EMM is being installed,
refer to EMM Transfer on p. 107.
Removal
Disconnect exhaust pressure hose and cooling
hoses from EMM.
Disconnect J1-A, J1-B, and J2 connectors.
Remove two EMM retaining screws.
Lift EMM away and to the starboard side.
Installation
Align slots in starboard side of EMM case with iso-
lator mounts on cylinder block. Slide EMM into
position.
Install two EMM retaining screws. Tighten screws
12 to 16 in. lbs. (1.5 to 2 N·m).
Install J1-A, J1-B, and J2 connectors.
Install exhaust pressure hose and cooling hoses.
Secure with tie straps.

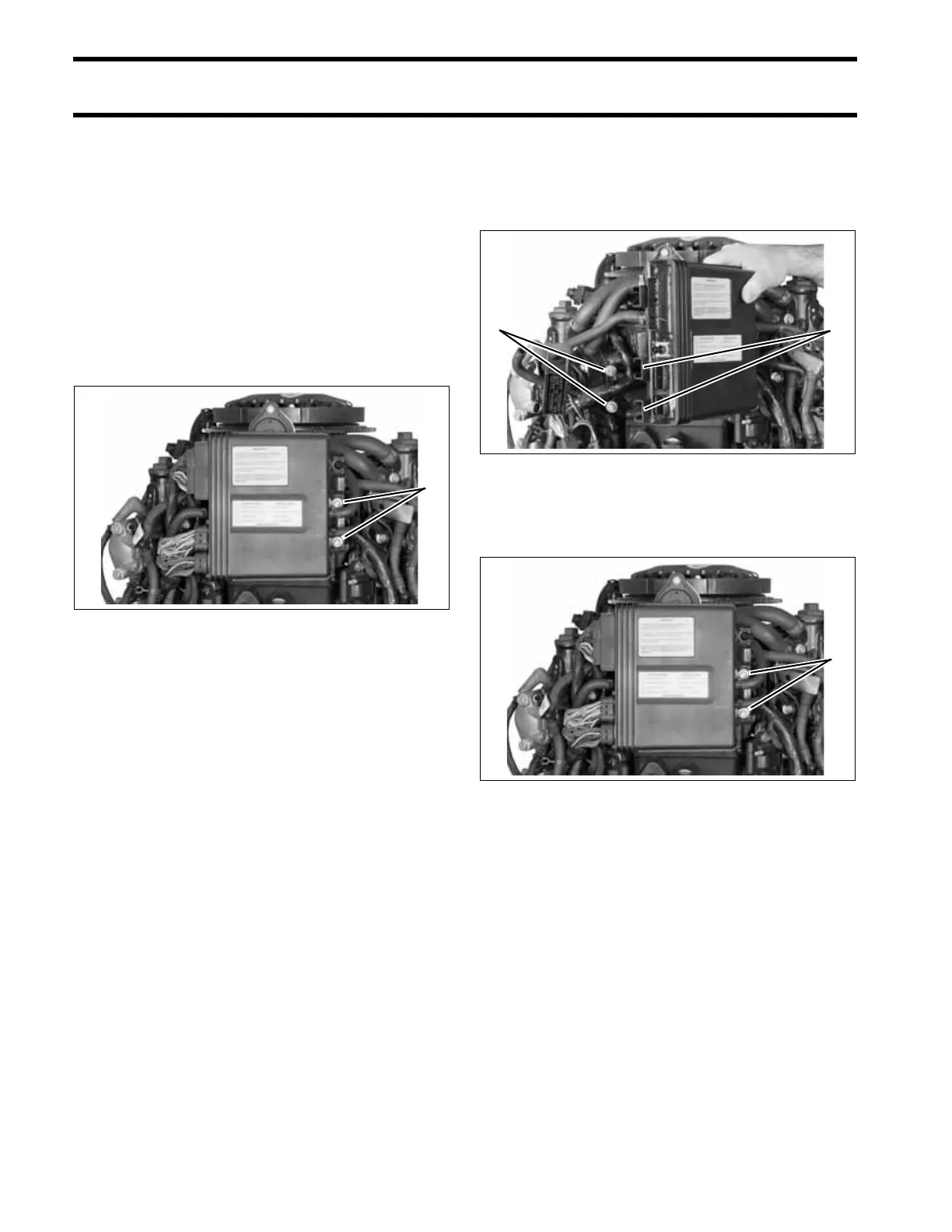

1. EMM mounting screws 006967
11
1. EMM mounting slots
2. Isolator mounts
006968
1. EMM mounting screws 006967
12
11
