OILING SYSTEM

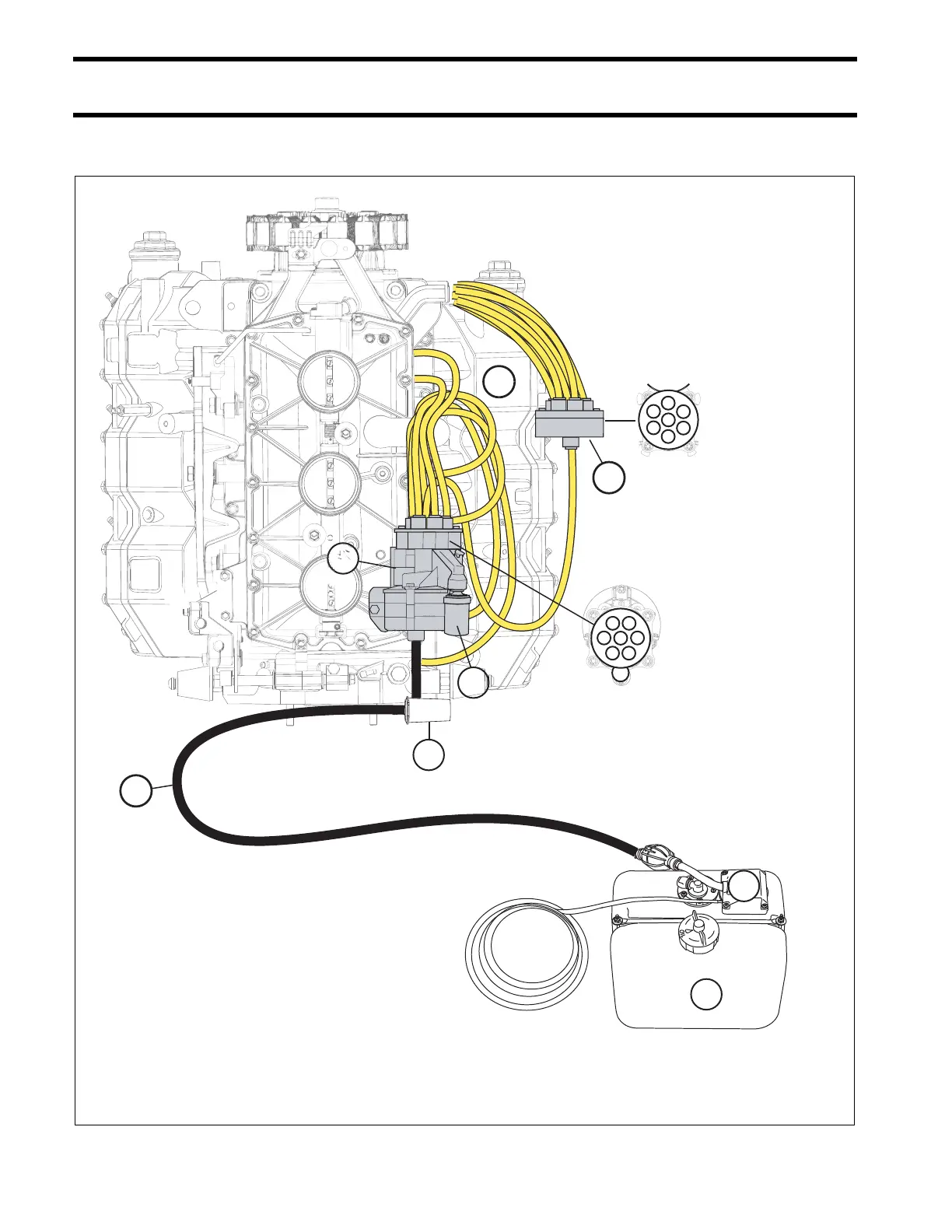

OIL SUPPLY DIAGRAMS – V6
OIL SUPPLY DIAGRAMS – V6
1
2
7
Rear oil manifold delivers
oil to cylinder sleeves
Primary oil manifold delivers
oil to crankcase fittings and
rear oil manifold
6
8
3
1
2
3
4
5
6
7
1
2
3
4
5
6
1. Cylinder 1
2. Cylinder 2
3. Cylinder 3
4. Cylinder 4
5. Cylinder 5
6. Cylinder 6
1. Cylinder 1
2. Cylinder 2
3. Cylinder 3
4. Cylinder 4
5. Cylinder 5
6. Cylinder 6
7. Rear oil manifold
4
5
006869
1.
2.
3.
4.
5.
6.
7.
8.
Oil tank assembly
Oil pick-up
Oil supply hose
In-line oil filter
Oil injector assembly
Oil distribution hoses
Oil pressure sensor
Rear oil manifold
