BRP E250DHLSCS - Gearcase Housing Inspection

283
GEARCASE – STANDARD ROTATION
GEARCASE HOUSING INSPECTION
13

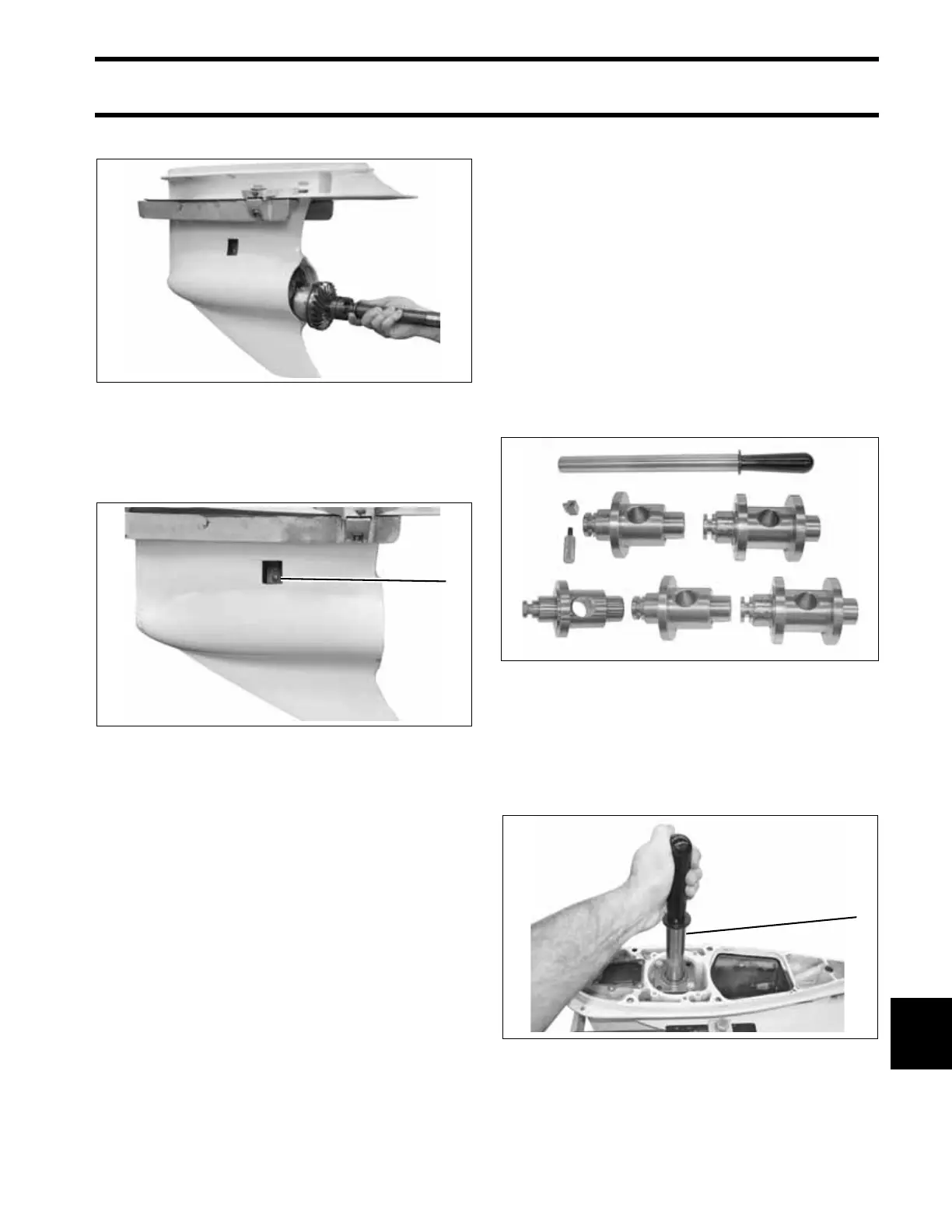

Remove propeller shaft assembly from gearcase.
Water Intake Screens
Remove and clean water intake screens. Replace
if damaged.
GEARCASE HOUSING
INSPECTION
Thoroughly clean gearcase housing to remove all
dirt and debris prior to inspection. Inspect pinion
bearing and forward thrust surface of gearcase
housing.
Use Gearcase Alignment Gauge Kit, P/N 5006349
to check the condition of gearcase housing prior
to reassembly. Refer to instructions provided with
kit. Use additional Gauging Head as follows:
• P/N 5007750, for “L2” Type gearcase housings
• P/N 5007749, for “M2” Type gearcase housings
IMPORTANT: DO NOT force gauging shaft into
alignment hole. Shaft MUST slide easily into hole
of gauging head. If shaft does not slide into hole,
gearcase housing is damaged and must be
replaced.
006839
1. Water intake screen 006886
1
006787
1. Gauging shaft 004347
1
