BRP E250DHLSCS - Shifter, Bearing and Seal Servicing; Shift Housing

284
GEARCASE – STANDARD ROTATION
SHIFTER, BEARING AND SEAL SERVICING
SHIFTER, BEARING AND
SEAL SERVICING

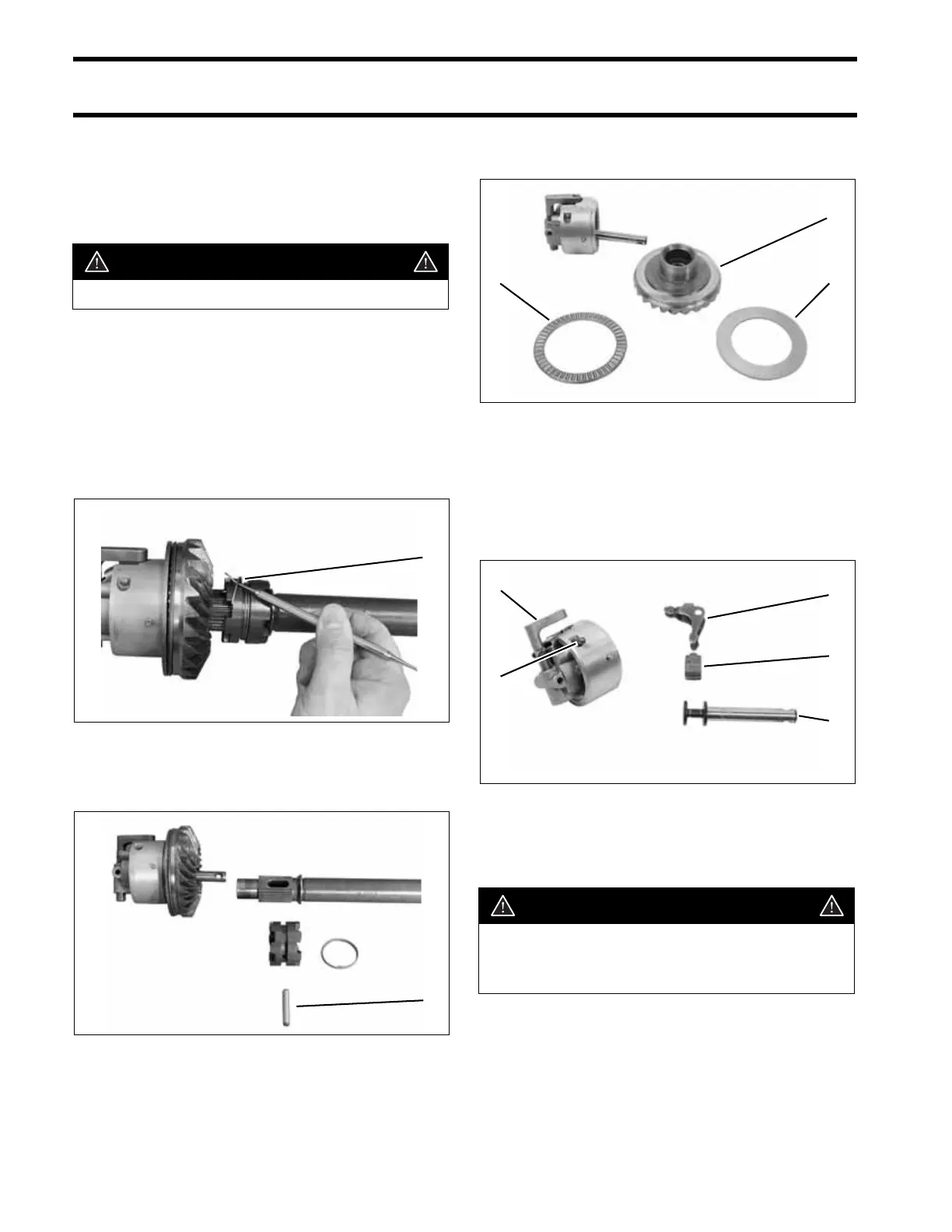

Shift Housing Disassembly
IMPORTANT: The shift housing and bearing
are serviced as an assembly. If either are worn or
damaged, replace the complete assembly.
Insert a suitable tool under one end of the clutch
dog spring and remove it from its groove by
unwrapping it from around the clutch dog. Dis-
card the spring.
Push the pin out of the clutch dog. Remove all
parts.
Remove the gear, thrust bearing, and thrust
washer from the shift housing.
Remove the shift lever pin from the housing.
Remove shift shaft, cradle and shift lever. Move
shifter detent as needed to help ease removal of
parts.
WARNING
Wear safety glasses to avoid injury.
1. Clutch dog spring 006887
1. Pin 006888
1
1
1. Gear
2. Thrust bearing
3. Thrust washer
006889
1. Shift lever pin
2. Shift shaft
3. Cradle
4. Shift lever
5. Shifter detent
006890
WARNING
Wear safety glasses to avoid personal
injury. The detent ball and spring and
come out with great force.
1
32
4
3
2
5
1
