TRIM AND TILT
TRIM AND TILT SERVICE
Manifold and Reservoir
Installation

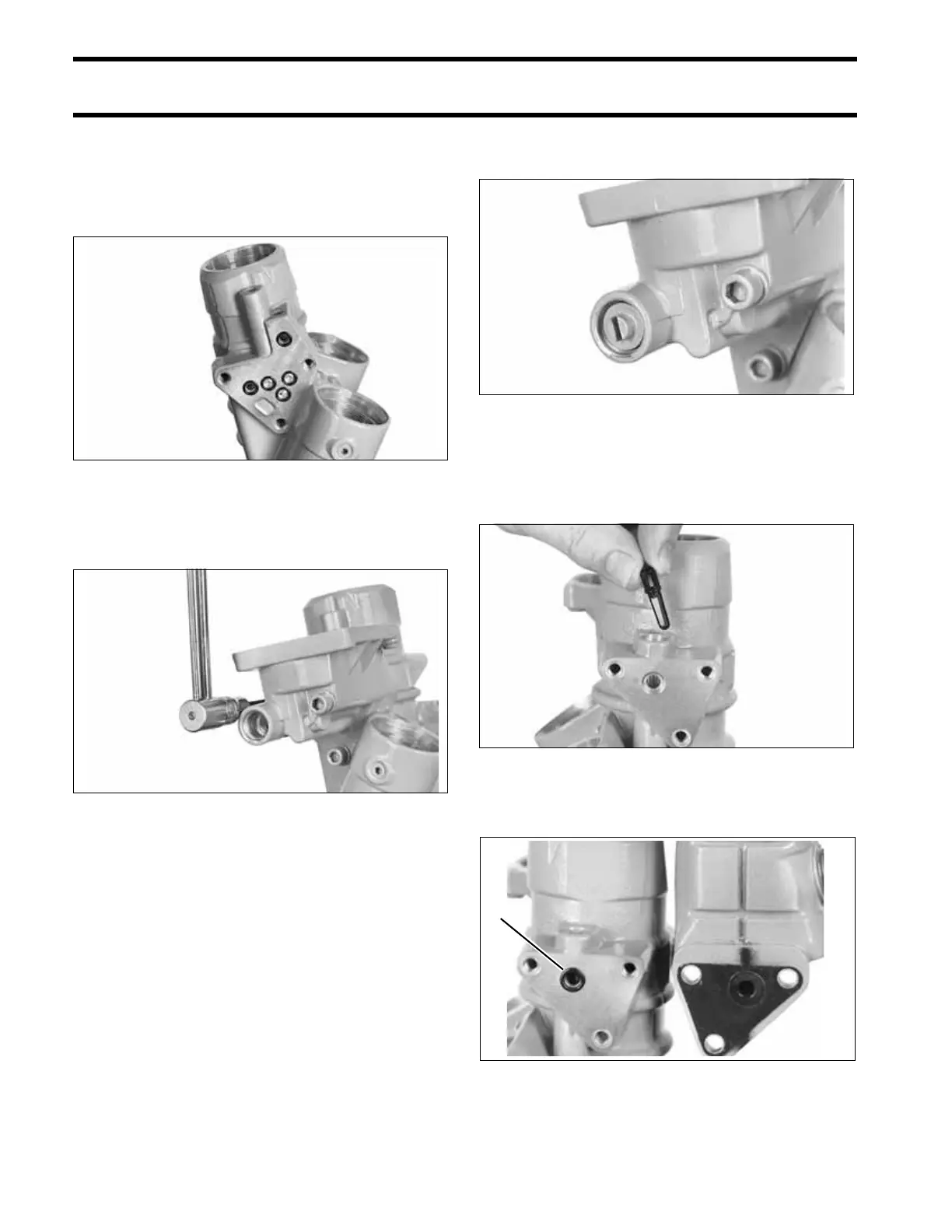

Lubricate five new manifold body O-rings. Place
them in the cylinder body.
Attach the valve pump assembly to the cylinder
body with three Pozidriv screws. Torque screws to
60 to 84 in. lbs. (7 to 9.5 N·m).
Oil and install the manual release valve. Thread
the valve just past the snap ring groove. Do not
install the snap ring at this time. The valve will be
removed later for the Pressure Leakdown Test
on p. 323.
Install the reservoir filter screen in the cylinder
body. Make sure that the screen is seated. Use a
6 mm Allen wrench to install the plug. Tighten the
plug securely.
Lubricate and place a new reservoir O-ring in the
cylinder body.
41849
41850
41851
41863
1. O-ring 41865
