POWERHEAD
POWERHEAD DISASSEMBLY

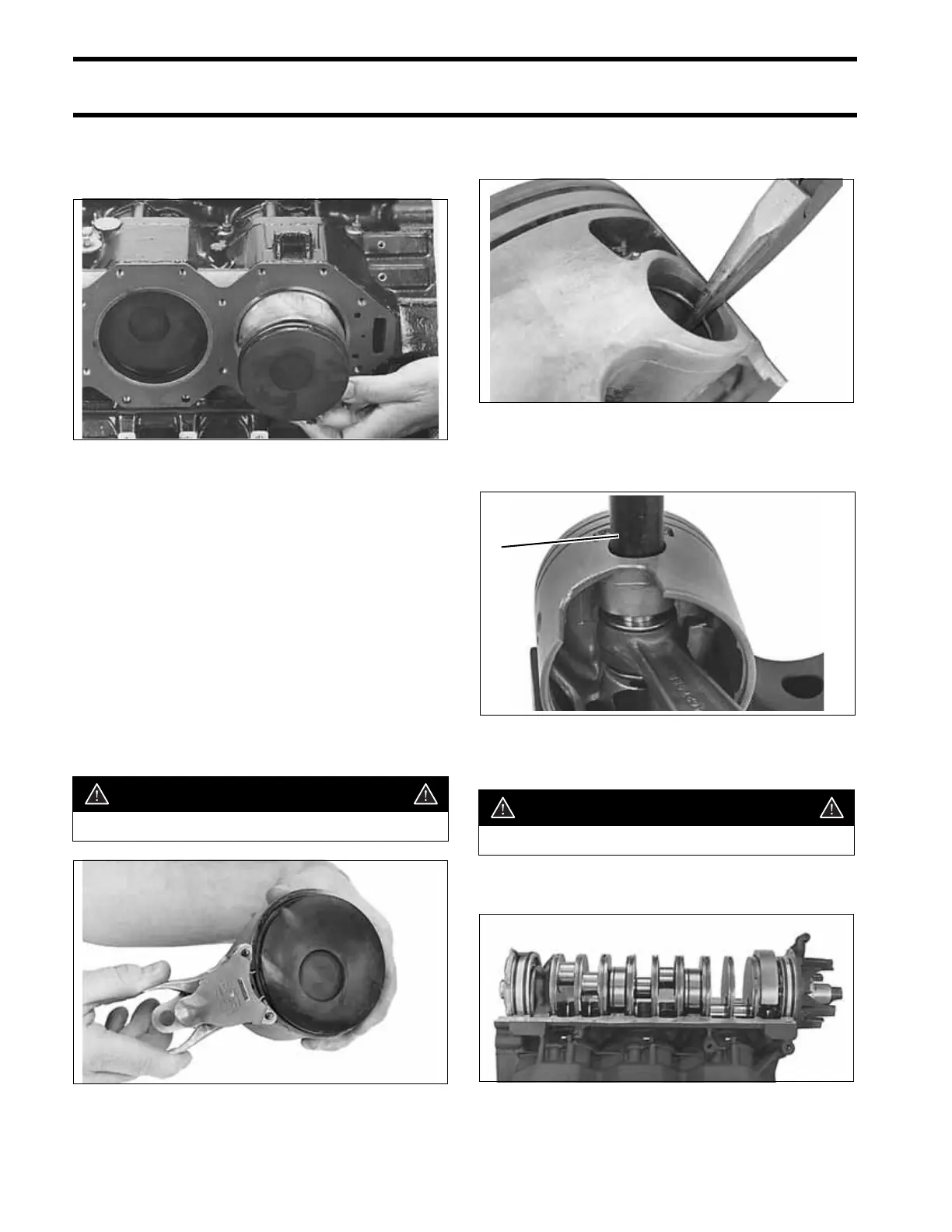

Use one hand to support the piston, and remove
the rod cap screws with your other hand. Remove
each piston and rod assembly.
IMPORTANT: Reattach each rod cap to its rod
as soon as the piston is removed. Each cap is
unique and can only be installed on its mated rod.
Do not allow rod to contact inside surface of cylin-
der or crankshaft.
IMPORTANT: Identify all internal components
so that if reused, they can be reinstalled in their
original positions.
Repeat steps for each remaining piston and con-
necting rod.
Use an appropriate ring expander to remove all
piston rings from pistons. Discard the rings.
Remove wrist pin retaining rings. Discard retaining
rings.
Use Wrist Pin Pressing Tool, P/N 396747, to
remove wrist pin.
Crankshaft Removal
Carefully lift crankshaft straight up and remove
from crankcase.
49432
WARNING
Wear safety glasses to avoid injury.
46519
000689
1. Driver, P/N 396747 31806
WARNING
Wear safety glasses to avoid injury.
31809
1
To Next Page
