291
GEARCASE – STANDARD ROTATION
SHIFTER, BEARING AND SEAL SERVICE
12

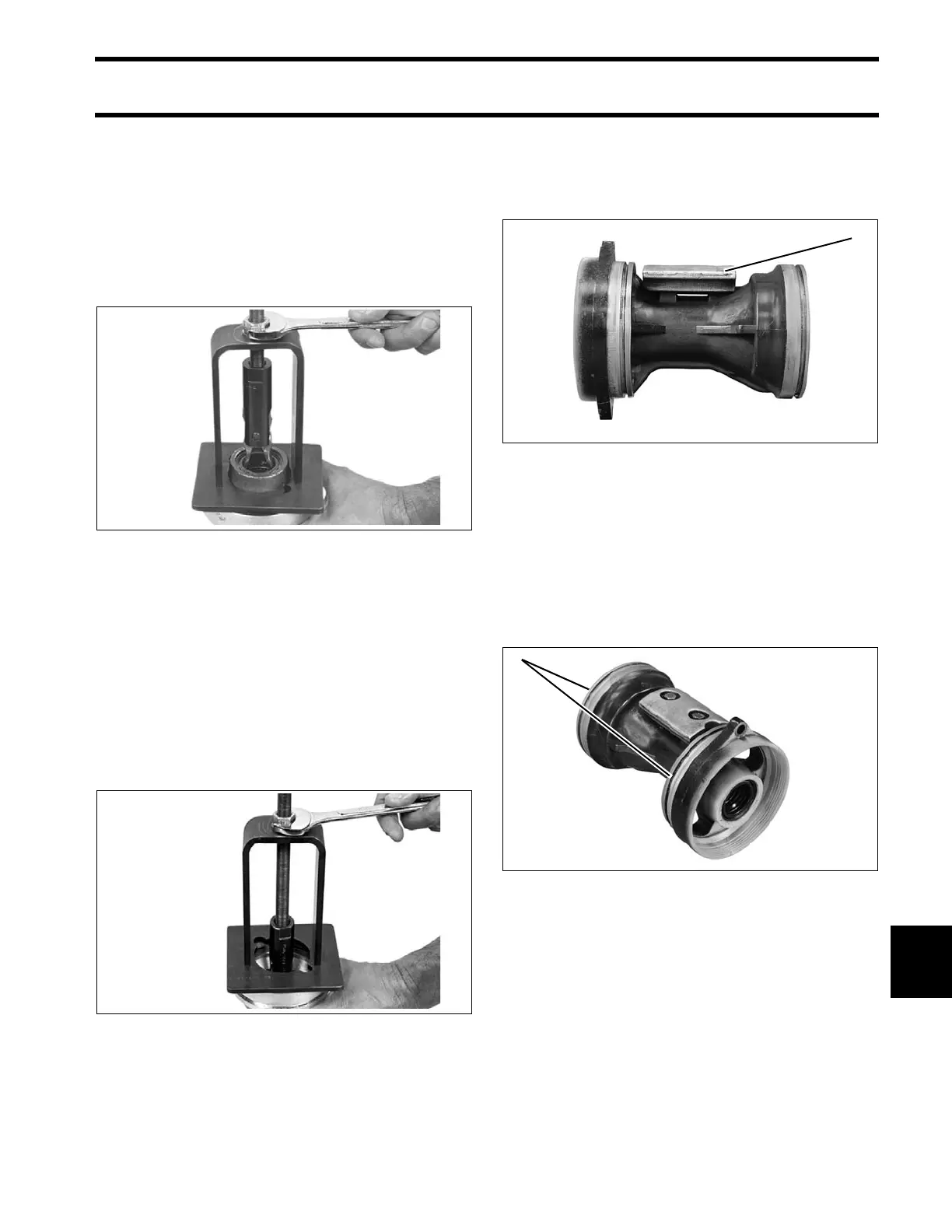

Propeller Shaft Bearing Housing
Service
Rear Seal Removal
Remove seals using Puller Bridge, P/N 432127,
and Small Puller Jaws, P/N 432131. Place the
plate on top of the housing to support the bridge,
and tighten jaws securely behind the inner seal.
Bearing Removal
IMPORTANT: Inspect bearings in place. If a
bearing is removed for any reason, it must be dis-
carded.
Remove either bearing using Puller Bridge,
P/N 432127, and Large Puller Jaws, P/N 432129.
Place the puller plate on top of the housing to sup-
port the bridge, and tighten the jaws securely
behind the bearing.
Inspect the bearing housing anode. Replace
anode if it is reduced to two-thirds of original size.
Tighten screws to a torque of 108 to 132 in. lbs.
(12 to 15 N·m).
Discard the bearing housing O-ring. Clean the
housing and bearings in solvent and dry thor-
oughly. If bearings were not replaced, rotate the
needles to check for freedom of movement.
Inspect O-ring grooves. Sand off any sharp edges
that might cut O-ring. Remove any nicks or burrs
on front of bearing housing.
13520
13522
1. Anode 006897
1. O-ring groove 006898
