310
GEARCASE – COUNTER ROTATION
SHIFTER, BEARING AND SEAL SERVICING
SHIFTER, BEARING AND
SEAL SERVICING

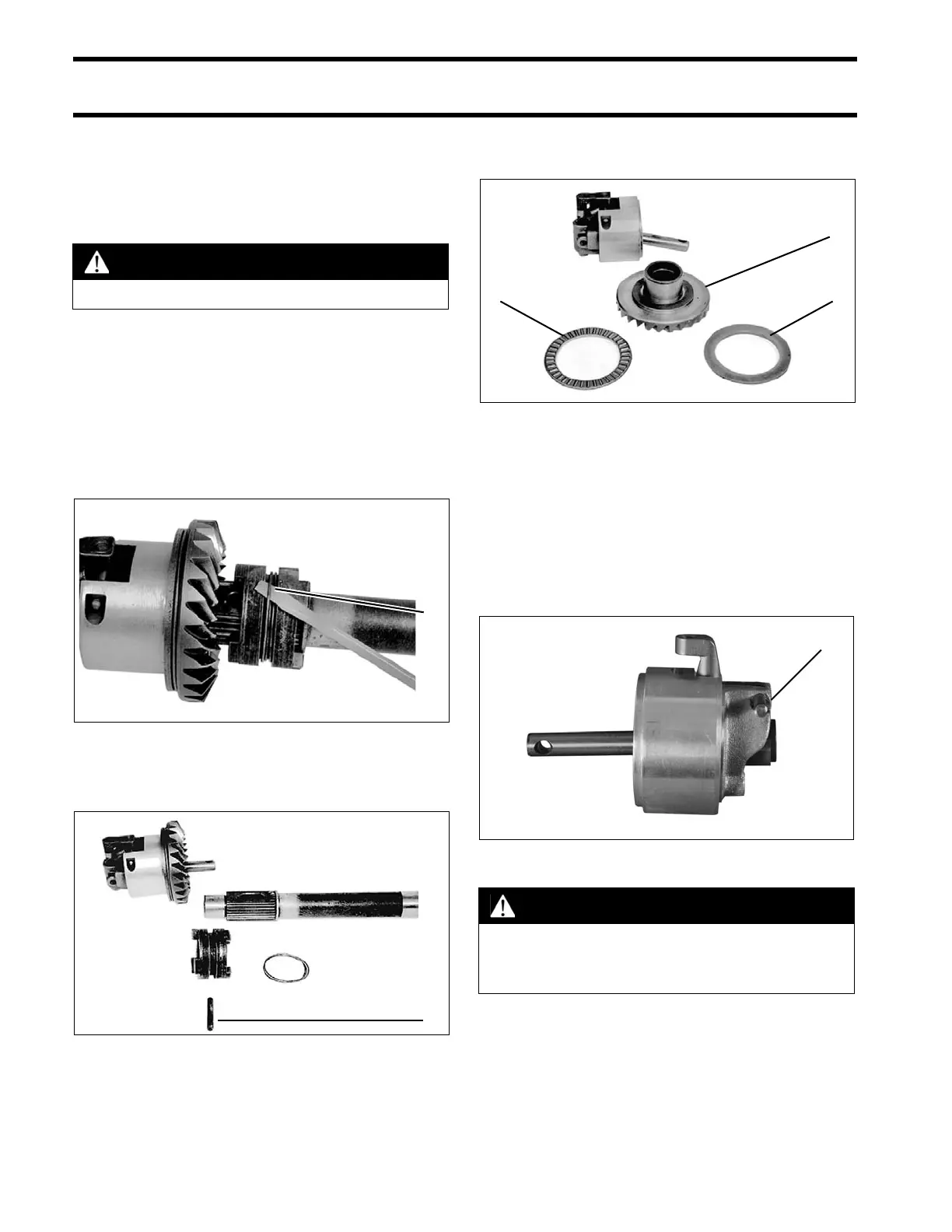

Shift Housing Disassembly
IMPORTANT: The shift housing and bearing are
serviced as an assembly. If either are worn or
damaged, replace the complete assembly.
Insert a suitable tool under one end of the clutch
dog spring and remove it from its groove by
unwrapping it from around the clutch dog. Dis-
card the spring.
Push the pin out of the clutch dog. Remove all
parts.
Remove the gear, thrust bearing, and thrust
washer from the shift housing.
IMPORTANT: The shift housing supports the
reverse gear on counter rotation gearcases.
Remove the shift lever pin from the housing.
Remove shift shaft, cradle and shift lever. Move
shifter detent as needed to help ease removal of
parts.
WARNING
Wear safety glasses to avoid injury.
1. Clutch dog spring COA3560
1. Pin COA3561
1. Gear
2. Thrust bearing
3. Thrust washer
COA3562
1. Pin 006861
WARNING
Wear safety glasses to avoid personal
injury. The detent ball and spring and
come out with great force.
