OUTBOARD INSTALLATION
TRANSOM MEASURING AND DRILLING
2
Before drilling any mounting holes:
• Make sure the hole locations provide enou gh
clearance for mounting bolts and washers.
• Check the inside area of the transom for
obstructions.
• Check transom height(s) at centerlines.
Drill fou r ½ in. (1 3 mm) mou nting hole s in the
appropriate locations.
IMPORTANT: Be sure to drill the required holes
perpendicular to transom surface.
40 HP, MANUAL TILT MODELS
25–30 HP, MANUAL TILT MODELS
15 HP, POWER TILT MODELS
Center the ou tboard on the tra nsom (or mounting
bracket) and tighten clamp screws by hand.
Use each stern b racket’s mounting h oles as a
guide to drill holes through the transom.
• 40 HP models require four 5/16 in. (8 mm) holes
• 25–30 HP mo dels require two 5/ 16 in . (8 mm)
holes
• 15 HP m odels require f our 5/16 i n. (8 mm )
holes.

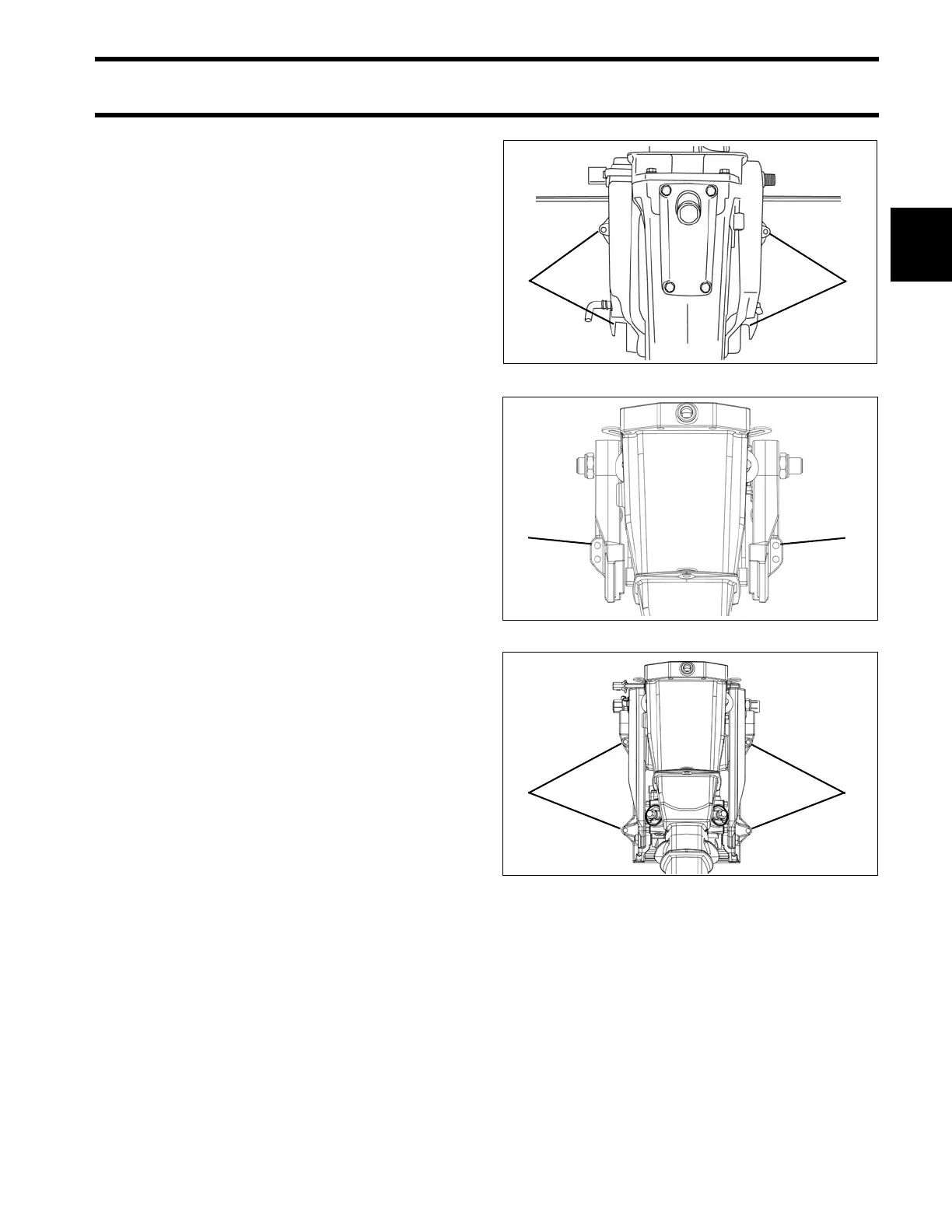

40 HP Models 002215
25 – 30 HP Models 007998
15 HP Models 007999
