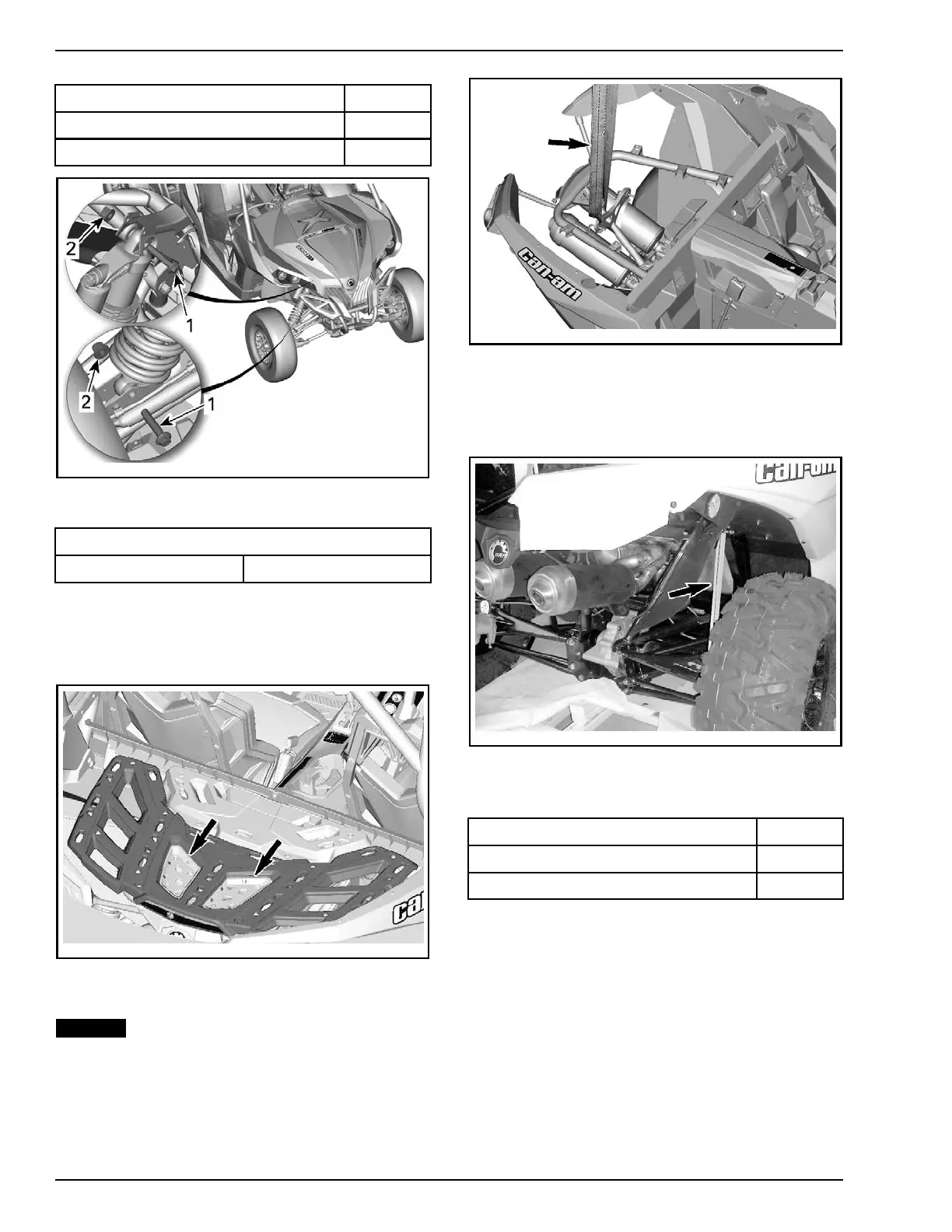

PARTS TO BE INSTALLED
PDI KIT PARTS QTY
M12 x 60 Flange hexagonal bolt 2
M12 flange elastic nuts 2
tbl2014-007-202_a
TYPICAL
1. M12 x 60 Flange hexagonal bolts
2. M12 flange elastic nuts
TIGHTENING TORQUE
Shock abso
rber nuts
54 N•m (40 lbf•ft)
4. Lower vehicle.
Rear Shoc
k Absorber Installation
1. Remove the small covers on rear cargo rack.
tbl2013-009-121_a
2. Install a lifting strap to rear frame member
where shown.
NOTICE
Do not use a chain. It might damage
the cargo rack.
tbl2014-007-203_a
LIFTING STRA P — C ARG O RACK REMOVED FOR CLARITY
PURPOSE ONLY
3. Safely lift rear of vehicle using a hoist.
4. Remove the suspension brackets. Discard
bolts and nuts.
tbl2013-009-025_a
TYPICAL RH S IDE SHOWN
5. Instal
l shock absorbers. Place reservoir, re-
bound a
djuster and bolt heads outwards.
PDI KIT PARTS QTY
M12 x 60 Flange hexagonal bolts 2
M12 flange elastic nuts 2
10 / 34 2014-1 PREDELIVERY
